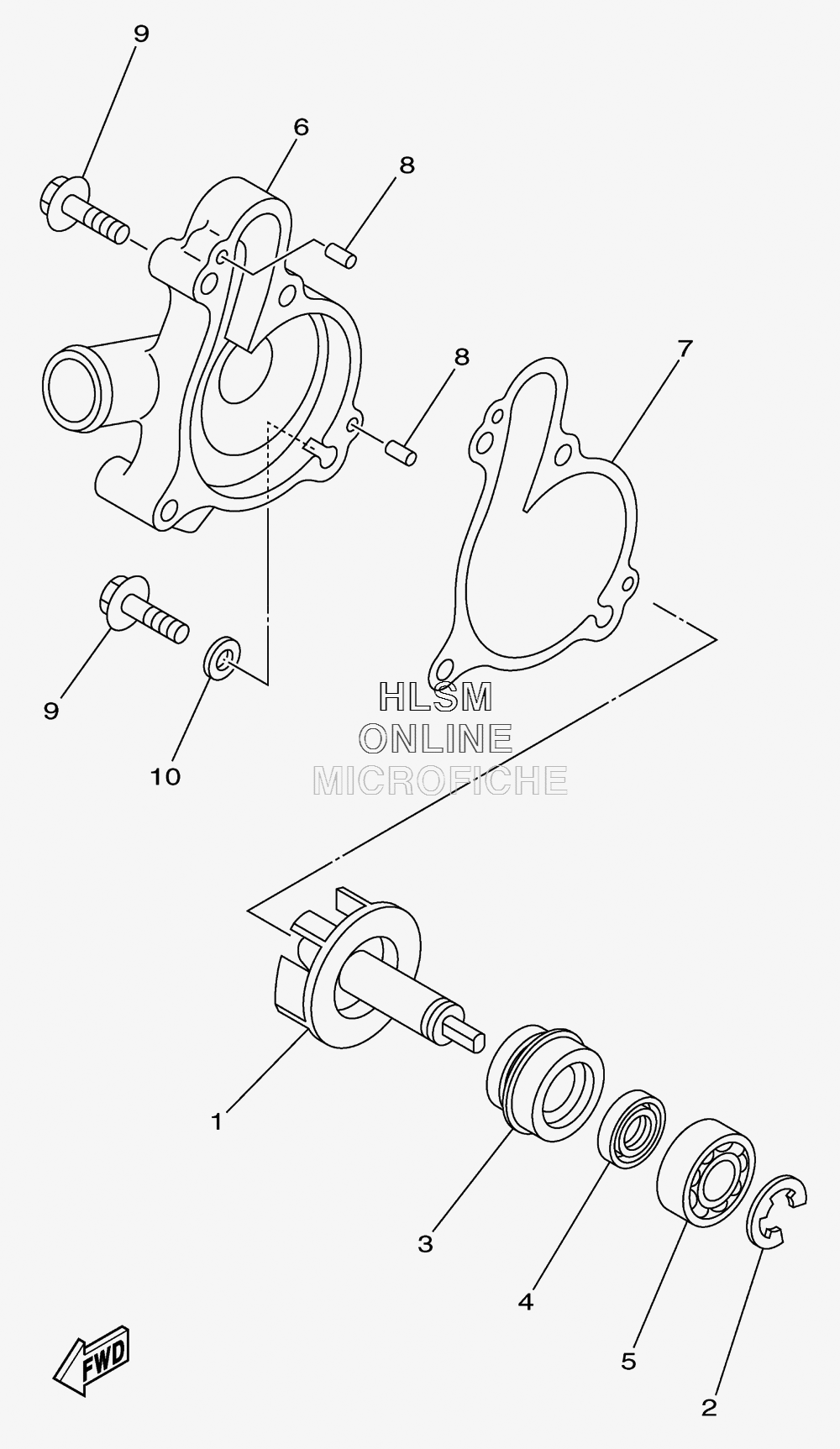

WATER PUMP ASSY для Yamaha YFZ450R - 2010 года выпуска
-
№АртикулНазвание
-
118P-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
299009-12400-00 CIRCLIPCIRCLIP
-
34C8-12438-00-00 SEAL, MECHANICALSEAL, MECHANICAL
-
493101-12173-00 OIL SEALOIL SEAL
-
593306-00106-00 BEARINGBEARING
-
618P-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
718P-12428-00-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
893604-10011-00 PIN, DOWELPIN, DOWEL
-
995022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-06014-00 GASKETGASKET
