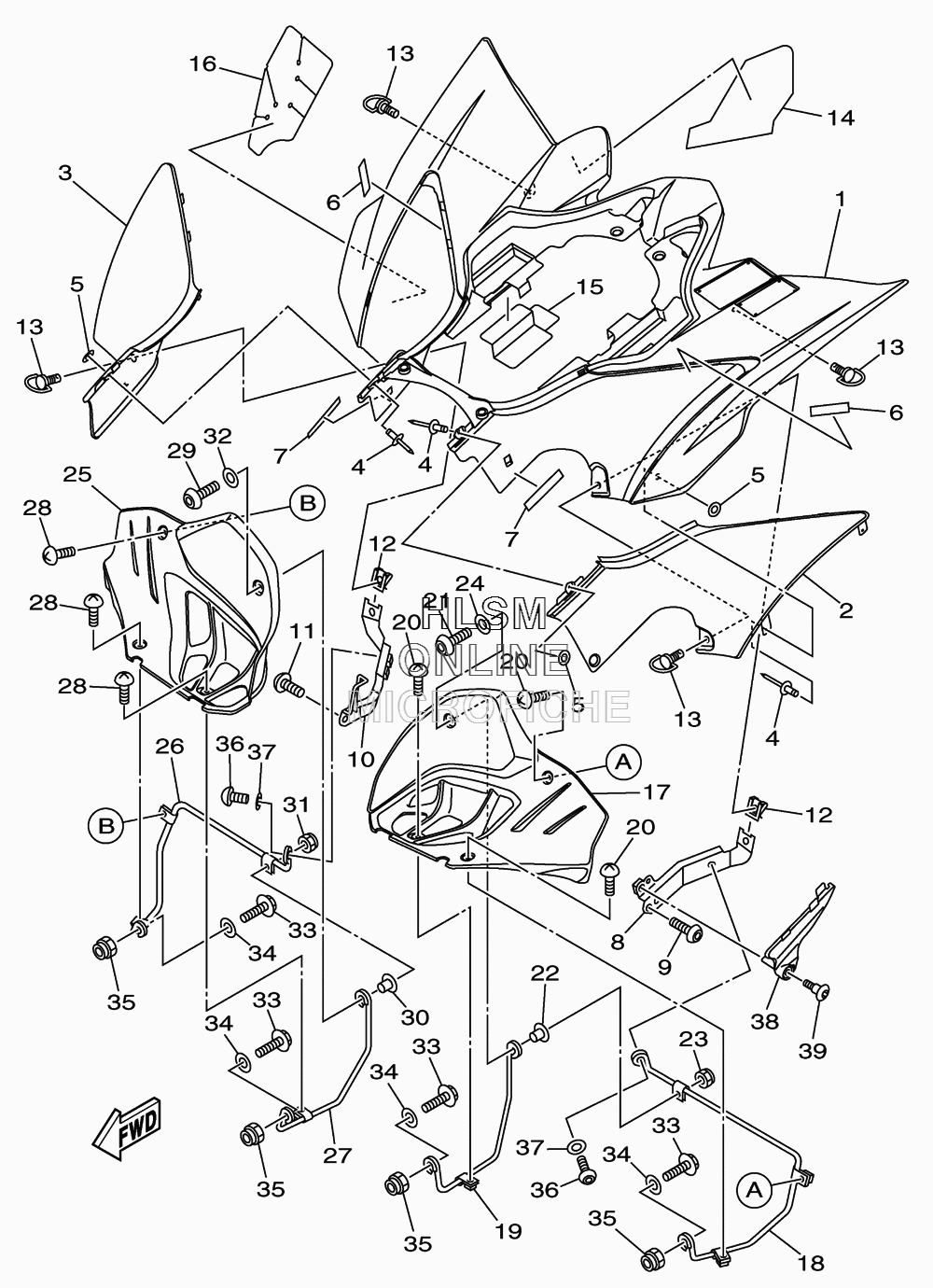

FENDER - REAR для Yamaha YFZ450X BILL BALANCE EDITION - 2010 года выпуска
-
№АртикулНазвание
-
118P-W2161-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
218P-2476U-00-00 PROTECTOR,1PROTECTOR,1
-
318P-2476V-00-00 PROTECTOR,2PROTECTOR,2
-
490267-32004-00 RIVET, BLINDRIVET, BLIND
-
590201-03008-00 WASHER, PLATEWASHER, PLATE
-
618P-2173U-00-00 TAPE 2TAPE 2
-
718P-2173T-00-00 TAPE 1TAPE 1
-
818P-21643-00-00 STAY, FENDER 3STAY, FENDER 3
-
992012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1018P-21644-00-00 STAY, FENDER 4STAY, FENDER 4
-
1192012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
124XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
133FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
1418P-21652-00-00 PROTECTORPROTECTOR
-
1518P-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
1618P-2163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
1718P-21621-00-00 FLAPFLAP
-
1818P-2164F-00-00 STAY 1STAY 1
-
1918P-2164H-00-00 STAY 3STAY 3
-
2090154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2192012-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2290387-06205-00 COLLARCOLLAR
-
2395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490201-06076-00 WASHER, PLATEWASHER, PLATE
-
2518P-21691-00-00 FLAPFLAP
-
2618P-2164G-00-00 STAY 2STAY 2
-
2718P-2164J-00-00 STAY 4STAY 4
-
2890154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2992012-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3090387-06205-00 COLLARCOLLAR
-
3195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-06076-00 WASHER, PLATEWASHER, PLATE
-
3395822-08025-00 BOLT, FLANGEBOLT, FLANGE
-
3490201-08048-00 WASHER, PLATEWASHER, PLATE
-
3595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3692012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3790201-08043-00 WASHER, PLATEWASHER, PLATE
-
3818P-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3990109-06249-00 BOLTBOLT
