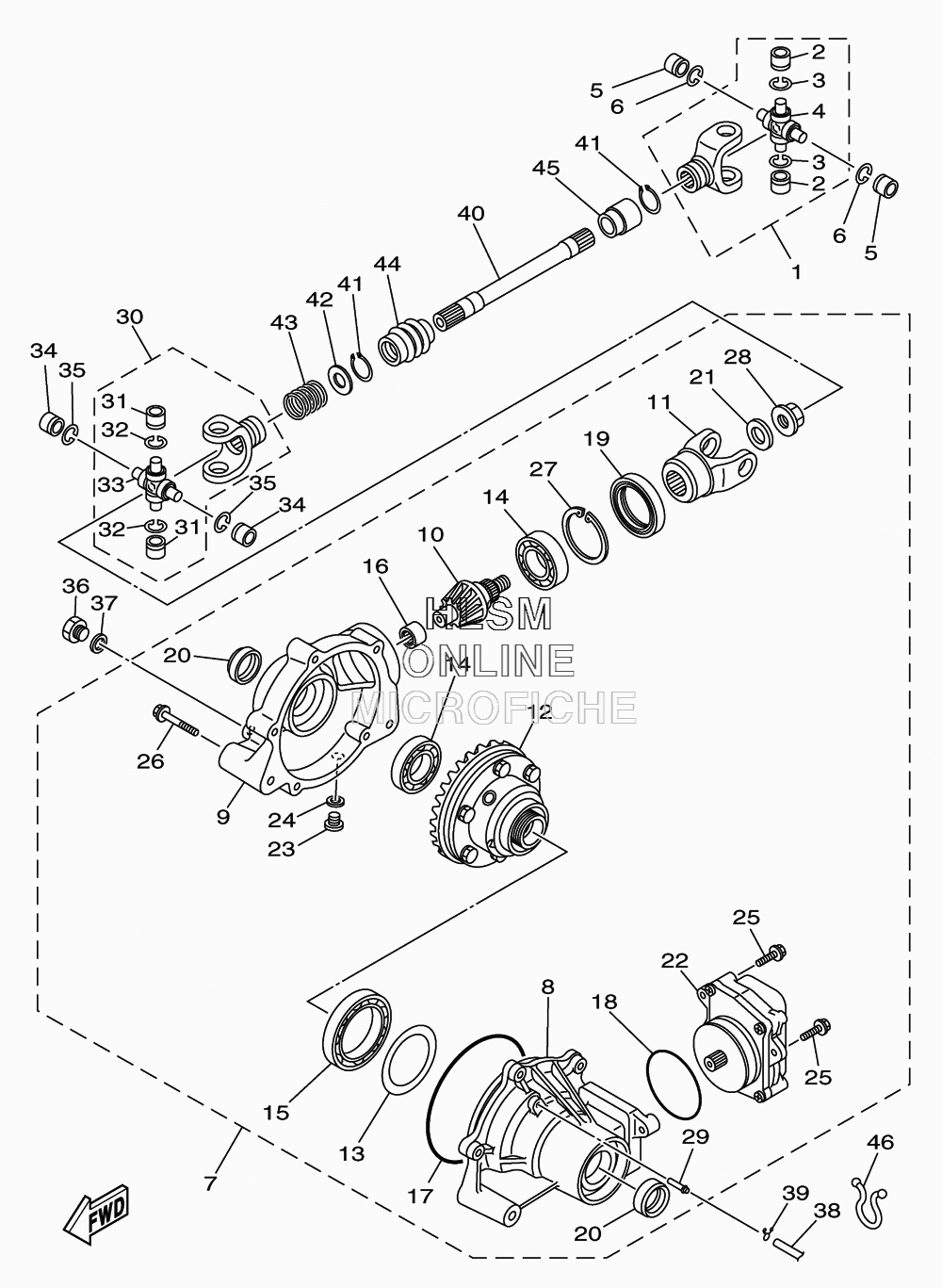

DIFFERENTIAL - FRONT для Yamaha BIG BEAR 400 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
12P5-46108-01-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
293399-99948-00 BEARINGBEARING
-
393440-20088-00 CIRCLIPCIRCLIP
-
45GT-46187-00-00 SPIDERSPIDER
-
593399-99948-00 BEARINGBEARING
-
693440-20088-00 CIRCLIPCIRCLIP
-
74S1-46160-02-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
83B4-46162-01-00 HOUSING, BEARING 2HOUSING, BEARING 2
-
93B4-46161-00-00 HOUSING, SHAFT DRIVE 2HOUSING, SHAFT DRIVE 2
-
103B4-46141-00-00 PINION, DRIVE 2PINION, DRIVE 2
-
114S1-46146-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
123B4-46470-02-00 LIMITED SLIP DIFF. ASSYLIMITED SLIP DIFF. ASSY
-
133B4-46117-20-00 SHIM, RING GEAR (0.3T)SHIM, RING GEAR (0.3T)
-
133B4-46117-10-00 SHIM, RING GEAR (0.2T)SHIM, RING GEAR (0.2T)
-
133B4-46117-30-00 SHIM, RING GEAR (0.4T)SHIM, RING GEAR (0.4T)
-
133B4-46117-00-00 SHIM, RING GEAR (0.1T)SHIM, RING GEAR (0.1T)
-
1493306-00613-00 BEARINGBEARING
-
153B4-46164-00-00 BEARING 1BEARING 1
-
163B4-46166-00-00 BEARING 3BEARING 3
-
173B4-46134-00-00 O-RING 1O-RING 1
-
183B4-46135-00-00 O-RING 2O-RING 2
-
1993105-46001-00 OIL SEALOIL SEAL
-
203B4-46163-00-00 SEAL, OIL 1SEAL, OIL 1
-
213B4-47359-00-00 WASHERWASHER
-
223B4-4616A-01-00 SERVO MOTOR COMPSERVO MOTOR COMP
-
2390340-10001-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2490430-10003-00 GASKETGASKET
-
2595812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2695812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
273B4-46142-00-00 RING,HOLE SNAP 1RING,HOLE SNAP 1
-
284WV-46145-10-00 NUT 1NUT 1
-
295GH-46293-00-00 TUBETUBE
-
302P5-46108-01-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
3193399-99948-00 BEARINGBEARING
-
3293440-20088-00 CIRCLIPCIRCLIP
-
335GT-46187-00-00 SPIDERSPIDER
-
3493399-99948-00 BEARINGBEARING
-
3593440-20088-00 CIRCLIPCIRCLIP
-
3690340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
37214-11198-01-00 GASKETGASKET
-
3890445-07809-00 HOSE (L750)HOSE (L750)
-
3990467-07029-00 CLIPCLIP
-
404S1-G6173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
4199009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
4290201-20266-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
4390501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
445GT-46136-00-00 SEAL 1SEAL 1
-
455GT-46137-00-00 SEAL 2SEAL 2
-
4690464-14800-00 CLAMPCLAMP
