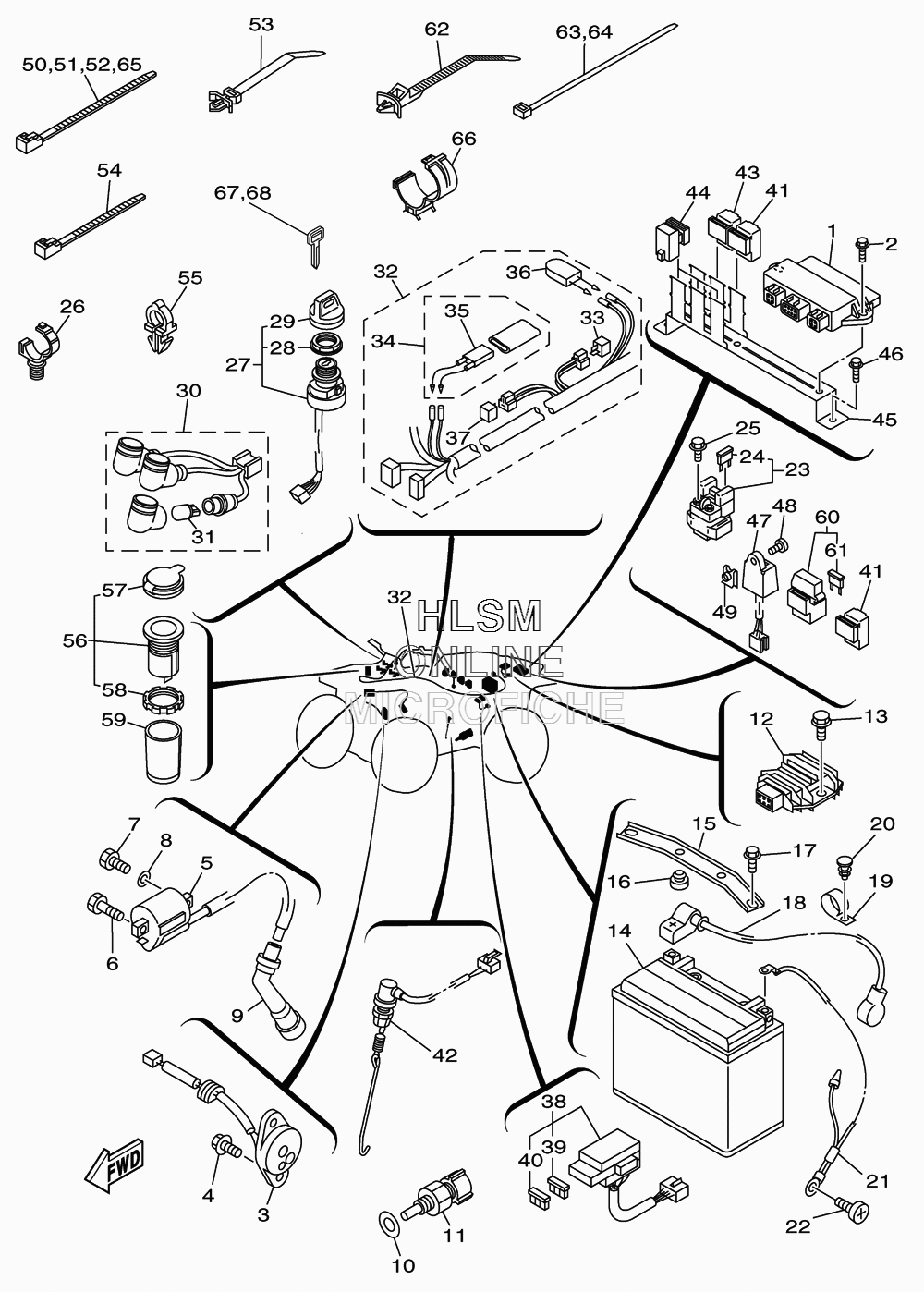

ELECTRICAL для Yamaha BIG BEAR 400 4WD - 2011 года выпуска
-
№АртикулНазвание
-
14S1-85540-01-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
295802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
34KB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
490119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55FU-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
690109-06865-00 BOLTBOLT
-
797002-06020-00 BOLTBOLT
-
892902-06600-00 WASHER, PLATEWASHER, PLATE
-
9371-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
1090201-12172-00 WASHER, PLATEWASHER, PLATE
-
114GB-83591-10-00 THERMO UNITTHERMO UNIT
-
125GT-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1390105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
145FU-H2100-20-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
155FU-H2128-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
1622W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1790105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
185FU-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1990464-12801-00 CLAMPCLAMP
-
2090338-05829-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
215FU-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2297702-60416-00 SCREW, TAPPINGSCREW, TAPPING
-
234SV-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
241AE-82151-00-00 FUSE (30A-BL)FUSE (30A-BL)
-
2595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2690464-12830-00 CLAMPCLAMP
-
275KM-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
283HN-82569-00-00 NUT, MAIN SWITCHNUT, MAIN SWITCH
-
293HN-82579-00-00 CAP, KEYCAP, KEY
-
304S1-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
315GH-83516-00-00 BULB (14V-1.7W)BULB (14V-1.7W)
-
324S1-82590-40-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
333WP-81980-00-00 DIODE ASSYDIODE ASSY
-
343D5-82180-00-00 CIRCUIT BREAKER ASSYCIRCUIT BREAKER ASSY
-
353D5-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
365FU-82560-10-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
374WA-81980-00-00 DIODE ASSYDIODE ASSY
-
384S1-82170-10-00 FUSE BOX ASSYFUSE BOX ASSY
-
3942X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
4036Y-82151-00-00 FUSE (15A-BL)FUSE (15A-BL)
-
4129U-81950-93-00 RELAY ASSYRELAY ASSY
-
425FU-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
431UY-81950-92-00 RELAY ASSYRELAY ASSY
-
445DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
454S1-F141E-00-00 BRACKET 2BRACKET 2
-
4690105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
474SH-86510-10-00 MOTOR CONTROL UNIT ASSYMOTOR CONTROL UNIT ASSY
-
4898902-06016-00 SCREW, BINDSCREW, BIND
-
4990183-06053-00 NUT, SPRINGNUT, SPRING
-
5090464-40825-00 CLAMPCLAMP
-
5190464-40825-00 CLAMPCLAMP
-
5290464-40825-00 CLAMPCLAMP
-
5390464-12830-00 CLAMPCLAMP
-
5490464-31827-00 CLAMPCLAMP
-
5590464-10833-00 CLAMPCLAMP
-
565FU-H1920-10-00 TERMINAL ASSYTERMINAL ASSY
-
575FU-H1942-10-00 COVERCOVER
-
585FU-H191B-10-00 NUTNUT
-
595FU-H2599-01-00 COVER, CONNECTERCOVER, CONNECTER
-
604S1-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
6142X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
6290464-25800-00 CLAMPCLAMP
-
6390464-48800-00 CLAMPCLAMP
-
6490464-48800-00 CLAMPCLAMP
-
6590464-40825-00 CLAMPCLAMP
-
6690464-25843-00 CLAMPCLAMP
-
6790890-56001-00 KEY BLANK (A-TYPE)KEY BLANK (A-TYPE)
-
6890890-56002-00 KEY BLANK (B-TYPE)KEY BLANK (B-TYPE)
