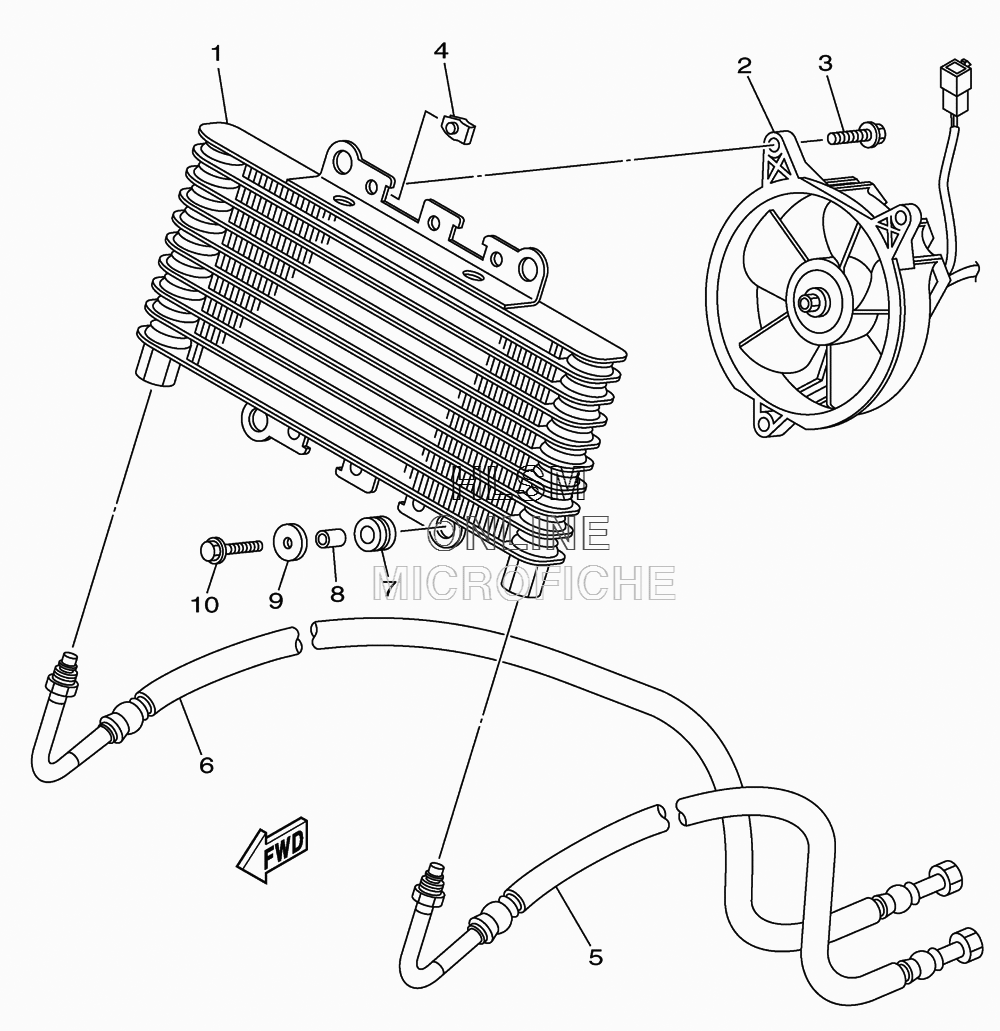

OIL COOLER для Yamaha BIG BEAR 400 4WD - 2011 года выпуска
-
№АртикулНазвание
-
15UH-E3480-00-00 ELEMENT, OIL COOLERELEMENT, OIL COOLER
-
25UH-E2405-10-00 BLOWER ASSYBLOWER ASSY
-
35UH-E3573-00-00 BOLT 1BOLT 1
-
45UH-E3577-00-00 CLIPCLIP
-
54S1-E3464-00-00 HOSE, OIL 1HOSE, OIL 1
-
64S1-E3465-00-00 HOSE, OIL 2HOSE, OIL 2
-
790480-15235-00 GROMMETGROMMET
-
890387-06113-00 COLLARCOLLAR
-
990209-06012-00 WASHERWASHER
-
1090105-06833-00 BOLT, FLANGEBOLT, FLANGE
