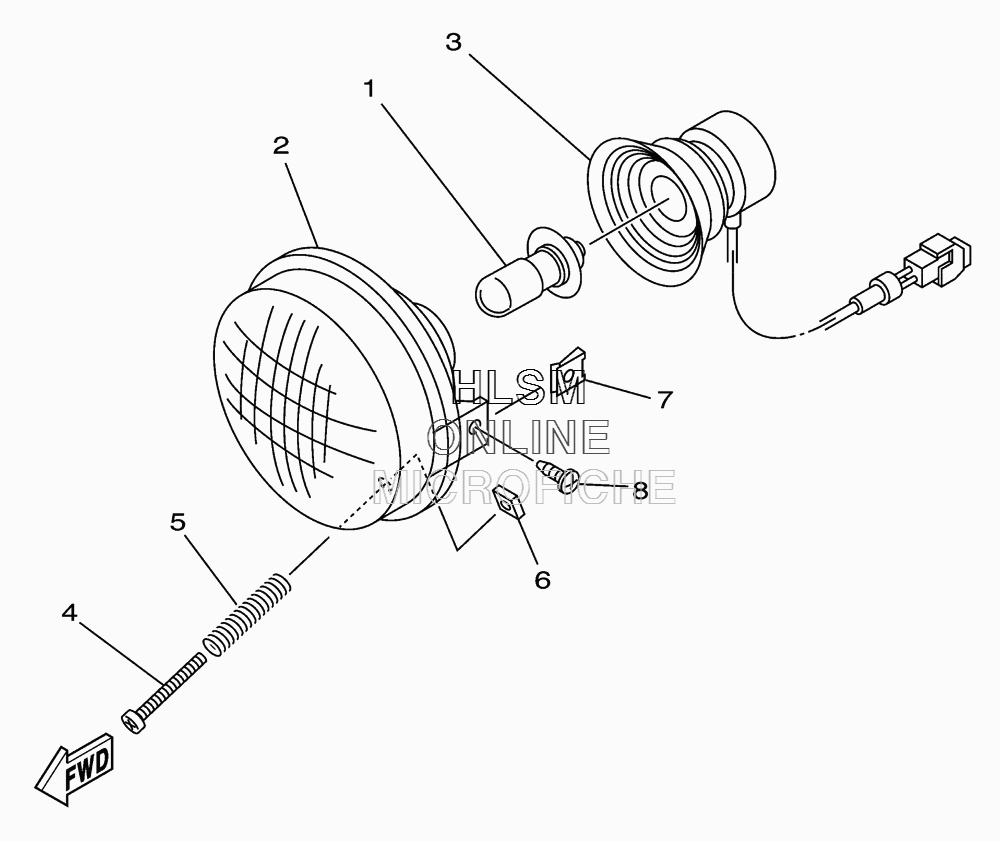

HEADLIGHT для Yamaha GRIZZLY 350 2WD - 2011 года выпуска
-
№АртикулНазвание
-
14KB-84314-01-00 BULB (12V-30/30W)BULB (12V-30/30W)
-
25KM-84320-01-00 LENS ASSYLENS ASSY
-
35EH-84340-00-00 SOCKET CORD ASSY 1SOCKET CORD ASSY 1
-
498502-03540-00 SCREW, PAN HEADSCREW, PAN HEAD
-
52GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
790183-050A8-00 NUT, SPRINGNUT, SPRING
-
898902-05016-00 SCREW, BINDSCREW, BIND
