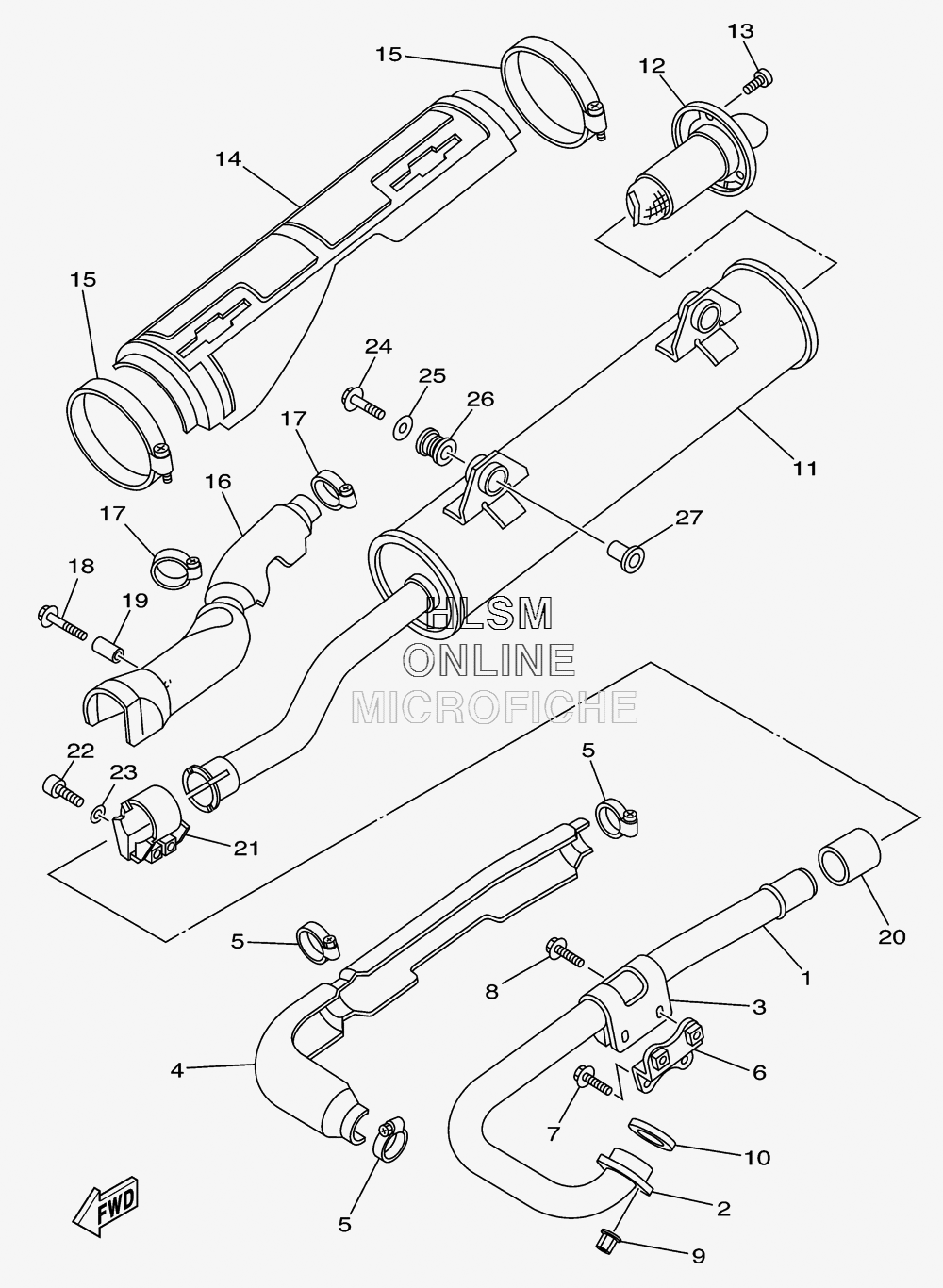

EXHAUST для Yamaha GRIZZLY 350 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
15UH-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
25UH-E4612-00-00 NUT, RINGNUT, RING
-
35UH-E477R-00-00 BAND 1BAND 1
-
45UH-E4628-01-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
55UH-E477T-00-00 BAND 2BAND 2
-
65UH-E477K-01-00 PLATE 1PLATE 1
-
795812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
895812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
990179-06668-00 NUTNUT
-
103GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
115UH-E4711-00-00 MUFFLER 1MUFFLER 1
-
125ND-E4752-00-00 PIPE, OUTLETPIPE, OUTLET
-
135ND-E4719-00-00 BOLT, MUFFLERBOLT, MUFFLER
-
145UH-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
155ND-E4788-00-00 BAND, SILENCERBAND, SILENCER
-
165UH-E4728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
175UH-E477T-00-00 BAND 2BAND 2
-
189580P-06035-00 BOLT, FLANGEBOLT, FLANGE
-
195UH-E4638-00-00 COLLARCOLLAR
-
205ND-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
215ND-E4715-00-00 BAND, MUFFLERBAND, MUFFLER
-
225ND-E4777-00-00 BOLTBOLT
-
235ND-E4759-00-00 WASHERWASHER
-
2495822-10040-00 BOLT, FLANGEBOLT, FLANGE
-
2590201-10056-00 WASHER, PLATEWASHER, PLATE
-
265ND-E4737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2790387-10636-00 COLLARCOLLAR
