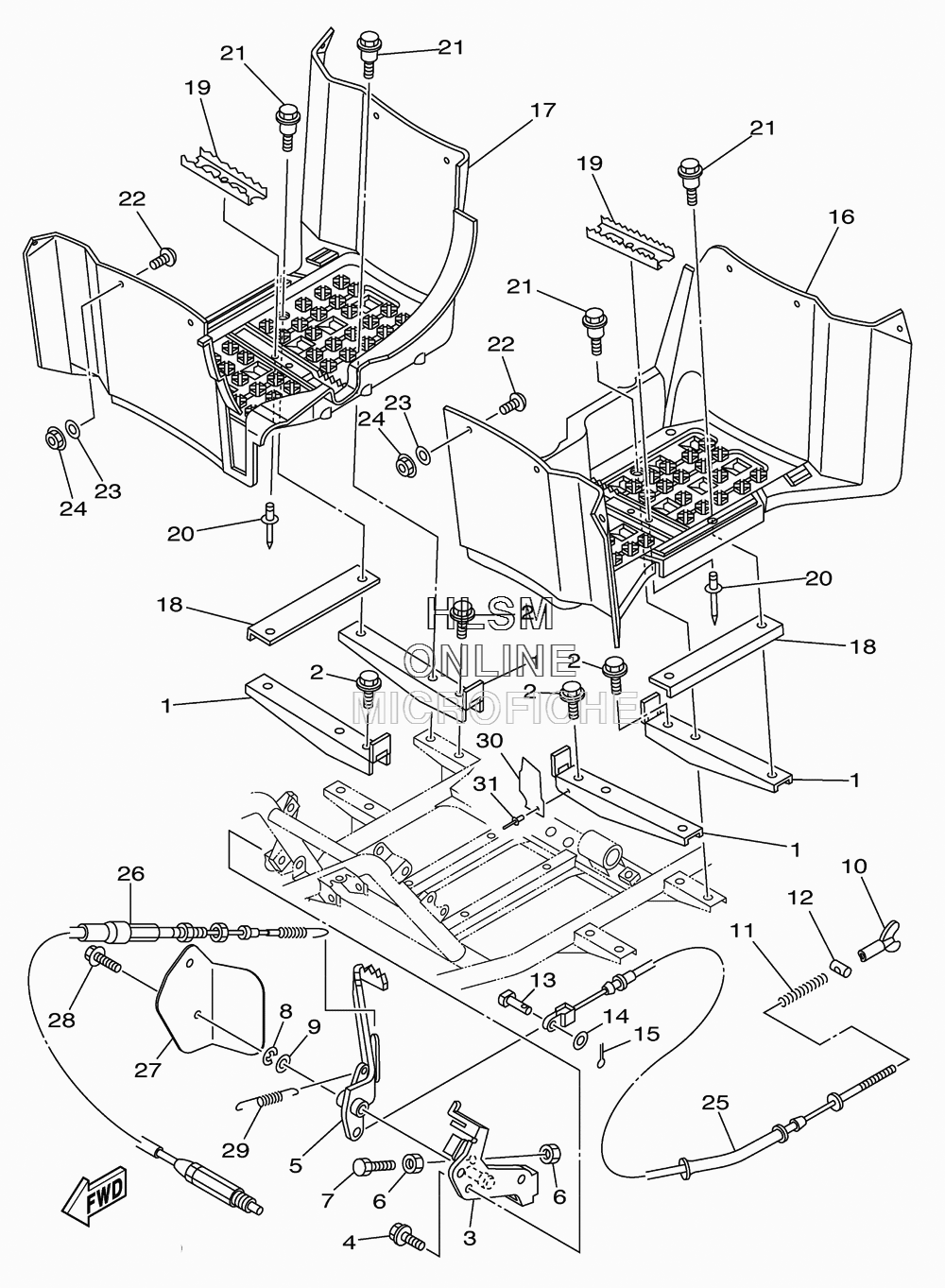

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY 350 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
15ND-F7471-01-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
35TE-F7412-11-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
495812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
55TE-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
695312-06700-00 NUT (JN5)NUT (JN5)
-
797012-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
893430-10015-00 CIRCLIPCIRCLIP
-
990201-14023-00 WASHER, PLATEWASHER, PLATE
-
1020E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
1190501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1290249-12008-00 PINPIN
-
1390240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1490201-08066-00 WASHER, PLATEWASHER, PLATE
-
1591402-20020-00 PIN, COTTERPIN, COTTER
-
165ND-F7453-01-00 COVER 1COVER 1
-
175ND-F7463-01-00 COVER 2COVER 2
-
185ND-F7445-00-00 PLATE 1PLATE 1
-
195UH-F741A-10-00 ARM 1ARM 1
-
2090267-489U9-00 RIVET, BLINDRIVET, BLIND
-
2190109-06262-00 BOLTBOLT
-
2290149-05299-00 SCREWSCREW
-
2390201-05042-00 WASHER, PLATEWASHER, PLATE
-
2495702-05300-00 NUT, FLANGE (4GB)NUT, FLANGE (4GB)
-
255TE-26361-00-00 CABLE, BRAKECABLE, BRAKE
-
265GH-2637F-10-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
275UH-F7491-01-00 PROTECTORPROTECTOR
-
2890119-06244-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990506-12403-00 SPRING, TENSIONSPRING, TENSION
-
305UH-F7445-01-00 PLATE 1PLATE 1
-
3190267-489U1-00 RIVET,BLINDRIVET,BLIND
