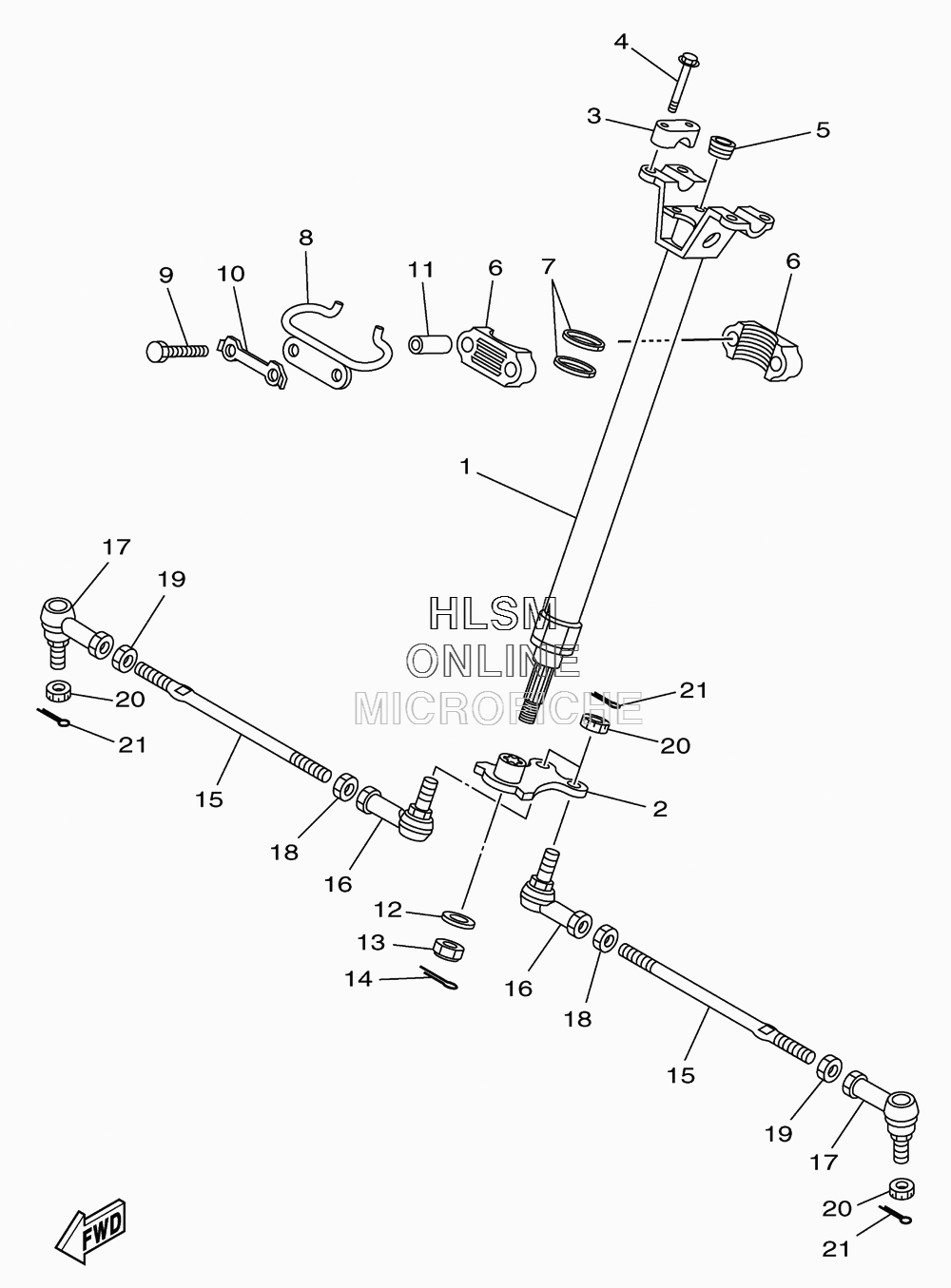

STEERING для Yamaha GRIZZLY 350 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
15ND-F3813-10-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
25ND-F3816-12-00 ARM, PITMANARM, PITMAN
-
38K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
495812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
590336-28053-00 PLUG, TAPERPLUG, TAPER
-
637S-F3812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
793112-31800-00 OIL SEALOIL SEAL
-
85ND-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
997022-08060-00 BOLT,HEXAGONBOLT,HEXAGON
-
101UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1190387-090R0-00 COLLARCOLLAR
-
1290201-14021-00 WASHER, PLATEWASHER, PLATE
-
1390185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1491402-20025-00 PIN, COTTERPIN, COTTER
-
1537S-23831-00-00 ROD, TIEROD, TIE
-
1637S-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
174S2-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1837S-23833-00-00 NUT 1NUT 1
-
1937S-23834-00-00 NUT 2NUT 2
-
2090171-12001-00 NUT, CASTLENUT, CASTLE
-
2191402-25020-00 PIN, COTTERPIN, COTTER
