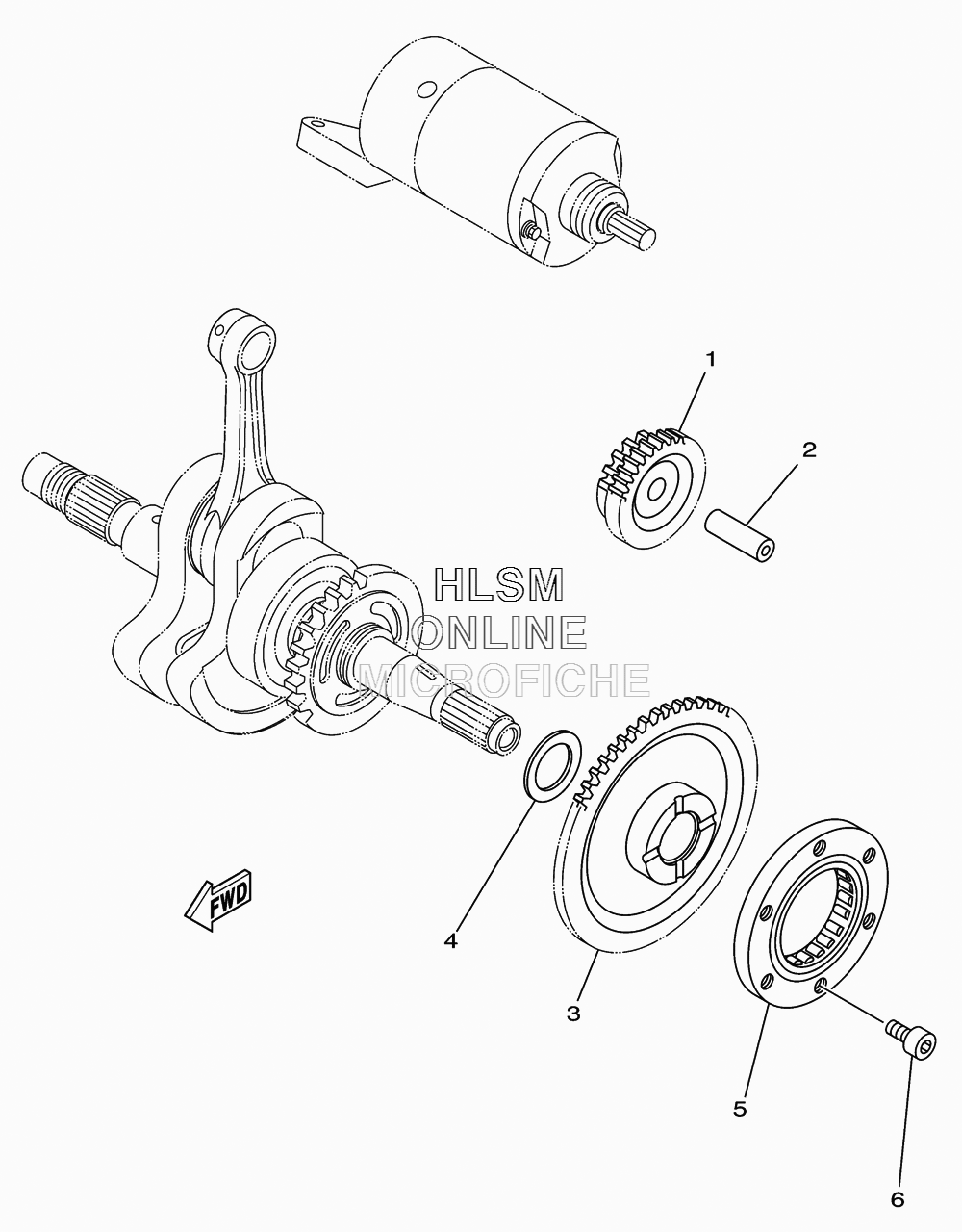

STARTER CLUTCH для Yamaha GRIZZLY 350 IRS 4WD - 2011 года выпуска
-
№АртикулНазвание
-
15UH-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
21VJ-15521-00-00 SHAFT 1SHAFT 1
-
35UH-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
490201-25290-00 WASHER, PLATEWASHER, PLATE
-
55KM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
691312-08016-00 BOLTBOLT
