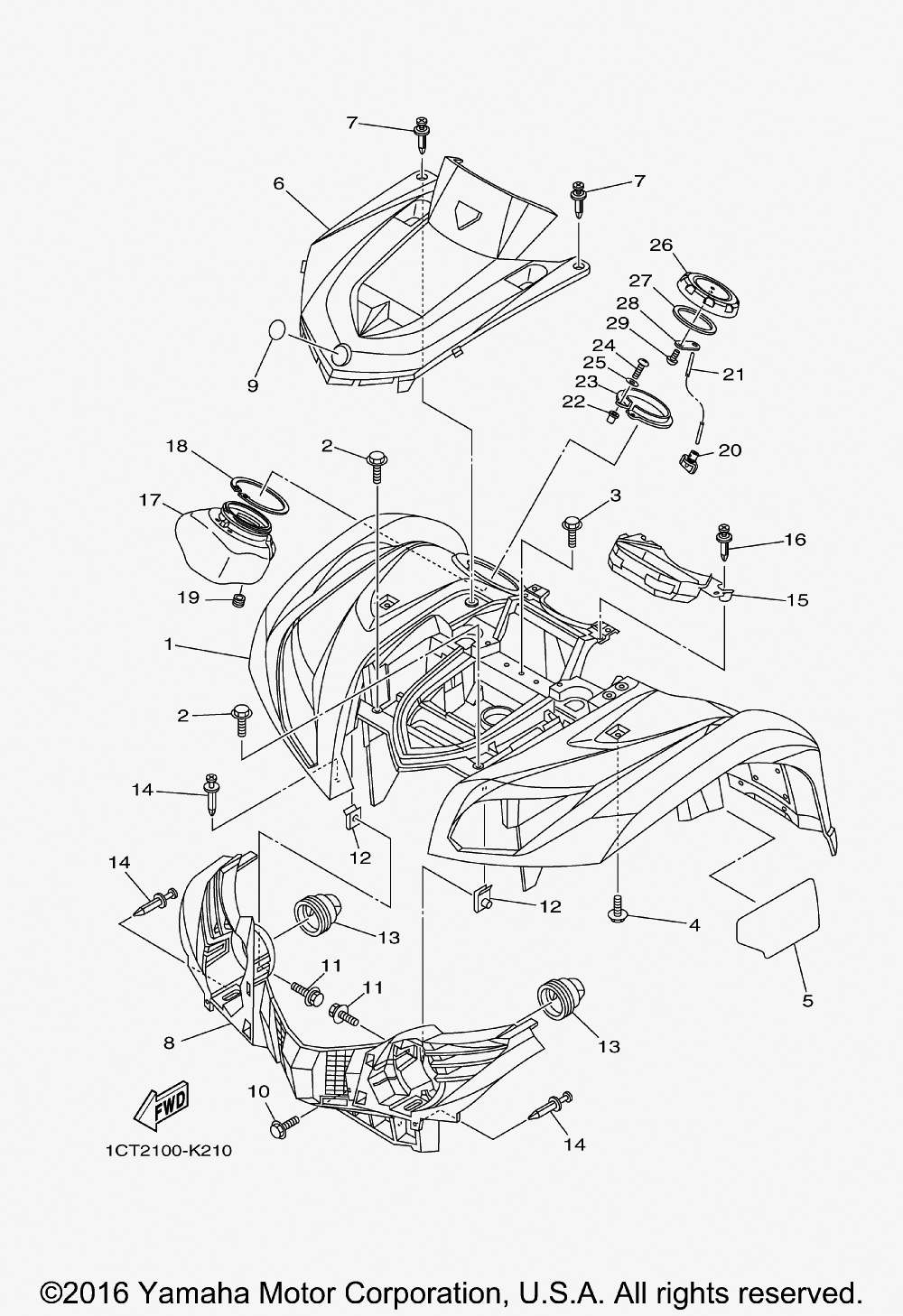

FENDER - FRONT для Yamaha GRIZZLY 450 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
137S-F1500-70-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
290119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55ND-F1575-00-00 SEAL 1SEAL 1
-
637S-F3391-00-00 PANEL, FRONTPANEL, FRONT
-
790269-06800-00 RIVETRIVET
-
837S-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
95FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
1090119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
135UH-F8349-00-00 CAPCAP
-
1490269-06800-00 RIVETRIVET
-
155ND-F837L-01-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
1690269-06800-00 RIVETRIVET
-
173B4-2838K-00-00 BOX 1BOX 1
-
183B4-2838M-00-00 SEAL, BOX 1SEAL, BOX 1
-
1990480-13004-00 GROMMETGROMMET
-
203B4-215A1-00-00 PLUG, DRAINPLUG, DRAIN
-
213B4-2845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
2290179-05523-00 NUTNUT
-
233B4-2839N-00-00 HOLDERHOLDER
-
2498502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2592902-05600-00 WASHER, PLATEWASHER, PLATE
-
263B4-2151B-01-00 CAPCAP
-
273B4-28307-00-00 SEALSEAL
-
283B4-28487-00-00 PLATE 2PLATE 2
-
2997702-50512-00 SCREW, TAPPINGSCREW, TAPPING
