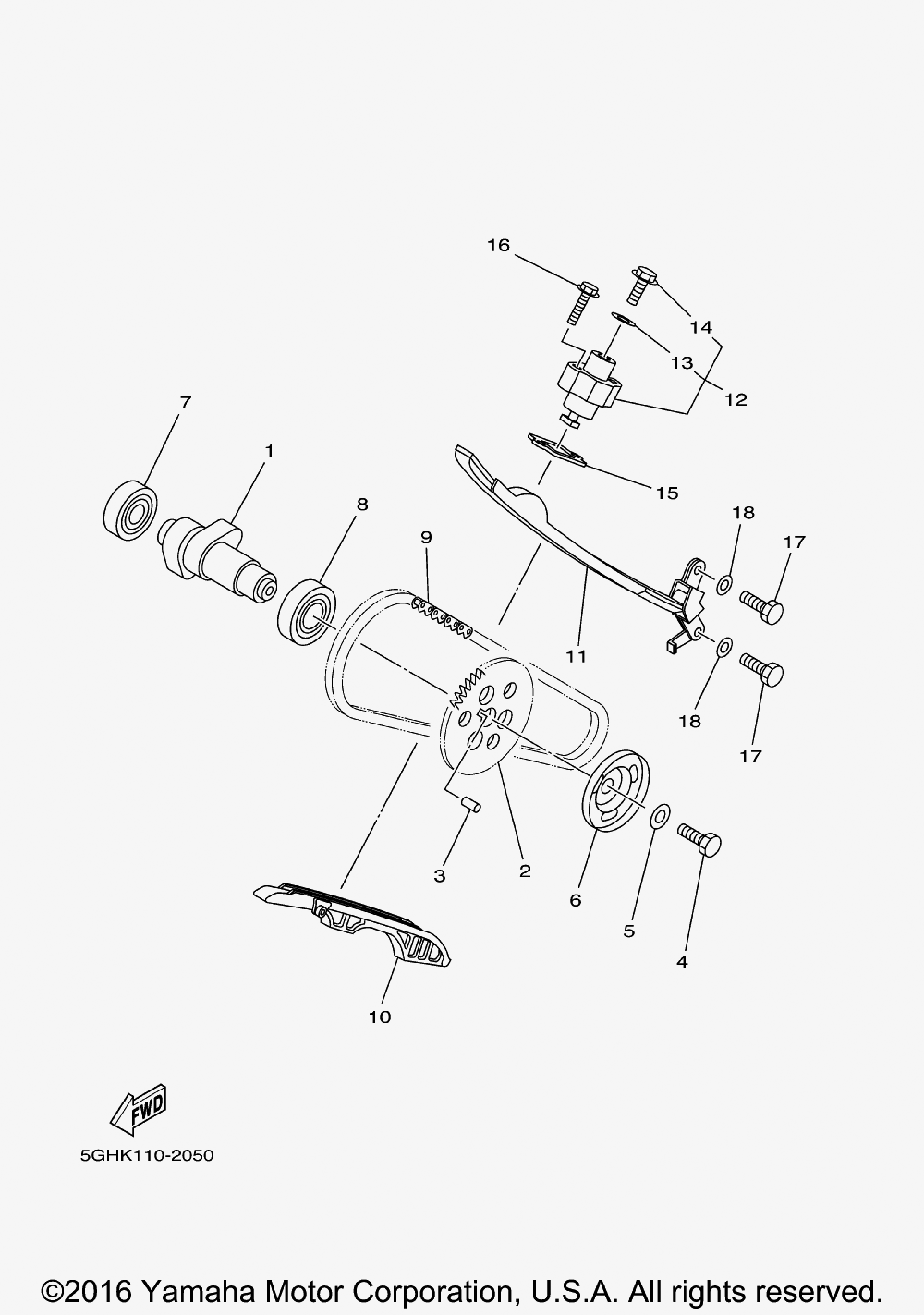

CAMSHAFT W/ CHAIN для Yamaha GRIZZLY 450 EPS 4WD (PURPLISH BLUE) - 2011 года выпуска
-
№АртикулНазвание
-
15GH-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
25GH-12176-10-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
393604-10011-00 PIN, DOWELPIN, DOWEL
-
490101-10016-00 BOLTBOLT
-
590201-10591-00 WASHER, PLATEWASHER, PLATE
-
64KB-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
793306-00438-00 BEARING (NIHONSEIKO)BEARING (NIHONSEIKO)
-
893306-00515-00 BEARINGBEARING
-
994582-20116-00 CHAIN (DID SCR-0409 SV 116LE)CHAIN (DID SCR-0409 SV 116LE)
-
105GH-12231-10-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
115GH-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1231G-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1331G-12214-00-00 ...GASKET...GASKET
-
1431G-12222-00-00 ...PLUG...PLUG
-
153GD-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1695022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1797022-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1892902-06600-00 WASHER, PLATEWASHER, PLATE
