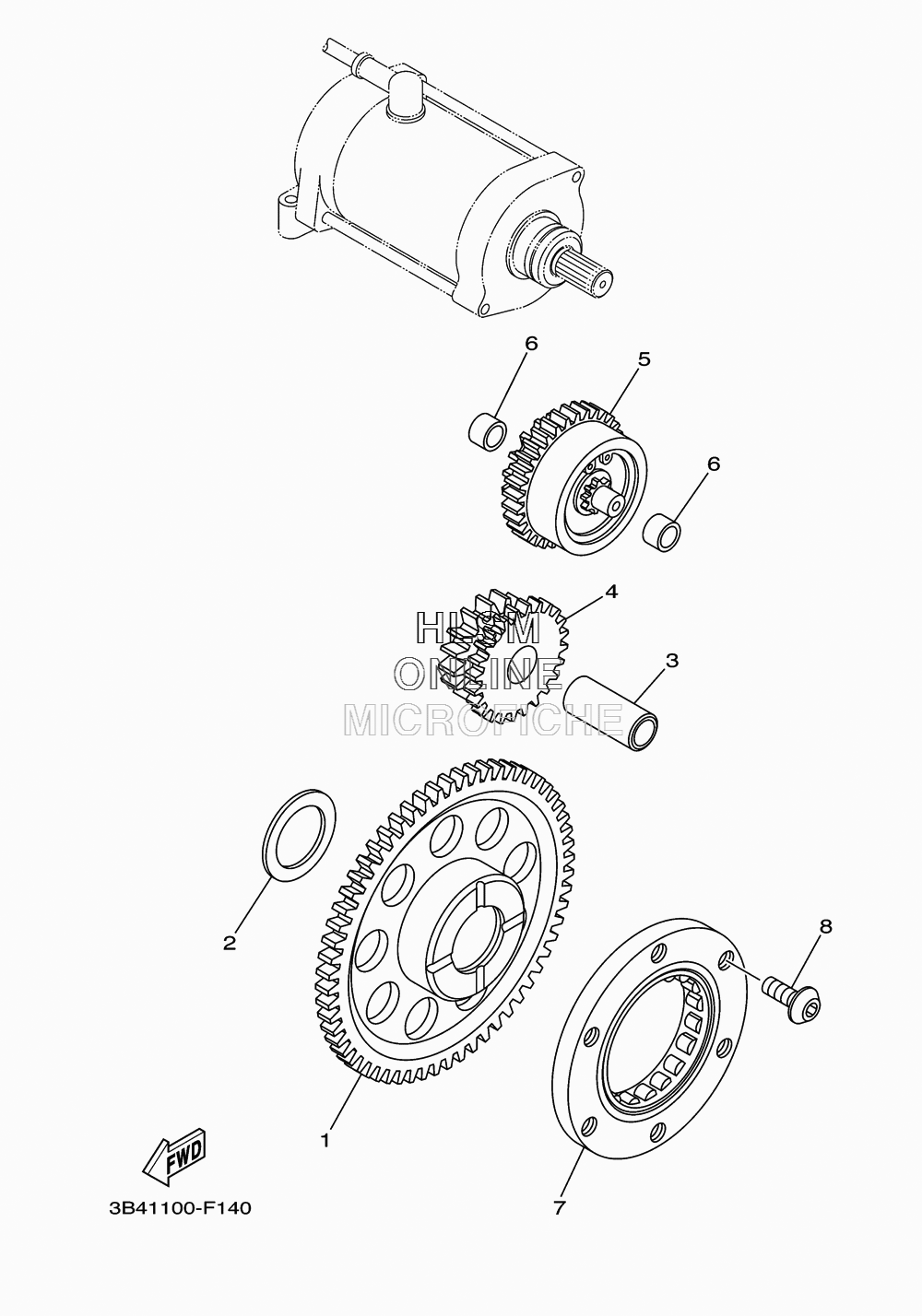

STARTER CLUTCH для Yamaha GRIZZLY 550 4WD (PURPLISH BLUE) - 2011 года выпуска
-
№АртикулНазвание
-
13B4-15515-00-00 GEAR 3 (49T)GEAR 3 (49T)
-
290201-286K9-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
33B4-15522-00-00 SHAFT 2SHAFT 2
-
43B4-15517-00-00 GEAR, IDLER 2 (25T/15T)GEAR, IDLER 2 (25T/15T)
-
51S3-15560-01-00 DAMPER ASSYDAMPER ASSY
-
690380-10002-00 BUSH, SOLIDBUSH, SOLID
-
75KM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
890149-08049-00 SCREWSCREW
