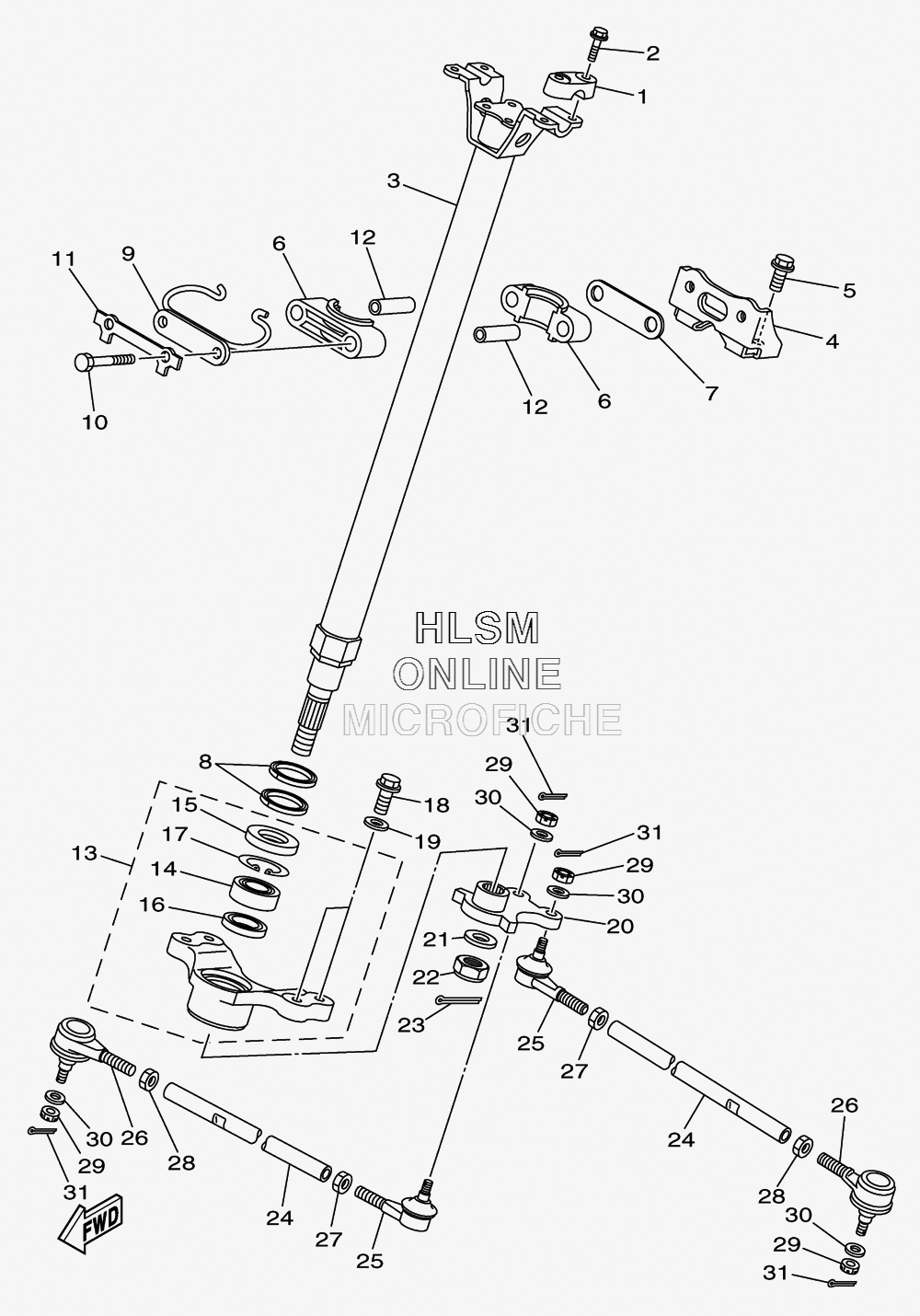

STEERING для Yamaha GRIZZLY 700 4WD (GREEN) - 2011 года выпуска
-
№АртикулНазвание
-
18K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
295822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
35C0-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
43B4-22517-00-00 SUPT., STRG. COLUMNSUPT., STRG. COLUMN
-
590105-10204-00 BOLT, FLANGEBOLT, FLANGE
-
61UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
75D3-23858-00-00 SPACERSPACER
-
893112-31011-00 OIL SEALOIL SEAL
-
95GH-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1097022-08060-00 BOLTBOLT
-
111UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1290387-09011-00 COLLARCOLLAR
-
135C0-22502-10-00 STEERING COLUMN SUPPORT ASSYSTEERING COLUMN SUPPORT ASSY
-
1493306-20352-00 BEARINGBEARING
-
1593102-25081-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1693102-25099-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1799009-40500-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
-
1890105-08153-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-08048-00 WASHER, PLATEWASHER, PLATE
-
205KM-23816-00-00 ARM, PITMANARM, PITMAN
-
2190201-14021-00 WASHER, PLATEWASHER, PLATE
-
2290185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2391402-20025-00 PIN, COTTERPIN, COTTER
-
245KM-23831-00-00 ROD, TIEROD, TIE
-
251UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
261UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2795302-10700-00 NUTNUT
-
2890170-10010-00 NUTNUT
-
2990171-10001-00 NUT, CASTLENUT, CASTLE
-
3090209-10229-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
3191401-20020-00 PIN, COTTERPIN, COTTER
