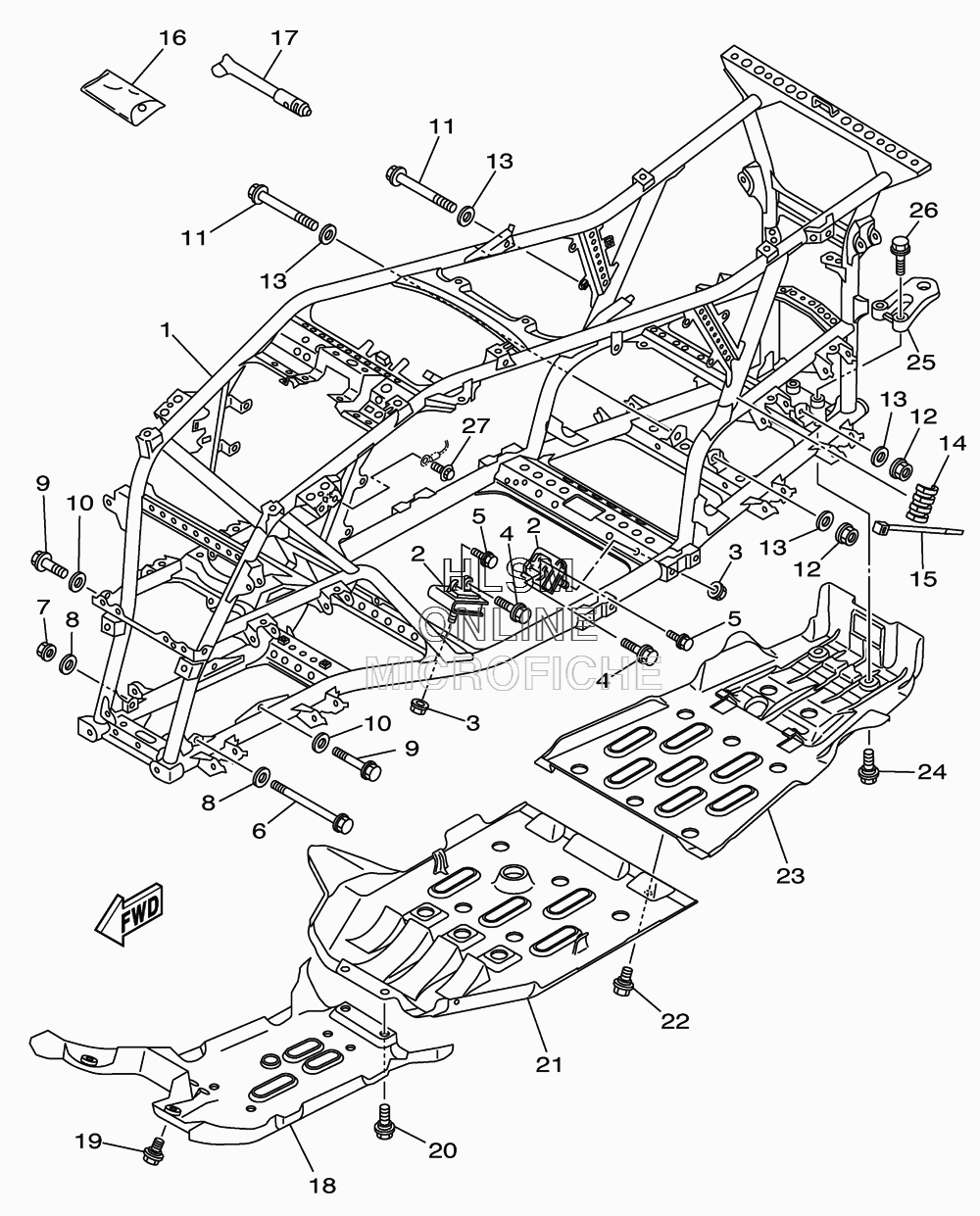

FRAME для Yamaha GRIZZLY 700 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
13B4-21110-20-00 FRAME COMP.FRAME COMP.
-
23B4-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
495812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
590105-06639-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690105-10219-00 BOLT, FLANGEBOLT, FLANGE
-
790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890201-10035-00 WASHER, PLATEWASHER, PLATE
-
990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-10035-00 WASHER, PLATEWASHER, PLATE
-
1190105-10238-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390201-10035-00 WASHER, PLATEWASHER, PLATE
-
143B4-2113B-01-00 DAMPERDAMPER
-
1590464-35132-00 CLAMPCLAMP
-
1628P-28100-01-00 TOOL KITTOOL KIT
-
171NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
183B4-2147A-00-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
1990109-06202-00 BOLTBOLT
-
2090109-06214-00 BOLTBOLT
-
213B4-2147E-00-00 GUARD, ENGINE 2GUARD, ENGINE 2
-
2290109-06214-00 BOLTBOLT
-
233B4-2147F-00-00 GUARD, ENGINE 3GUARD, ENGINE 3
-
2490109-06202-00 BOLTBOLT
-
253B4-28488-00-00 HOOKHOOK
-
2695812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
2795802-06012-00 BOLT, FLANGEBOLT, FLANGE
