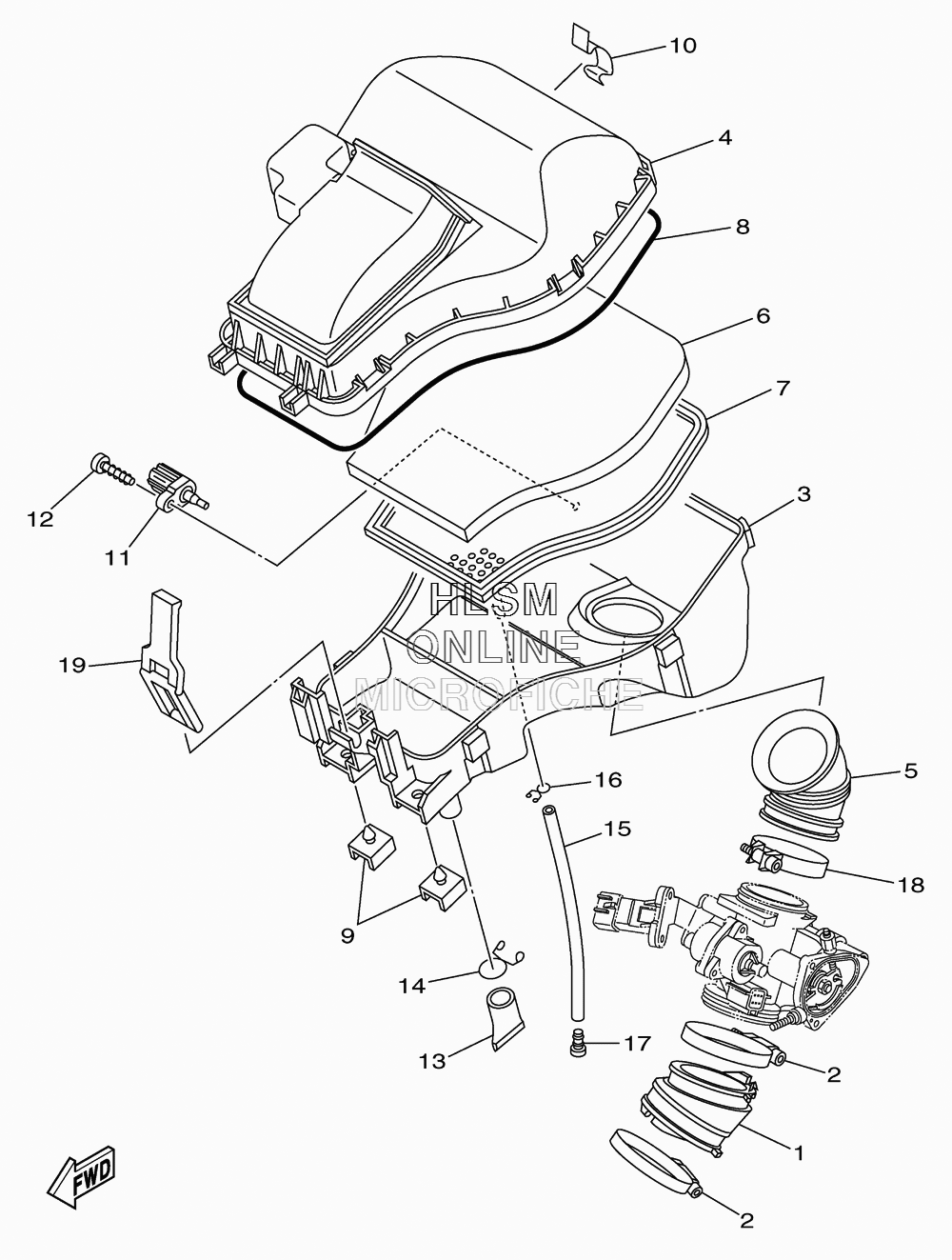

AIR CLEANER W/ INTAKE для Yamaha GRIZZLY 700 EPS 4WD (PURPLISH BLUE) - 2011 года выпуска
-
№АртикулНазвание
-
13B4-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290450-72004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
33B4-14411-21-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
43B4-14402-03-00 CAP ASSY, AIR CLEANERCAP ASSY, AIR CLEANER
-
53B4-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
63B4-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
73B4-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
83B4-14457-00-00 SEALSEAL
-
93B4-14409-00-00 DAMPERDAMPER
-
103B4-14424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
118FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1297702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
1359V-14457-00-00 SEALSEAL
-
1490467-220A1-00 CLIPCLIP
-
1591A20-07020-00 TUBE, FLEXIBLE VINYL (L200)TUBE, FLEXIBLE VINYL (L200)
-
1690467-10041-00 CLIP,SCISSORCLIP,SCISSOR
-
1790338-08174-00 PLUGPLUG
-
1890450-59006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
193B4-14455-00-00 BANDBAND
