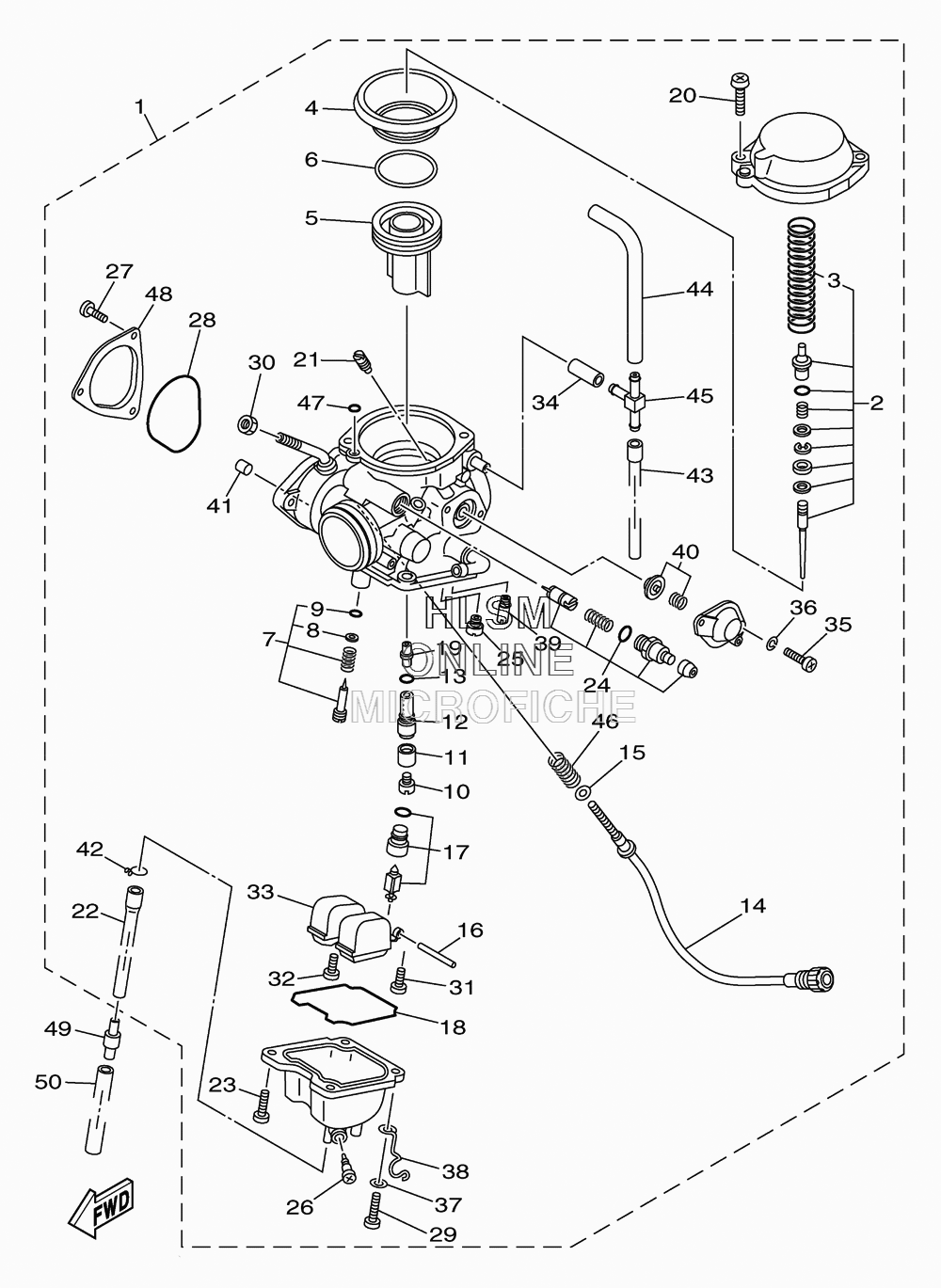

CARBURETOR для Yamaha RAPTOR 350 - 2011 года выпуска
-
№АртикулНазвание
-
15YT-14901-10-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25YT-1490J-10-00 NEEDLE SETNEEDLE SET
-
35YT-24423-00-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
48FA-14940-00-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
55YT-14112-00-00 VALVE, THROTTLE 1VALVE, THROTTLE 1
-
65YT-14194-00-00 RINGRING
-
75MP-14105-00-00 PILOT SCREW SETPILOT SCREW SET
-
83H1-14962-00-00 WASHERWASHER
-
93H1-14147-00-00 O-RINGO-RING
-
103G2-1423A-79-00 JET, MAIN (#142.5)JET, MAIN (#142.5)
-
115GH-14918-00-00 RINGRING
-
125YT-14261-00-00 HOLDERHOLDER
-
13583-14561-00-00 O-RINGO-RING
-
145YT-14123-00-00 SCREW, AIR ADJUSTINGSCREW, AIR ADJUSTING
-
155FU-14962-00-00 WASHERWASHER
-
16127-14186-00-00 PIN, FLOATPIN, FLOAT
-
175YT-14190-25-00 NEEDLE VALVE ASSYNEEDLE VALVE ASSY
-
185DM-14561-00-00 O-RINGO-RING
-
195YT-14141-40-00 NOZZLE, MAINNOZZLE, MAIN
-
204KM-14216-00-00 SCREWSCREW
-
211HX-14231-33-00 JET, MAIN (#165)JET, MAIN (#165)
-
225YT-14193-00-00 PIPEPIPE
-
2398507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
245YT-1410A-00-00 STARTER SETSTARTER SET
-
253G2-14231-14-00 JET,PILOT AIR(#70)JET,PILOT AIR(#70)
-
265LW-14191-00-00 PLUG, DRAINPLUG, DRAIN
-
2798507-04006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
285LP-14147-00-00 O-RINGO-RING
-
2998507-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
30522-14161-00-00 NUT, CABLE ADJUSTINGNUT, CABLE ADJUSTING
-
3198507-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
321FN-14565-00-00 SCREWSCREW
-
335DM-14985-00-00 FLOATFLOAT
-
345YT-14197-00-00 PIPEPIPE
-
3598501-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3692902-04100-00 WASHER, SPRINGWASHER, SPRING
-
3792907-04600-00 WASHERWASHER
-
385KM-14937-00-00 CLIPCLIP
-
394KM-14142-22-00 JET, PILOT (#22.5)JET, PILOT (#22.5)
-
405YT-1490H-00-00 DIAPHRAGM SET 5DIAPHRAGM SET 5
-
413GD-14155-00-00 GUIDE, CABLEGUIDE, CABLE
-
4280N-14139-00-00 CLIP, PIPECLIP, PIPE
-
435YT-14197-20-00 PIPEPIPE
-
445YT-14197-10-00 PIPEPIPE
-
4528V-14988-00-00 PIPE, STARTER CONNECTINGPIPE, STARTER CONNECTING
-
46137-14133-00-00 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
47354-14147-00-00 O-RINGO-RING
-
484WV-14293-00-00 COVER 1COVER 1
-
4924W-14193-00-00 PIPEPIPE
-
5091A20-07010-00 TUBE, FLEXIBLE (3NV)TUBE, FLEXIBLE (3NV)
