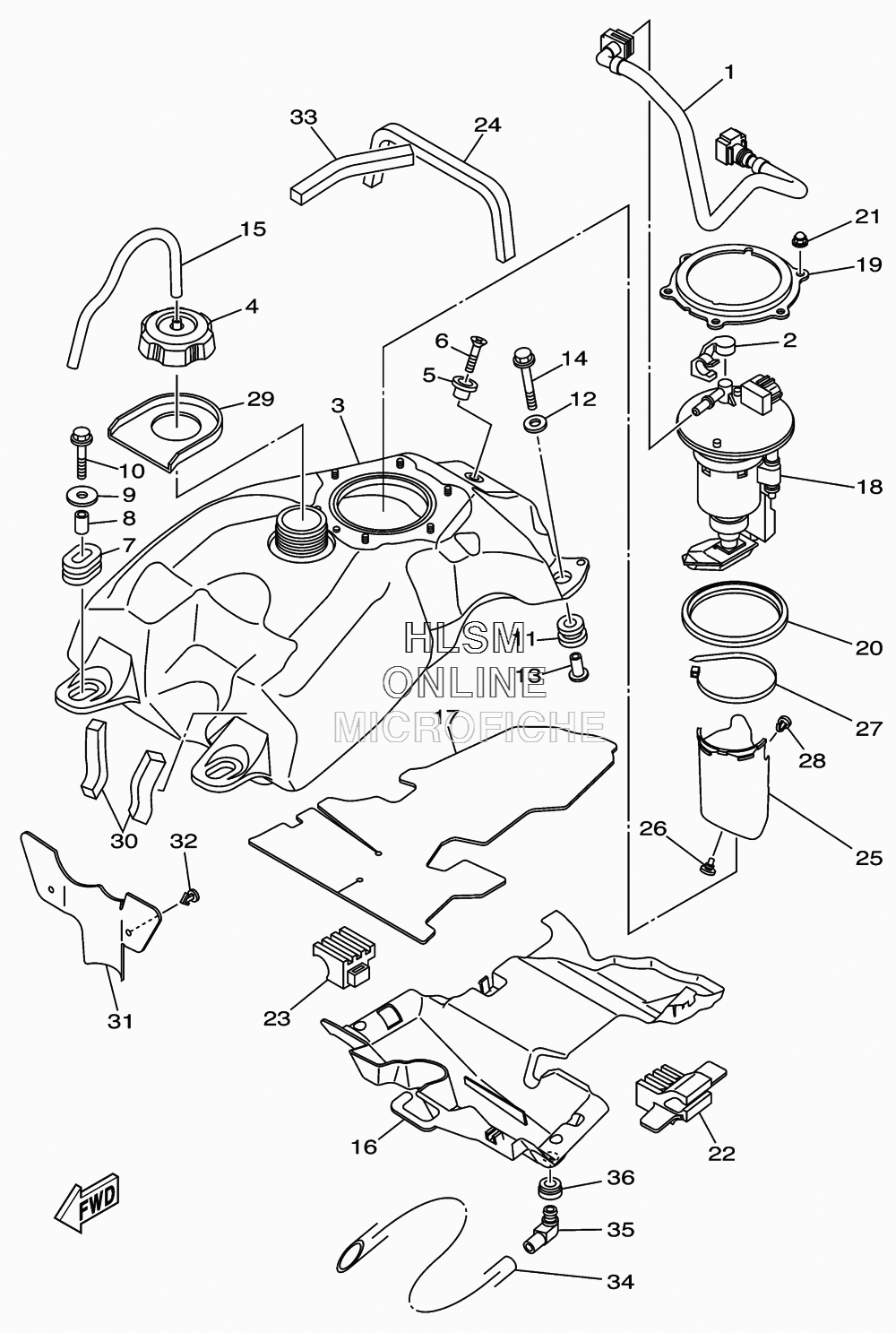

FUEL TANK для Yamaha RAPTOR 700R SPECIAL EDITION - 2011 года выпуска
-
№АртикулНазвание
-
11S3-13971-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
290464-14004-00 CLAMPCLAMP
-
31S3-24110-20-00 FUEL TANK COMP.FUEL TANK COMP.
-
42FJ-24610-10-00 CAP ASSYCAP ASSY
-
54EW-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
698702-06025-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
790480-01017-00 GROMMETGROMMET
-
890387-06M17-00 COLLARCOLLAR
-
990201-06090-00 WASHER, PLATEWASHER, PLATE
-
1095802-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1190480-18005-00 GROMMETGROMMET
-
1290201-06033-00 WASHER, PLATEWASHER, PLATE
-
1390387-06098-00 COLLARCOLLAR
-
1495802-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1590445-083J4-00 HOSE (L340)HOSE (L340)
-
161S3-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
171S3-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
181S3-13907-10-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
191S3-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
201S3-24486-00-00 O-RINGO-RING
-
2195302-06800-00 NUT, CROWNNUT, CROWN
-
221S3-24278-00-00 STOPPER 1STOPPER 1
-
231S3-24279-00-00 STOPPER 2STOPPER 2
-
241S3-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
251S3-24452-00-00 COVERCOVER
-
2690338-05008-00 PLUGPLUG
-
2790464-66001-00 CLAMPCLAMP
-
2890269-07011-00 RIVETRIVET
-
291S3-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
301S3-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
311S3-2413X-00-00 PLATEPLATE
-
3290269-05055-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
331S3-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
3490445-16007-00 HOSE (L400)HOSE (L400)
-
3531A-14419-00-00 PIPEPIPE
-
3631A-14435-00-00 GROMMETGROMMET
