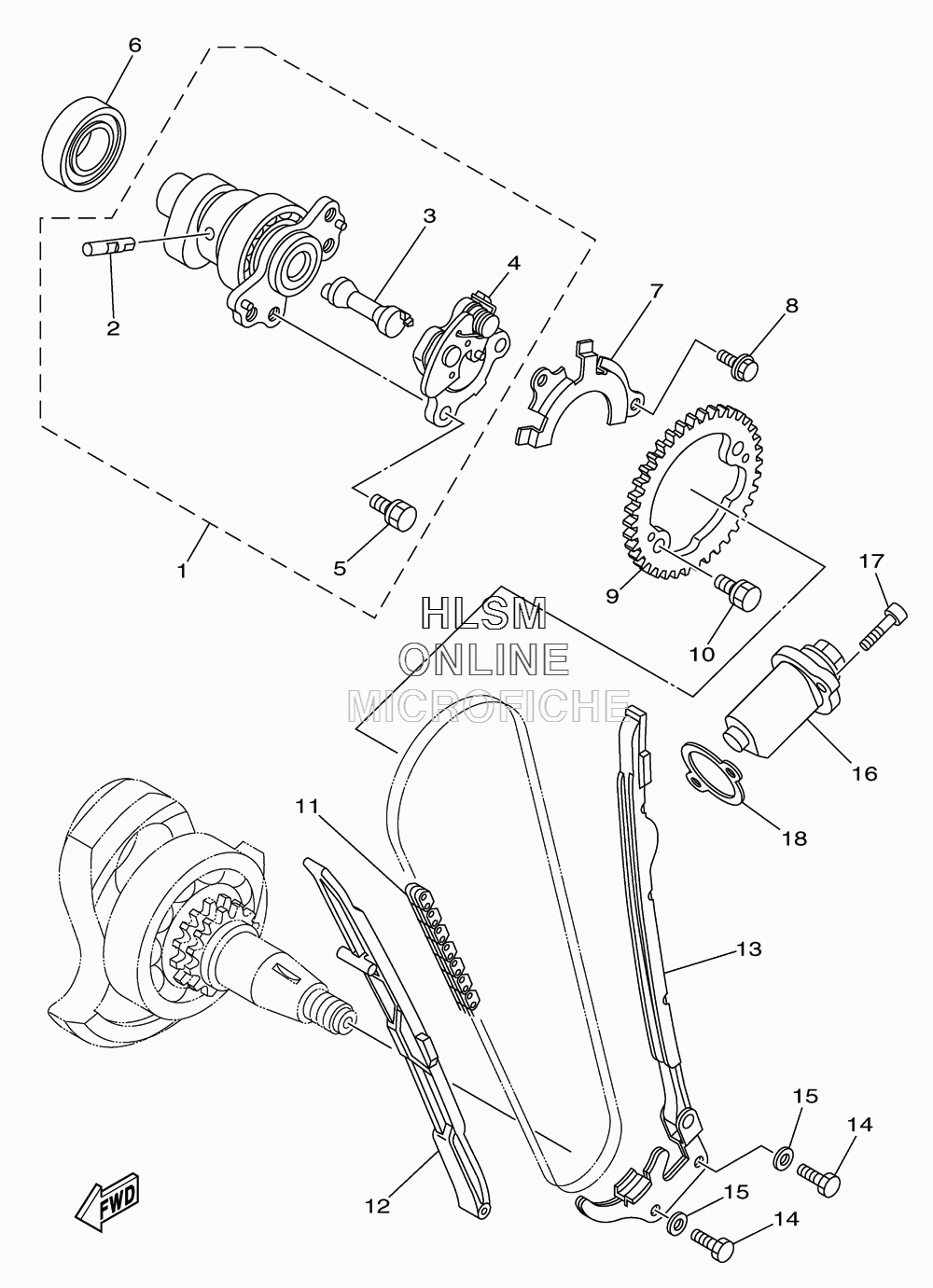

CAMSHAFT W/ CHAIN для Yamaha RAPTOR 700R - 2011 года выпуска
-
№АртикулНазвание
-
11S3-12170-10-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
25VK-12284-00-00 PIN, DECOMPRESSION LEVERPIN, DECOMPRESSION LEVER
-
31S3-12290-00-00 LEVER, DECOMPRESSION SPRINGLEVER, DECOMPRESSION SPRING
-
41S3-12280-01-00 DECOMPRESSION ASSYDECOMPRESSION ASSY
-
590105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
693306-07209-00 BEARINGBEARING
-
75VK-1111F-00-00 PLATEPLATE
-
890105-06078-00 BOLT, FLANGEBOLT, FLANGE
-
91S3-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1090105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
1194591-57126-00 CHAIN (98XRIGHT HAND2010-126M)CHAIN (98XRIGHT HAND2010-126M)
-
125VK-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
131S3-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1497022-06016-00 BOLT (GA1)BOLT (GA1)
-
1592902-06600-00 WASHERWASHER
-
163TB-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1791312-06025-00 BOLT (4MY)BOLT (4MY)
-
184DW-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
