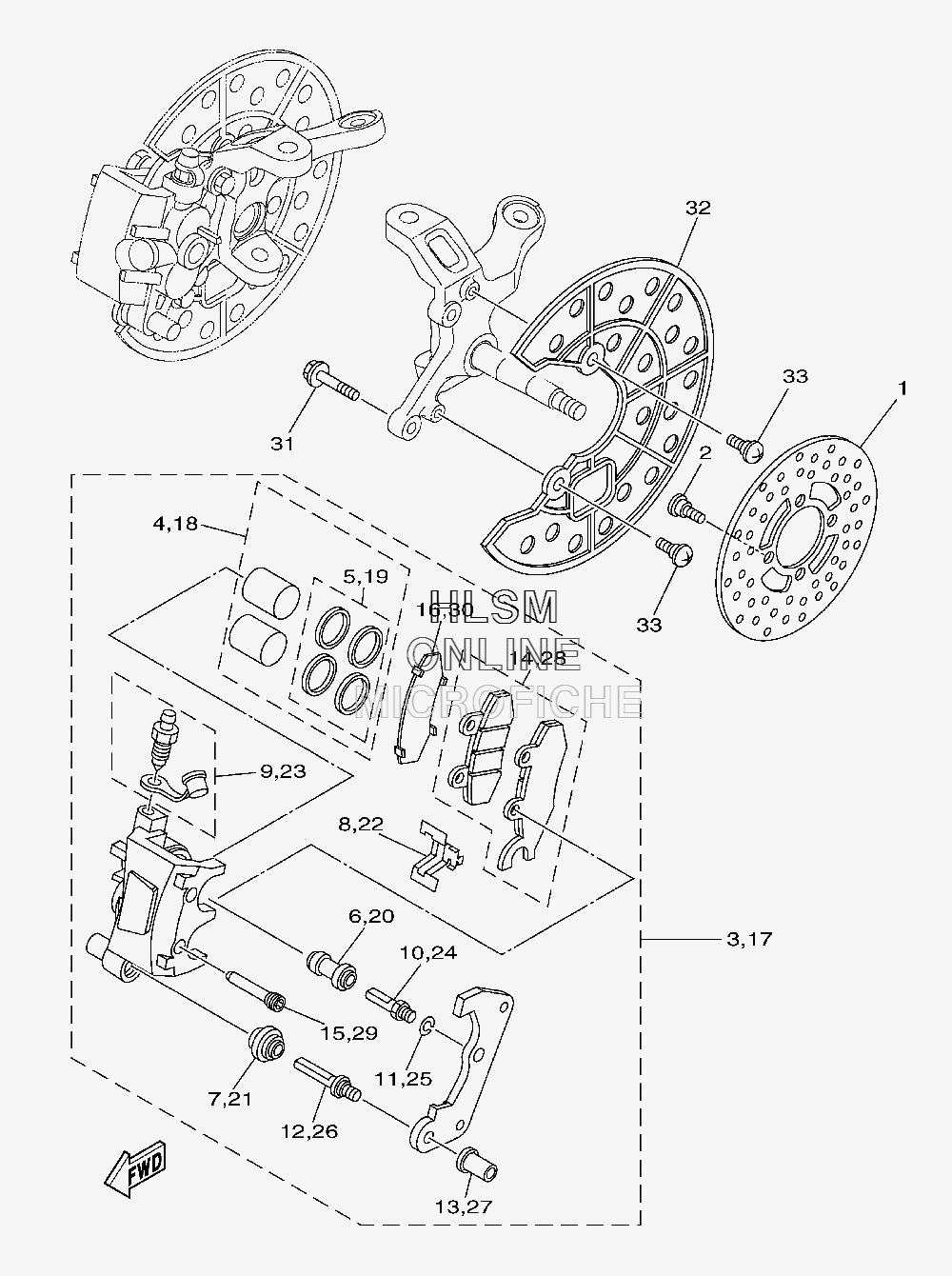

BRAKE - FRONT CALIPER для Yamaha YFZ 450X SPECIAL EDITION - 2011 года выпуска
-
№АртикулНазвание
-
13GD-2582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
35TG-2580T-11-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45TG-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
53LC-W0047-50-00 CALIPER SEAL KITCALIPER SEAL KIT
-
61UY-25937-51-00 BOOT 2BOOT 2
-
73JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
83JD-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
91UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
101UY-25926-51-00 BOLTBOLT
-
111UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
123JD-25926-00-00 BOLTBOLT
-
133JD-25961-00-00 NUTNUT
-
145TG-W0045-20-00 BRAKE PAD KITBRAKE PAD KIT
-
155TG-25924-00-00 PIN, PADPIN, PAD
-
161S3-25828-00-00 SHIM, CALIPERSHIM, CALIPER
-
175TG-2580U-11-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
185TG-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
193LC-W0047-50-00 CALIPER SEAL KITCALIPER SEAL KIT
-
201UY-25937-51-00 BOOT 2BOOT 2
-
213JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
223JD-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
231UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
241UY-25926-51-00 BOLTBOLT
-
251UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
263JD-25926-00-00 BOLTBOLT
-
273JD-25961-00-00 NUTNUT
-
285TG-W0045-30-00 BRAKE PAD KITBRAKE PAD KIT
-
295TG-25924-00-00 PIN, PADPIN, PAD
-
301S3-25828-00-00 SHIM, CALIPERSHIM, CALIPER
-
3190105-08184-00 BOLT, FLANGEBOLT, FLANGE
-
325TG-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3390149-06117-00 SCREWSCREW
