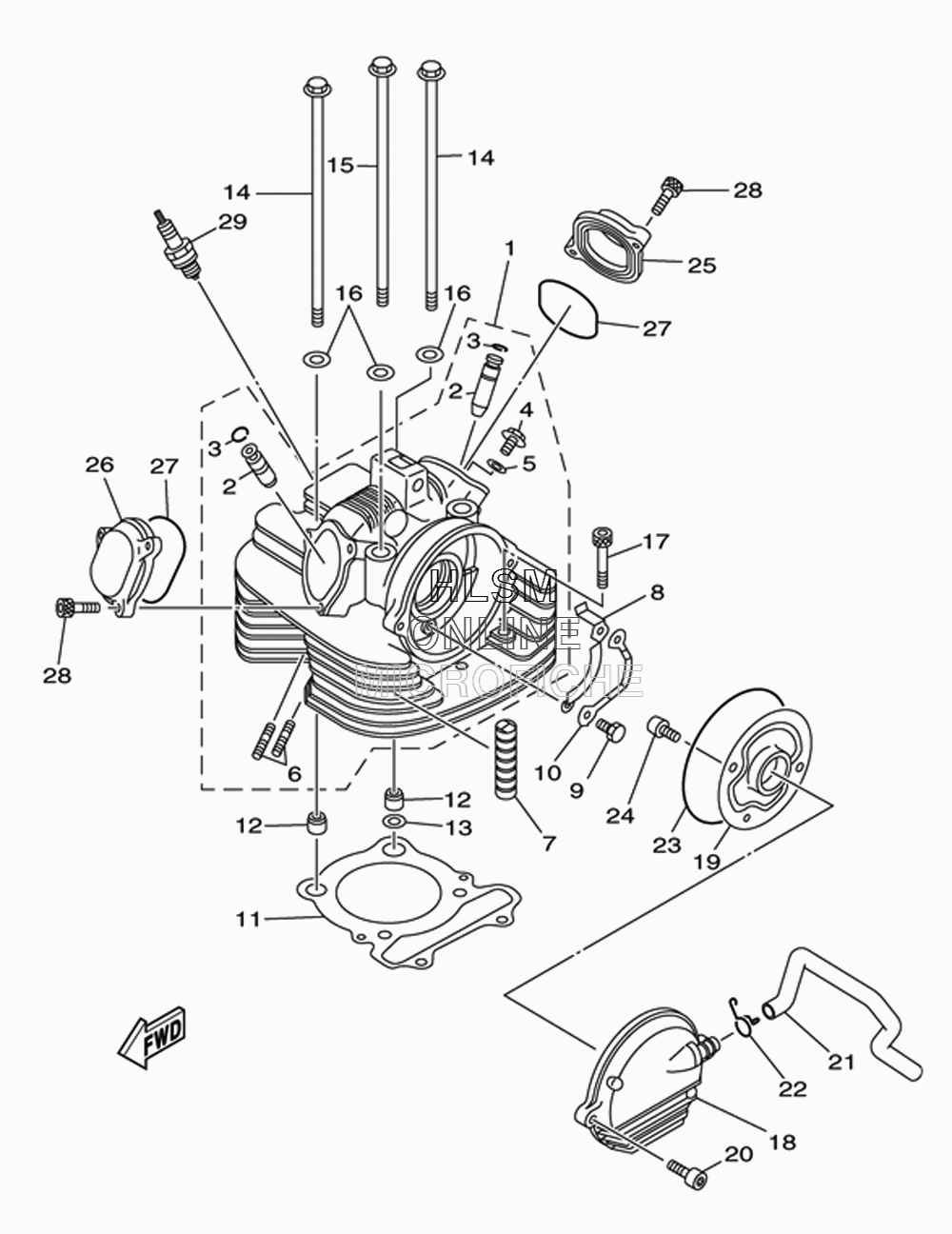

CYLINDER HEAD для Yamaha GRIZZLY 350 4WD HUNTER - 2012 года выпуска
-
№АртикулНазвание
-
15YT-11101-20-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23Y1-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12052-00 ...CIRCLIP...CIRCLIP
-
495022-06014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590430-06192-00 ...GASKET...GASKET
-
690116-06041-00 ...BOLT, STUD...BOLT, STUD
-
73Y1-11127-00-00 ABSORBER 3ABSORBER 3
-
83Y1-1111F-00-00 PLATEPLATE
-
997002-06012-00 BOLTBOLT
-
1090215-06162-00 WASHER, LOCKWASHER, LOCK
-
111UY-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1299530-14016-00 PIN, DOWELPIN, DOWEL
-
1390430-14240-00 GASKETGASKET
-
1490105-10137-00 BOLT, FLANGEBOLT, FLANGE
-
1590105-10136-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-10128-00 WASHER, PLATEWASHER, PLATE
-
1791312-08050-00 BOLTBOLT
-
184WU-11160-01-00 BREATHER ASSYBREATHER ASSY
-
194KB-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2095022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
213C2-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2290467-140A4-00 CLIPCLIP
-
2393211-06635-00 O-RINGO-RING
-
2491312-06025-00 BOLTBOLT
-
252NL-11186-12-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
262NL-11187-11-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2793210-57634-00 O-RINGO-RING
-
2891312-06020-00 BOLTBOLT
-
29DR8-EA000-00-00 PLUG, SPARK (NGK DR8EA)PLUG, SPARK (NGK DR8EA)
