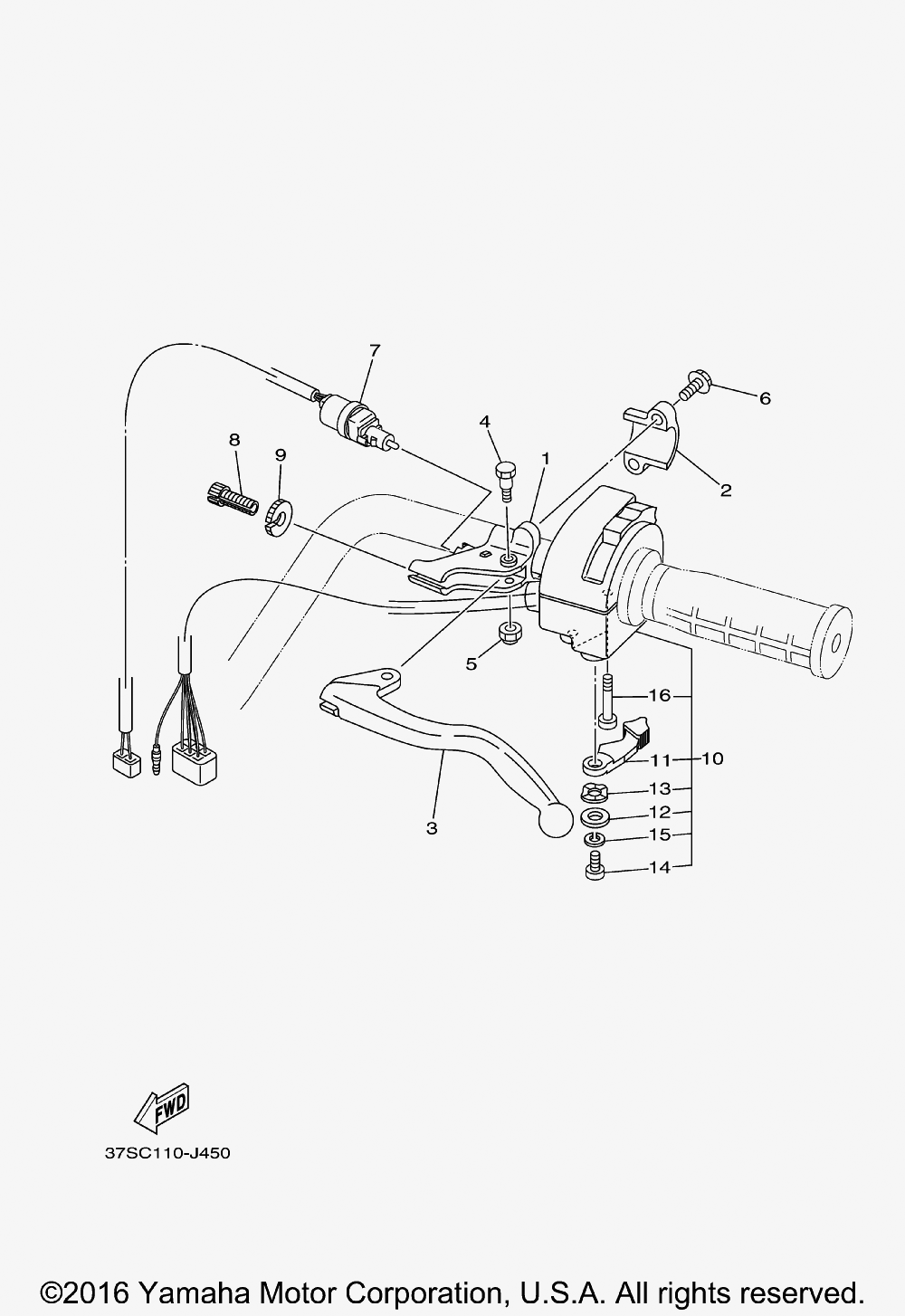

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha GRIZZLY 450 EPS 4WD (PASTEL DEEP GREEN) - 2012 года выпуска
-
№АртикулНазвание
-
11YW-82911-10-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
25LP-82913-11-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
32HT-83912-00-00 LEVER 1LEVER 1
-
490109-06799-00 BOLTBOLT
-
595607-06100-00 NUT, UNUT, U
-
695027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
73FA-83980-03-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
890123-08002-00 BOLTBOLT
-
990179-08030-00 NUTNUT
-
105KM-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
115KM-83941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
121UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
133L4-83943-00-00 ...WASHER, STARTER...WASHER, STARTER
-
1498517-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1592907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
1698507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
