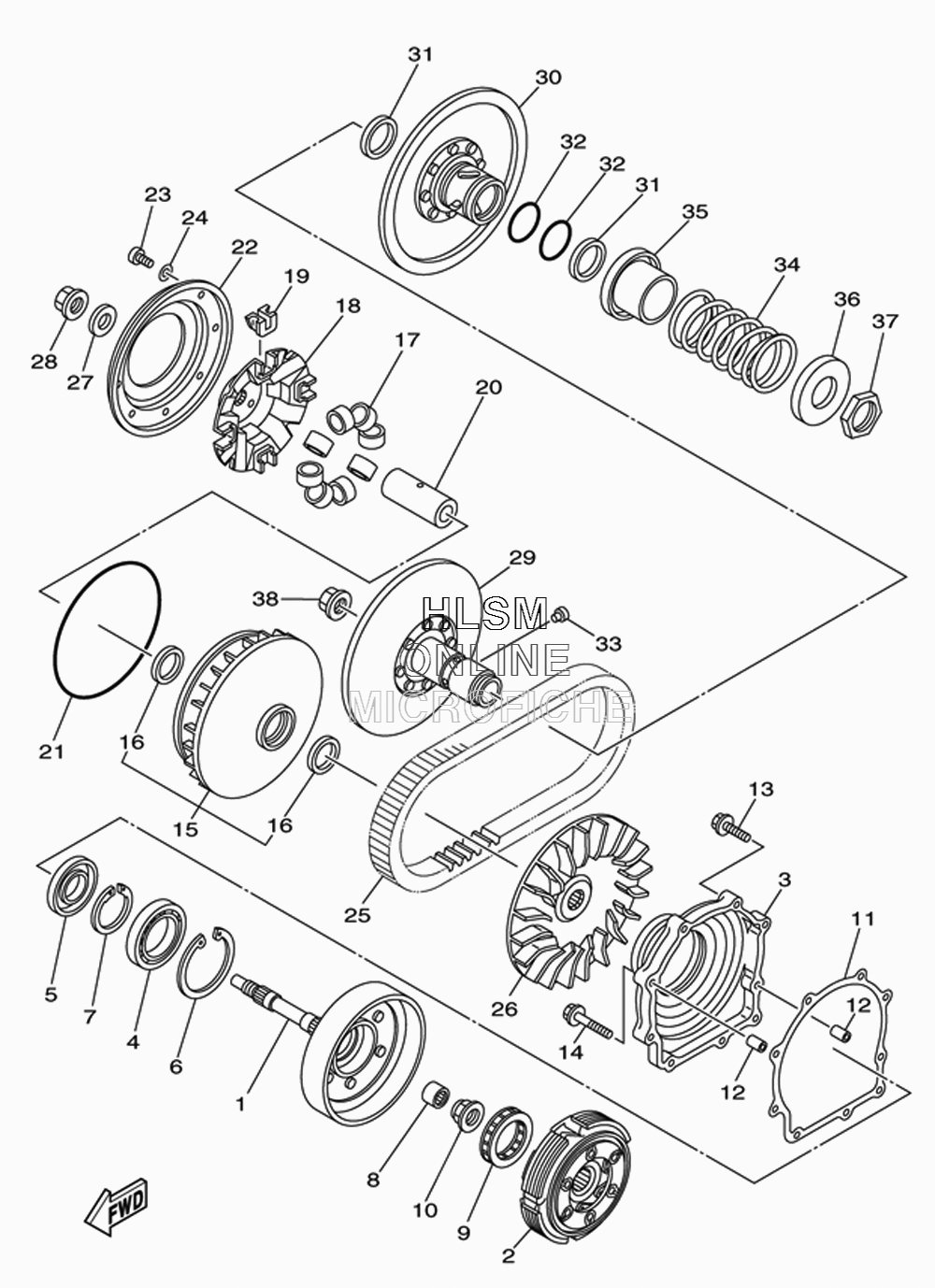

CLUTCH для Yamaha GRIZZLY 700 EPS 4WD SE - 2012 года выпуска
-
№АртикулНазвание
-
116B-16611-01-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
23B4-16620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
33B4-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
493316-01003-00 BEARINGBEARING
-
593102-35004-00 OIL SEALOIL SEAL
-
699009-80500-00 CIRCLIPCIRCLIP
-
793410-46079-00 CIRCLIPCIRCLIP
-
893315-21813-00 BEARING, CYL.#15BEARING, CYL.#15
-
94SH-16664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
1090179-22021-00 NUTNUT
-
113B4-15463-00-00 GASKET, COVER PINION 2GASKET, COVER PINION 2
-
1299530-10116-00 PIN, DOWELPIN, DOWEL
-
1395022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1495022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
153B4-17606-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
1693101-35001-00 ...OIL SEAL...OIL SEAL
-
173B4-17632-01-00 WEIGHTWEIGHT
-
183B4-17623-01-00 CAMCAM
-
193B4-17653-00-00 SLIDERSLIDER
-
203B4-17645-00-00 COLLARCOLLAR
-
2193211-594A4-00 O-RINGO-RING
-
224WV-17639-10-00 STOPPERSTOPPER
-
2390157-04006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2490201-047R9-00 WASHER, PLATEWASHER, PLATE
-
253B4-17641-00-00 V-BELTV-BELT
-
263B4-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2790201-190T7-00 WASHER, PLATEWASHER, PLATE
-
2890179-16005-00 NUTNUT
-
293B4-17660-10-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
303B4-17670-10-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
3193104-41119-00 OIL SEALOIL SEAL
-
3293210-44545-00 O-RINGO-RING
-
334CW-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3490501-650A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
354WV-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
364WV-17644-00-00 SEAT,SPRINGSEAT,SPRING
-
3790170-36279-00 NUTNUT
-
3890179-16005-00 NUTNUT
