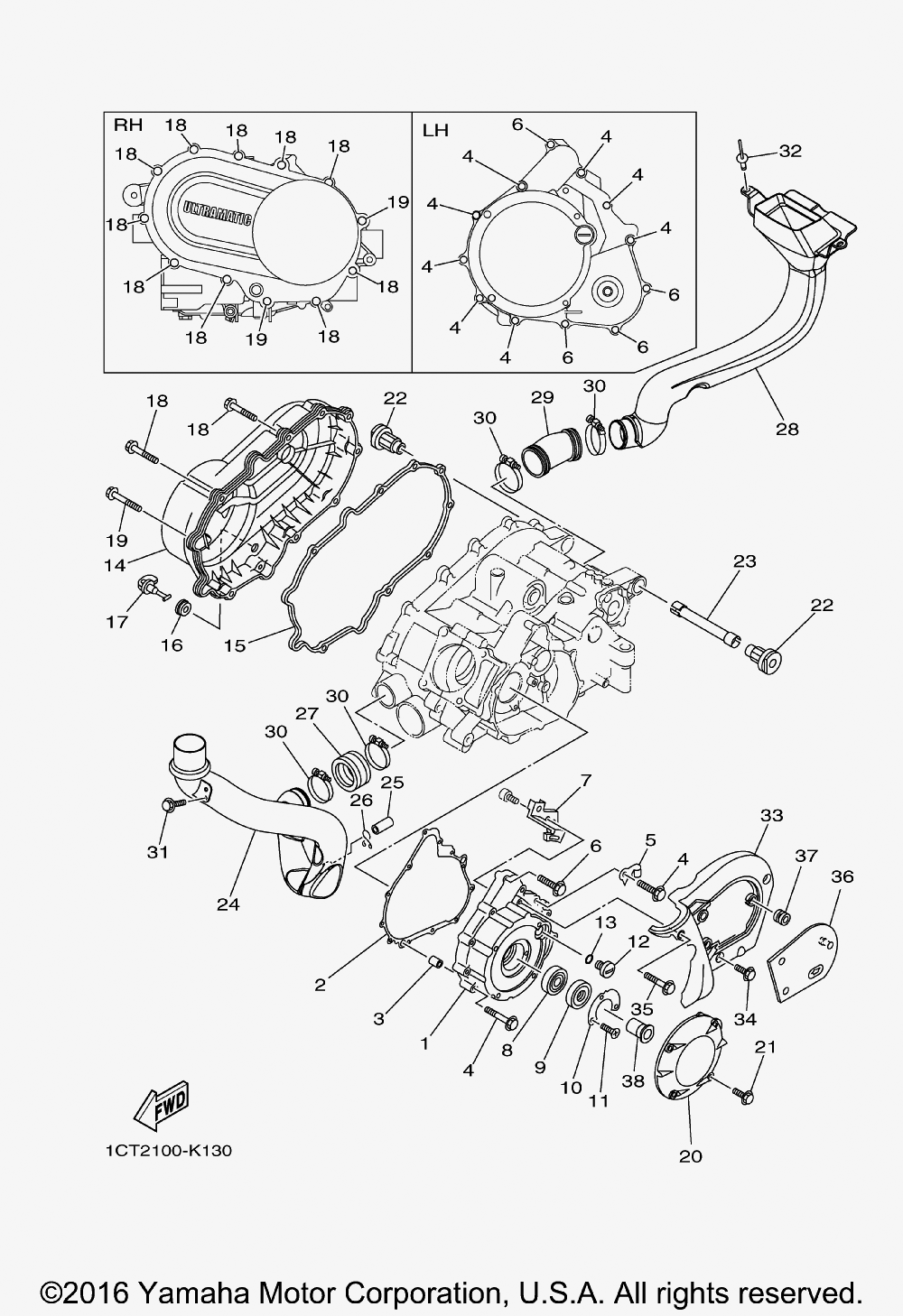

CRANKCASE COVER для Yamaha GRIZZLY450 EPS 4WD HUNTER - 2012 года выпуска
-
№АртикулНазвание
-
15GH-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25GH-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
495022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
590465-08127-00 CLAMPCLAMP
-
695022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
75GH-15113-00-00 PLATEPLATE
-
893306-07801-00 BEARINGBEARING
-
993102-28017-00 OIL SEALOIL SEAL
-
1021V-15719-00-00 WASHER, THRUSTWASHER, THRUST
-
1190151-05023-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1290340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1393210-14369-00 O-RINGO-RING
-
145ND-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
155GH-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
1690480-13018-00 GROMMETGROMMET
-
175KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1895822-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1995822-06045-00 BOLT, FLANGEBOLT, FLANGE
-
203C2-15492-00-00 COVERCOVER
-
2191312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
225GH-15336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
235GH-15317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
241CT-E5471-00-00 DUCT, AIRDUCT, AIR
-
255BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2690467-160A4-00 CLIPCLIP
-
275ND-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
281CT-E5473-00-00 DUCT, AIRDUCT, AIR
-
291D9-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
3090450-64002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3195812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3290269-08813-00 RIVETRIVET
-
335ND-E5423-00-00 COVER 2COVER 2
-
3495022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3595022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
365ND-E5413-00-00 COVERCOVER
-
3790480-13398-00 GROMMETGROMMET
-
383GD-15777-10-00 BOSS, STARTER PULLEYBOSS, STARTER PULLEY
