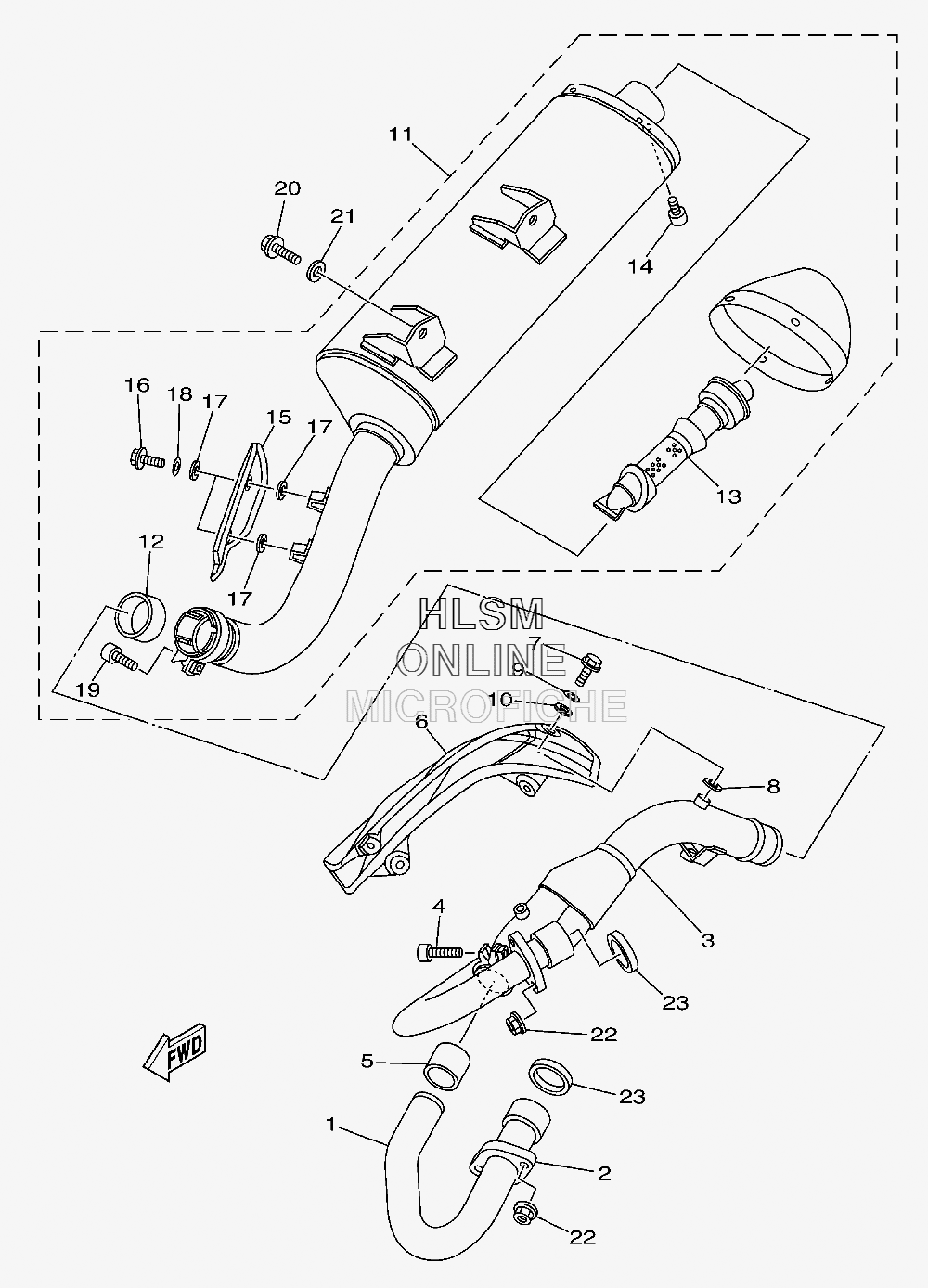

EXHAUST для Yamaha RAPTOR 700R SPECIAL EDITION - 2012 года выпуска
-
№АртикулНазвание
-
11S3-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
21S3-14612-00-00 NUT, RINGNUT, RING
-
31S3-14621-01-00 PIPE, EXHAUST 2PIPE, EXHAUST 2
-
491314-08035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
53YF-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
61S3-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
890201-05015-00 WASHER, PLATEWASHER, PLATE
-
990201-06035-00 WASHER, PLATEWASHER, PLATE
-
1090201-05019-00 WASHER, PLATEWASHER, PLATE
-
111S3-14710-11-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
125LP-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
131S3-14752-00-00 ...PIPE, OUTLET...PIPE, OUTLET
-
1491312-06010-00 ...BOLT...BOLT
-
151S3-14728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
1698902-06010-00 ...SCREW, BIND...SCREW, BIND
-
1790201-05015-00 ...WASHER, PLATE...WASHER, PLATE
-
1892902-06200-00 ...WASHER...WASHER
-
1991314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
2090105-08142-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-08048-00 WASHER, PLATEWASHER, PLATE
-
2295702-08500-00 NUT, FLANGENUT, FLANGE
-
233YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
