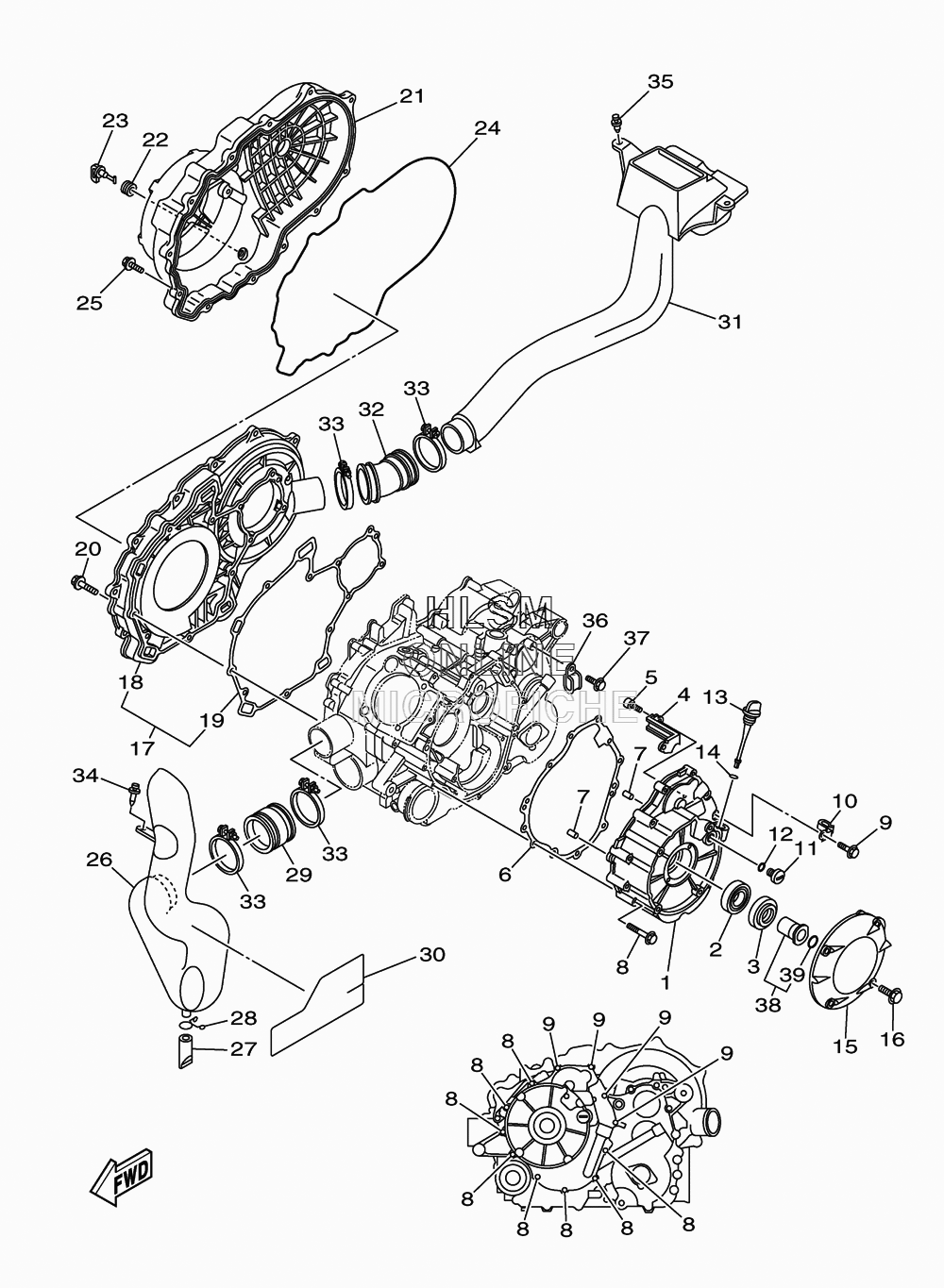

CRANKCASE COVER для Yamaha GRIZZLY 350 4WD HUNTER - 2013 года выпуска
-
№АртикулНазвание
-
15UH-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293306-07801-00 BEARINGBEARING
-
393102-28017-00 OIL SEALOIL SEAL
-
45UH-15113-00-00 PLATEPLATE
-
591312-05012-00 BOLTBOLT
-
65UH-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
799530-10116-00 PIN, DOWELPIN, DOWEL
-
895022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
995022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1090465-08127-00 CLAMPCLAMP
-
1190340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-14369-00 O-RINGO-RING
-
13517-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1493210-19026-00 O-RINGO-RING
-
153C2-15492-00-00 COVERCOVER
-
1691312-06025-00 BOLTBOLT
-
175UH-15420-00-00 CRANKCASE COVER ASSY 2CRANKCASE COVER ASSY 2
-
185UH-15421-00-00 ...COVER, CRANKCASE 2...COVER, CRANKCASE 2
-
195UH-15315-00-00 ...SEAL, CRANKCASE...SEAL, CRANKCASE
-
2095822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
215UH-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
2290480-13018-00 GROMMETGROMMET
-
235KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
245UH-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
2595822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
265UH-E5471-00-00 DUCT, AIRDUCT, AIR
-
275BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2890467-160A4-00 CLIPCLIP
-
295ND-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
301NS-E5491-00-00 PROTECTORPROTECTOR
-
315ND-E5473-00-00 DUCT, AIRDUCT, AIR
-
325UH-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
3390450-64002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3490269-06800-00 RIVETRIVET
-
3590269-08813-00 RIVET, PLASTIC MATRIVET, PLASTIC MAT
-
3690461-08134-00 CLAMPCLAMP
-
3795022-06012-00 .BOLT, FLANGE.BOLT, FLANGE
-
383D5-15730-00-00 STARTER PULLEY ASSYSTARTER PULLEY ASSY
-
3993210-16290-00 O-RINGO-RING
