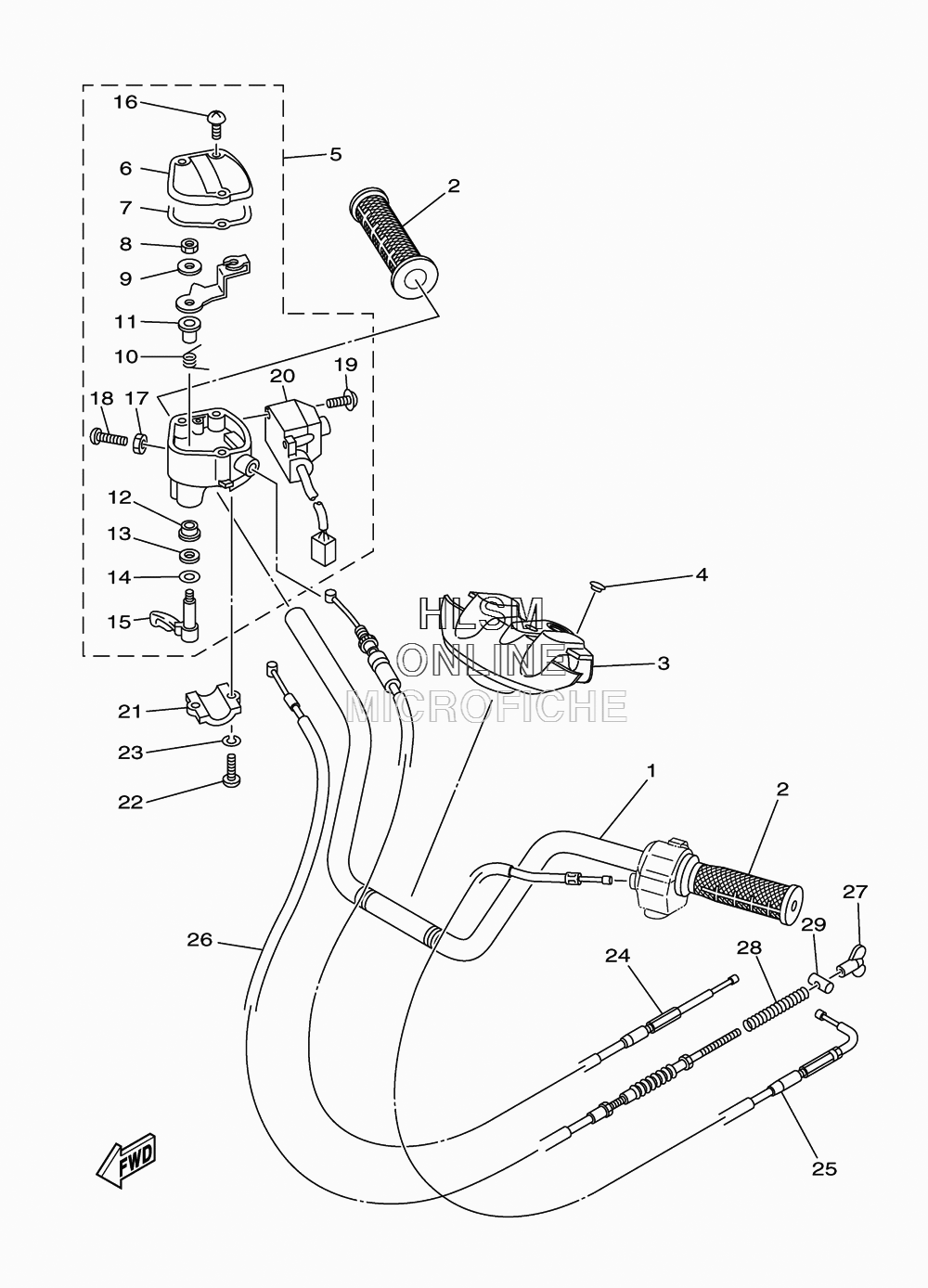

HANDLEBAR W/ CABLES для Yamaha GRIZZLY 350 4WD - 2013 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
35ND-F6124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
490338-14827-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
54WV-26250-11-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
64KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
74KB-2628G-00-00 ...GASKET...GASKET
-
895602-05100-00 ...NUT, U...NUT, U
-
91NV-26398-00-00 ...WASHER...WASHER
-
101NV-26304-00-00 ...SPRING...SPRING
-
111NV-26259-01-00 ...COLLAR...COLLAR
-
121NV-2625K-00-00 ...COLLAR...COLLAR
-
1393104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
141NV-26129-00-00 ...WASHER...WASHER
-
151NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1690149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1795307-05700-00 ...NUT...NUT
-
1898507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1997602-04110-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
204WV-83976-00-00 ...SWITCH, HANDLE 1...SWITCH, HANDLE 1
-
211S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2298502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392902-05600-00 WASHER, PLATEWASHER, PLATE
-
245GH-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
255VH-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
261NS-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2720E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
2890501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2990249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
