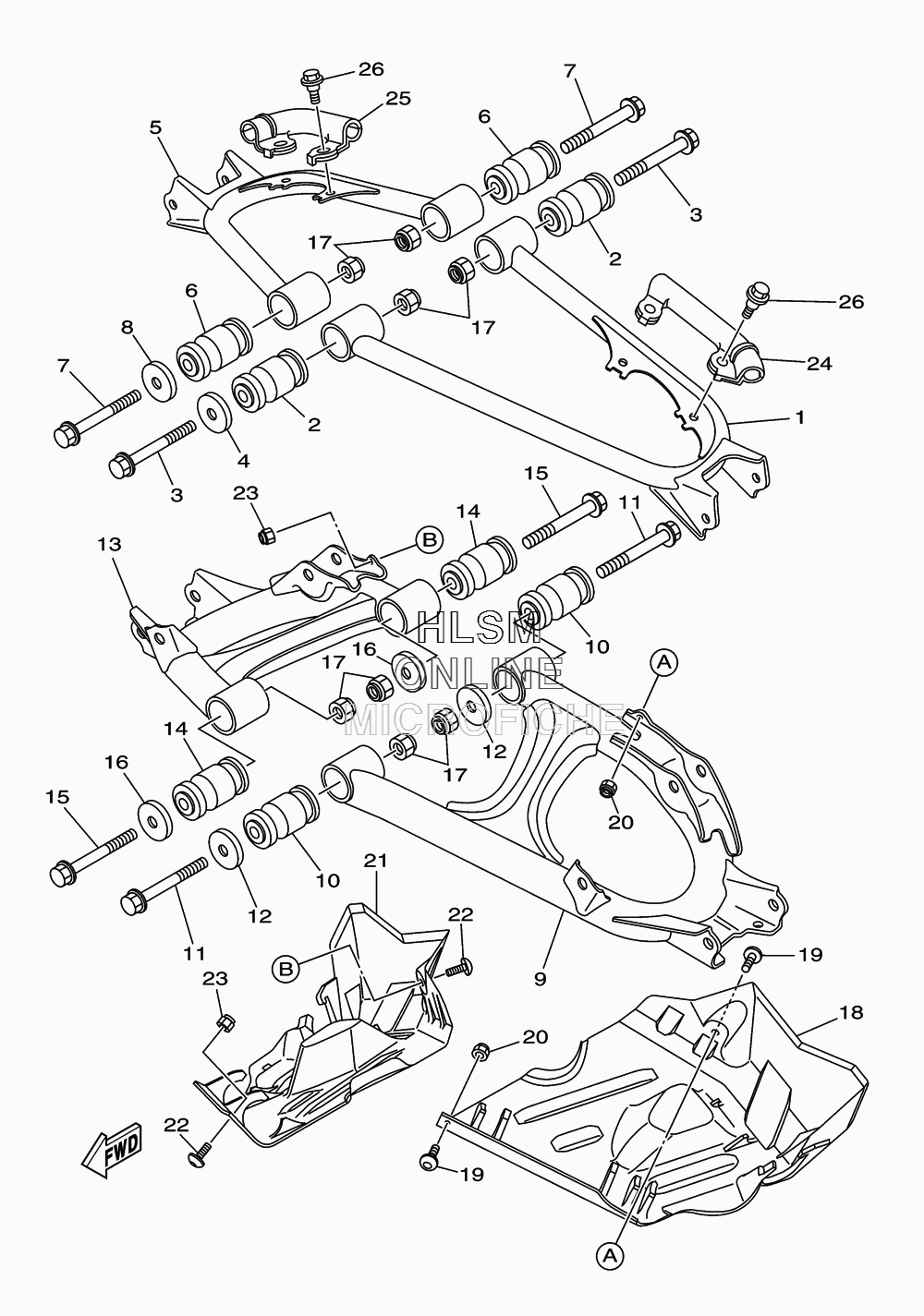

SUSPENSION - REAR ARM для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2013 года выпуска
-
№АртикулНазвание
-
11HP-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
21HP-F3526-00-00 BUSHBUSH
-
390105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
45KM-22149-10-00 WASHERWASHER
-
51HP-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
61HP-F3526-00-00 BUSHBUSH
-
790105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
85KM-22149-10-00 WASHERWASHER
-
91HP-F217M-00-00 ARM 1ARM 1
-
101HP-F3526-00-00 BUSHBUSH
-
1190105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
125KM-22149-10-00 WASHERWASHER
-
131HP-F217N-00-00 ARM 2ARM 2
-
141HP-F3526-00-00 BUSHBUSH
-
1590105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
165KM-22149-10-00 WASHERWASHER
-
1790185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
181HP-F2128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1990111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2095702-06300-00 NUT, NYLONNUT, NYLON
-
211HP-F2129-00-00 COVER, THRUST 2COVER, THRUST 2
-
2290111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2395702-06300-00 NUT, NYLONNUT, NYLON
-
241HP-F315H-00-00 PROTECTOR 1PROTECTOR 1
-
251HP-F315J-00-00 PROTECTOR 2PROTECTOR 2
-
2690109-06840-00 BOLTBOLT
