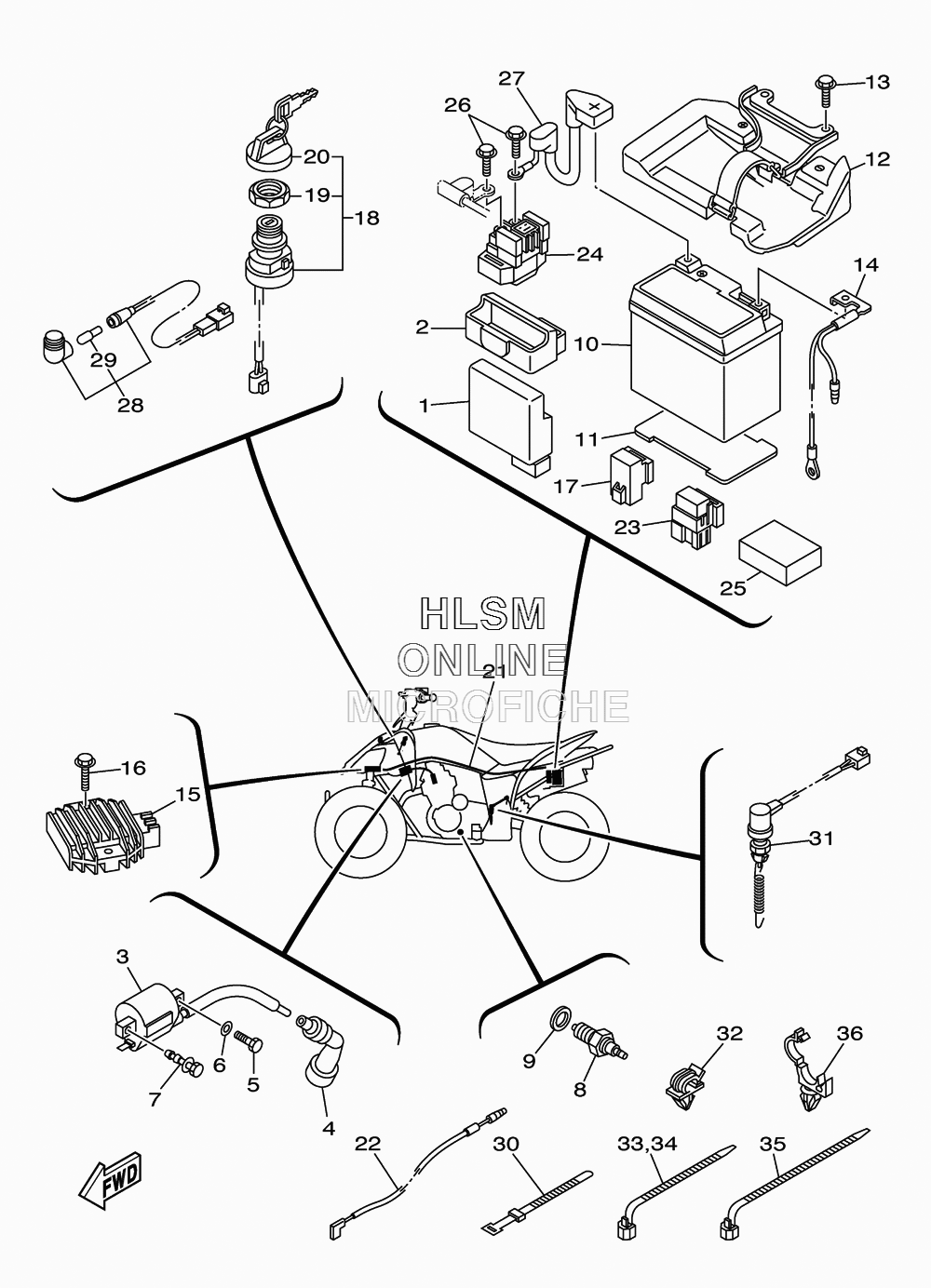

ELECTRICAL для Yamaha RAPTOR 250 - 2013 года выпуска
-
№АртикулНазвание
-
14D3-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
24D3-85546-00-00 BANDBAND
-
33NS-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
43NS-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
597002-06020-00 BOLTBOLT
-
692902-06600-00 WASHER, PLATEWASHER, PLATE
-
790109-06723-00 BOLTBOLT
-
83GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
990430-10148-00 GASKETGASKET
-
101S4-82100-10-00 BATTERY ASSY (YTZ7S)BATTERY ASSY (YTZ7S)
-
114D3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
124D3-82106-10-00 BATTERY PLATE COMPBATTERY PLATE COMP
-
1395812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
144D3-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
155GT-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1695802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
171RL-81950-92-00 RELAY ASSYRELAY ASSY
-
185LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
193HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
203HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
214D3-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
224D3-82541-00-00 WIRE, LEADWIRE, LEAD
-
235DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
244D3-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
254D3-8252R-00-00 DAMPERDAMPER
-
2695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
274D3-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
284D3-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
295GH-83516-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
30437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
314D3-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
3290464-07011-00 CLAMPCLAMP
-
3390464-13073-00 CLAMPCLAMP
-
3490464-13073-00 CLAMPCLAMP
-
3590464-15195-00 CLAMPCLAMP
-
3690464-20010-00 CLAMPCLAMP
