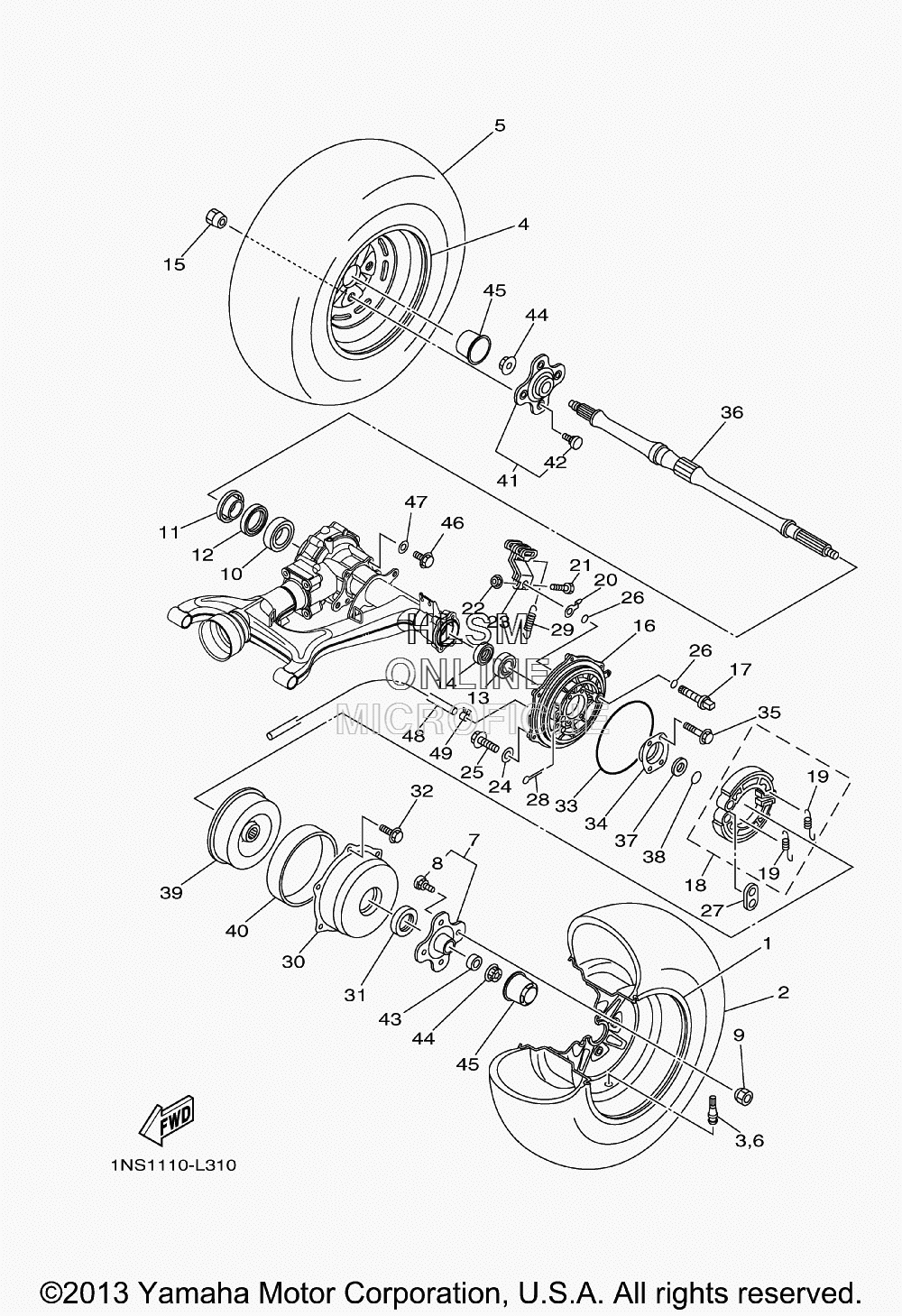

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 350 HUNTING - 2014 года выпуска
-
№АртикулНазвание
-
11NS-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12813-00 TIRE (AT25X10-12 MU14TL) CHENG SHINTIRE (AT25X10-12 MU14TL) CHENG SHIN
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41NS-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-12813-00 TIRE (AT25X10-12 MU14TL) CHENG SHINTIRE (AT25X10-12 MU14TL) CHENG SHIN
-
693900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
71NS-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
81P0-F5411-00-00 ...BOLT...BOLT
-
990179-10022-00 NUTNUT
-
1093306-008Y0-00 BEARINGBEARING
-
114SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1293106-47040-00 OIL SEAL DD-TYPEOIL SEAL DD-TYPE
-
1393306-278Y0-00 BEARINGBEARING
-
1493101-35097-00 OIL SEAL S-TYPEOIL SEAL S-TYPE
-
1590179-10022-00 NUTNUT
-
165VH-F5321-01-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
175VH-F5351-01-00 CAMSHAFTCAMSHAFT
-
185VH-WF536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
195VH-F5333-00-00 ...SPRING, RETURN...SPRING, RETURN
-
205VH-F533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
2190101-06824-00 BOLTBOLT
-
229560L-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
235VH-F5355-01-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
245VH-F5898-00-00 GASKETGASKET
-
255VH-F5818-00-00 BOLT, CALIPERBOLT, CALIPER
-
265VH-F5359-00-00 SEAL, CAMSHAFTSEAL, CAMSHAFT
-
275VH-F539F-01-00 PLATE 1PLATE 1
-
2891402-25020-00 PIN, COTTERPIN, COTTER
-
2990506-16482-00 SPRING, TENSIONSPRING, TENSION
-
305FU-F5327-01-00 COVER, PLATECOVER, PLATE
-
315FU-F5319-10-00 SEAL, HUB DUSTSEAL, HUB DUST
-
3295812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
335FU-F537Y-00-00 SEAL, DUSTSEAL, DUST
-
344XE-G6513-00-00 RETAINERRETAINER
-
3590105-088A4-00 BOLT, FLANGEBOLT, FLANGE
-
361NS-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
3790387-284T0-00 COLLARCOLLAR
-
3893210-26606-00 O-RINGO-RING
-
395FU-F531E-10-00 DRUM, BRAKEDRUM, BRAKE
-
405FU-F5336-00-00 RING 2RING 2
-
411NS-F5186-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
421P0-F5411-00-00 ...BOLT...BOLT
-
431NS-F5384-00-00 WASHER, WHEELWASHER, WHEEL
-
4490179-20016-00 NUTNUT
-
451NS-F530B-00-00 WHEEL CAP ASSY.WHEEL CAP ASSY.
-
4690105-10287-00 BOLT, FLANGEBOLT, FLANGE
-
4790201-10035-00 .WASHER, PLATE.WASHER, PLATE
-
4890445-07807-00 HOSE (L1150)HOSE (L1150)
-
4990467-070A0-00 CLIPCLIP
