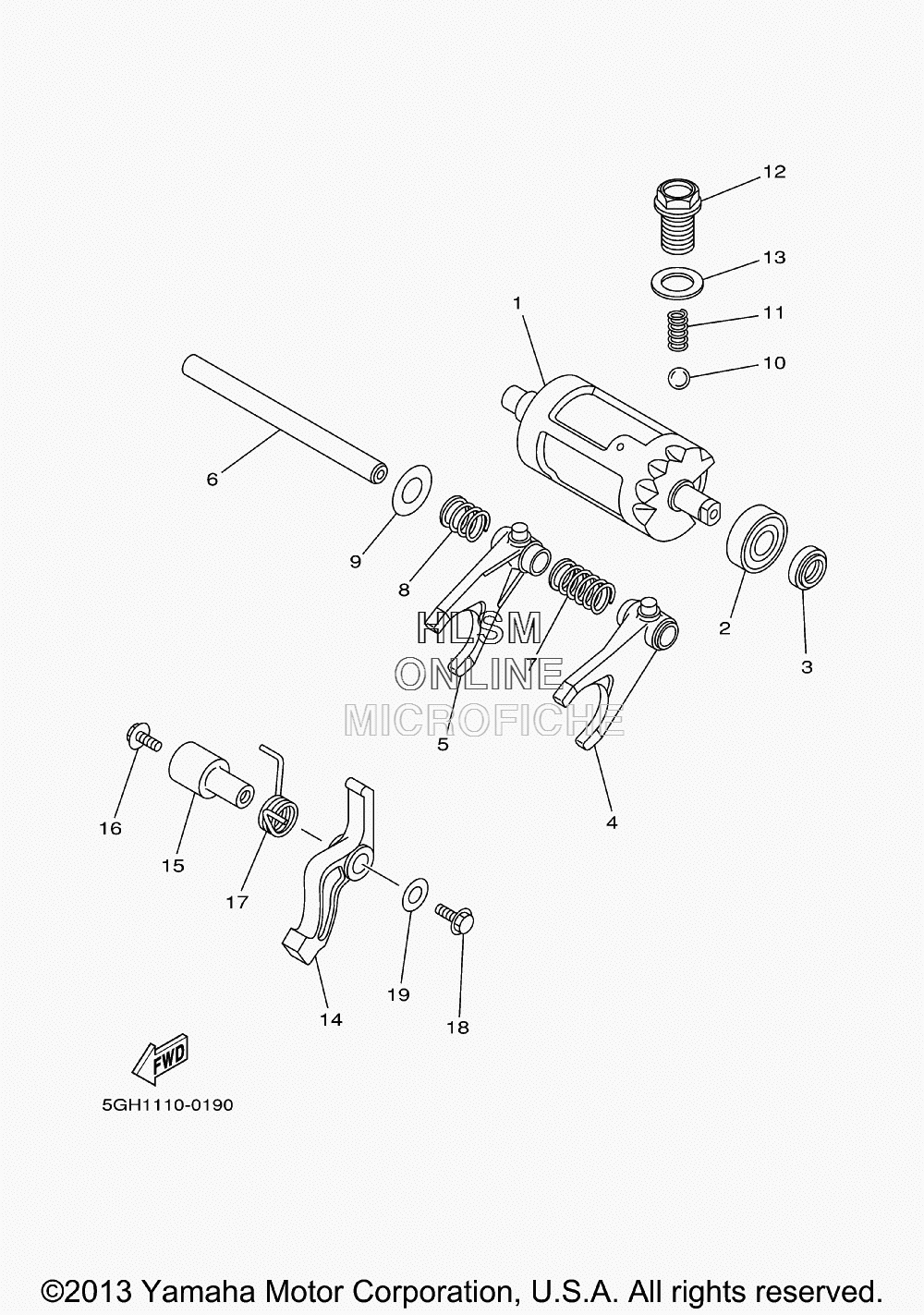

SHIFT CAM W/ FORK для Yamaha GRIZZLY 450 HUNTING - 2014 года выпуска
-
№АртикулНазвание
-
15ND-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293306-00208-00 BEARINGBEARING
-
393102-15212-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
41D9-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
51D9-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
64KB-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
790501-130A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
890501-166L4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990201-15564-00 WASHER, PLATE (1.5T)WASHER, PLATE (1.5T)
-
1093503-08007-00 BALL 3/8BALL 3/8
-
1190501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1290105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
1390430-14194-00 GASKETGASKET
-
145GH-18148-00-00 LEVER, STOPPERLEVER, STOPPER
-
155GH-1812E-00-00 SHAFT, STOPPERSHAFT, STOPPER
-
1695022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1790508-235B7-00 SPRING, TORSIONSPRING, TORSION
-
1895022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-06060-00 WASHER, PLATEWASHER, PLATE
