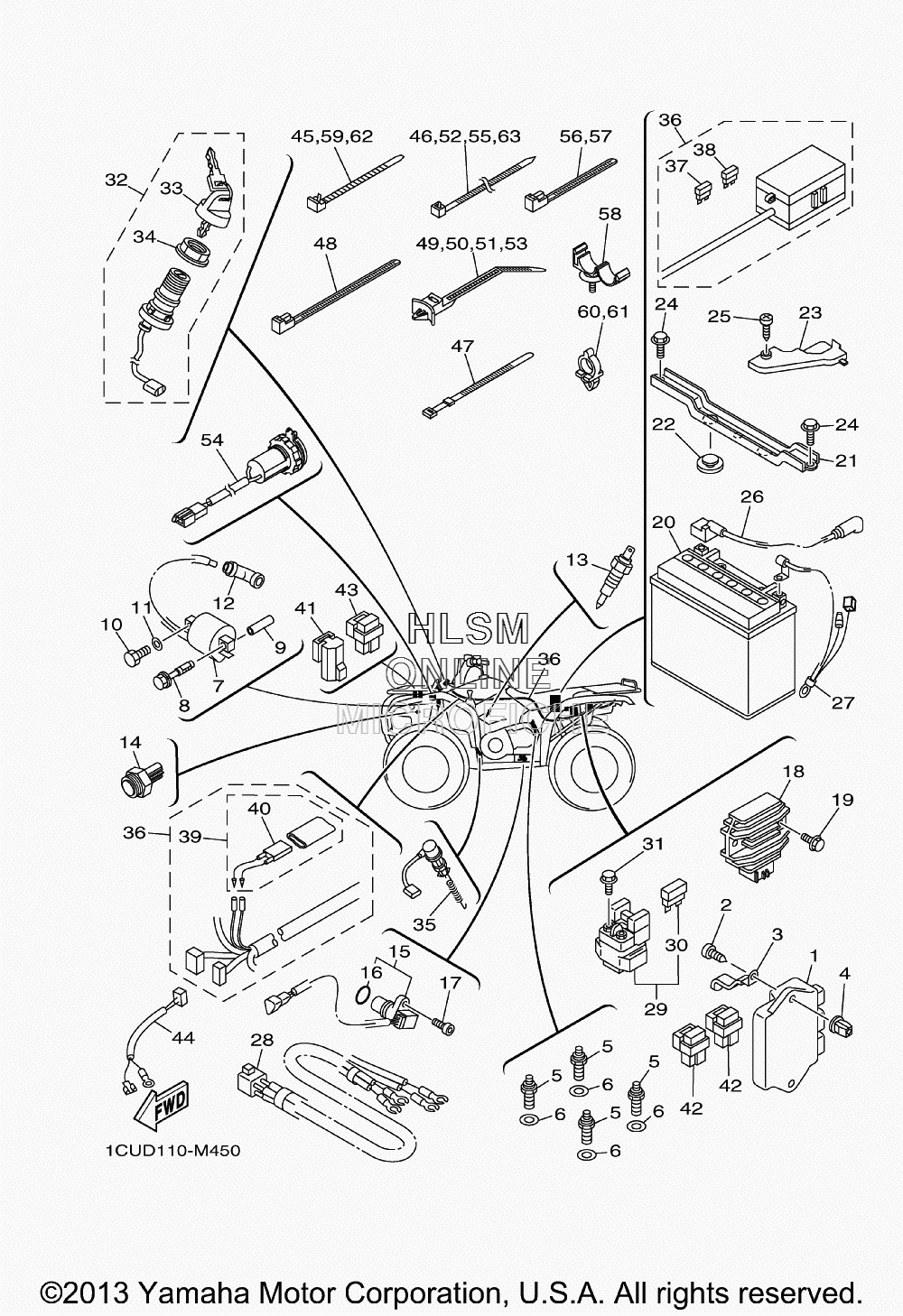

ELECTRICAL для Yamaha GRIZZLY 450 - 2014 года выпуска
-
№АртикулНазвание
-
117S-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
297702-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
53GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
690430-10148-00 GASKETGASKET
-
73KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
890109-06865-00 BOLTBOLT
-
95UH-H1318-00-00 SPACERSPACER
-
1097002-06020-00 BOLTBOLT
-
1192902-06600-00 WASHER, PLATEWASHER, PLATE
-
121UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
135KM-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
145ND-82560-10-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
153C2-83755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
164D9-81168-00-00 ...O-RING...O-RING
-
1790110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1990105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
205FU-H2100-20-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
215ND-H2128-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
22371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
235ND-H2119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
2490105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
2597702-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
265ND-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
275ND-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
285ND-82541-01-00 WIRE, LEADWIRE, LEAD
-
294SV-81940-12-00 STARTER RELAY ASSY (RC19-015)STARTER RELAY ASSY (RC19-015)
-
301AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3195022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
325ND-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
333HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
343HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
354KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
361CU-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
375JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
385JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
395ND-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
405ND-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
4129U-81950-93-00 RELAY ASSY (ACA12115-1)RELAY ASSY (ACA12115-1)
-
425DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
435DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
445KM-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4590464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
4690464-48800-00 CLAMPCLAMP
-
47437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4890464-40825-00 CLAMPCLAMP
-
4990464-38800-00 CLAMPCLAMP
-
5090464-38800-00 CLAMPCLAMP
-
5190464-38800-00 CLAMPCLAMP
-
5290464-48800-00 CLAMPCLAMP
-
5390464-38800-00 CLAMPCLAMP
-
541HP-H254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
5590464-48800-00 CLAMPCLAMP
-
5690464-31827-00 CLAMP (122X4.80)CLAMP (122X4.80)
-
5790464-31827-00 CLAMP (122X4.80)CLAMP (122X4.80)
-
5890464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
-
5990464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
6090464-10833-00 CLAMPCLAMP
-
6190464-10833-00 CLAMPCLAMP
-
6290464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
6390464-48800-00 CLAMPCLAMP
