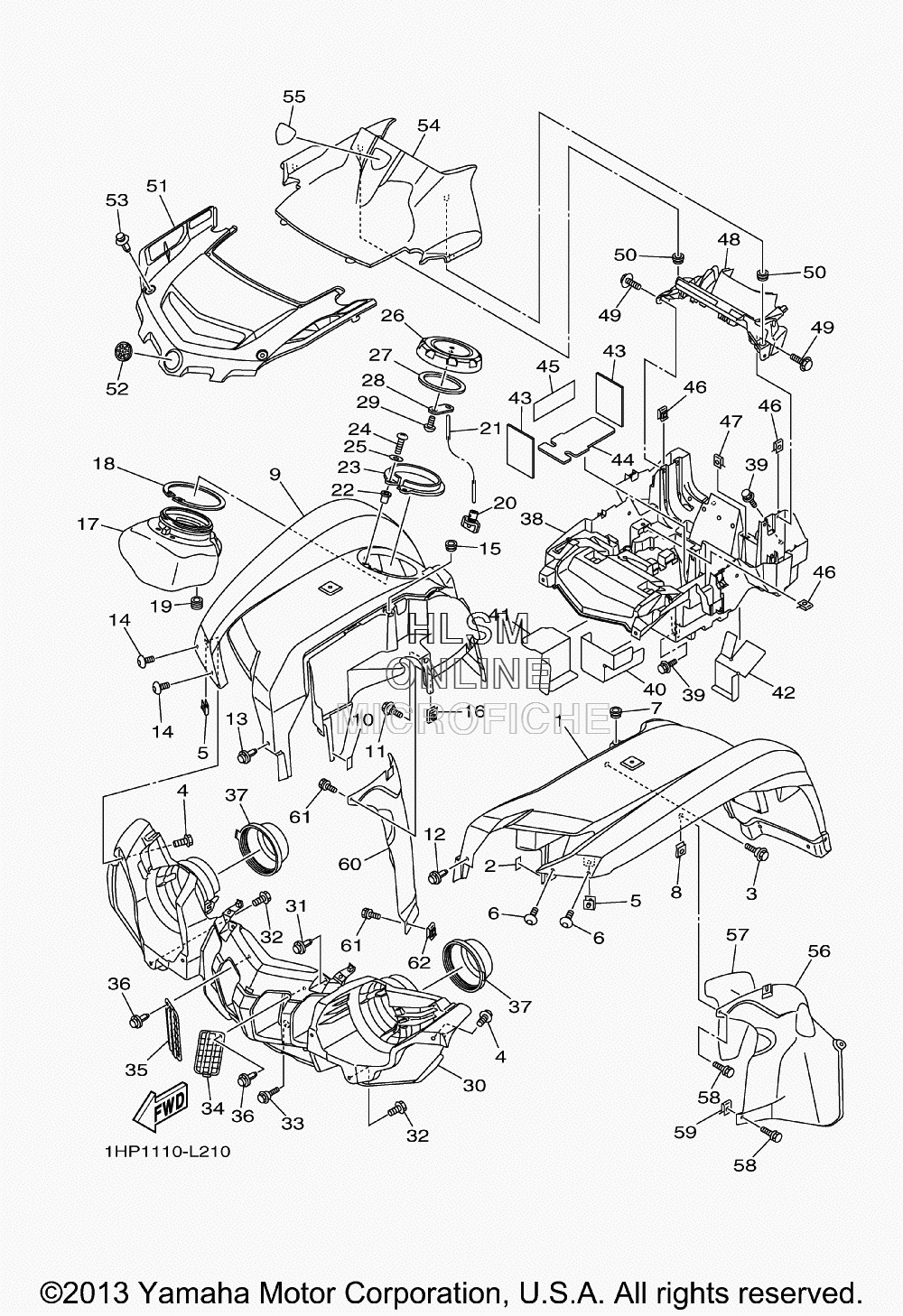

FENDER - FRONT для Yamaha GRIZZLY 550 FI EPS - 2014 года выпуска
-
№АртикулНазвание
-
11HP-F1500-00-00 FRONT FENDER ASSY FOR PDGFRONT FENDER ASSY FOR PDG
-
11HP-F1500-20-00 FRONT FENDER ASSY FOR DPBSNFRONT FENDER ASSY FOR DPBSN
-
11HP-F1500-L0-00 FRONT FENDER ASSY FOR RTRFRONT FENDER ASSY FOR RTR
-
23B4-21541-00-00 DAMPER 1DAMPER 1
-
390109-06172-00 BOLTBOLT
-
490119-05193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590183-051A0-00 NUT, SPRINGNUT, SPRING
-
690149-05034-00 SCREWSCREW
-
790480-13398-00 GROMMETGROMMET
-
890183-06053-00 NUT, SPRINGNUT, SPRING
-
91HP-F1556-00-00 FENDER, FRONT 2 FOR PDGFENDER, FRONT 2 FOR PDG
-
91HP-F1556-10-00 FENDER, FRONT 2 FOR DPBSNFENDER, FRONT 2 FOR DPBSN
-
91HP-F1556-30-00 FENDER, FRONT 2 FOR RTRFENDER, FRONT 2 FOR RTR
-
103B4-21541-00-00 DAMPER 1DAMPER 1
-
1190109-06172-00 BOLTBOLT
-
1290269-07012-00 RIVETRIVET
-
1390269-07012-00 RIVETRIVET
-
1490149-05034-00 SCREWSCREW
-
1590480-13398-00 GROMMETGROMMET
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
-
171HP-F838K-00-00 BOX 1BOX 1
-
183B4-2838M-00-00 SEAL, BOX 1SEAL, BOX 1
-
1990480-13004-00 GROMMETGROMMET
-
203B4-215A1-00-00 PLUG, DRAINPLUG, DRAIN
-
213B4-2845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
2290179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
233B4-2839N-00-00 HOLDERHOLDER
-
2498502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2592902-05600-00 WASHER, PLATEWASHER, PLATE
-
261HP-F151B-00-00 CAPCAP
-
273B4-28307-00-00 SEALSEAL
-
283B4-28487-00-00 PLATE 2PLATE 2
-
2990164-05800-00 SCREW, TAPPINGSCREW, TAPPING
-
301HP-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
3190269-07010-00 RIVETRIVET
-
3290119-05193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390109-06172-00 BOLTBOLT
-
343B4-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
353B4-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
3690269-07077-00 RIVETRIVET
-
373B4-28349-00-00 CAPCAP
-
381HP-H212B-01-00 BOX, BATTERY 1BOX, BATTERY 1
-
3990119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
401HP-H253E-00-00 INSULATOR 1INSULATOR 1
-
411HP-H253F-00-00 INSULATOR 2INSULATOR 2
-
421HP-H254E-00-00 INSULATORINSULATOR
-
433B4-8233W-10-00 INSU.INSU.
-
443B4-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
451HP-H2176-00-00 DAMPERDAMPER
-
4690183-06053-00 NUT, SPRINGNUT, SPRING
-
4790183-05008-00 NUT, SPRINGNUT, SPRING
-
481HP-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
4990119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5090480-13567-00 GROMMETGROMMET
-
511HP-F3391-00-00 PANEL, FRONTPANEL, FRONT
-
525FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
5390269-07010-00 RIVETRIVET
-
541HP-F8313-00-00 LIDLID
-
553B4-26232-01-00 EMBLEM 3DEMBLEM 3D
-
561HP-F1552-00-00 FENDER, INNERFENDER, INNER
-
571HP-F1575-00-00 SEAL 1SEAL 1
-
5890119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5990183-06053-00 NUT, SPRINGNUT, SPRING
-
601HP-F1553-00-00 FENDER, INNER 2FENDER, INNER 2
-
6190119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6290183-06053-00 NUT, SPRINGNUT, SPRING
