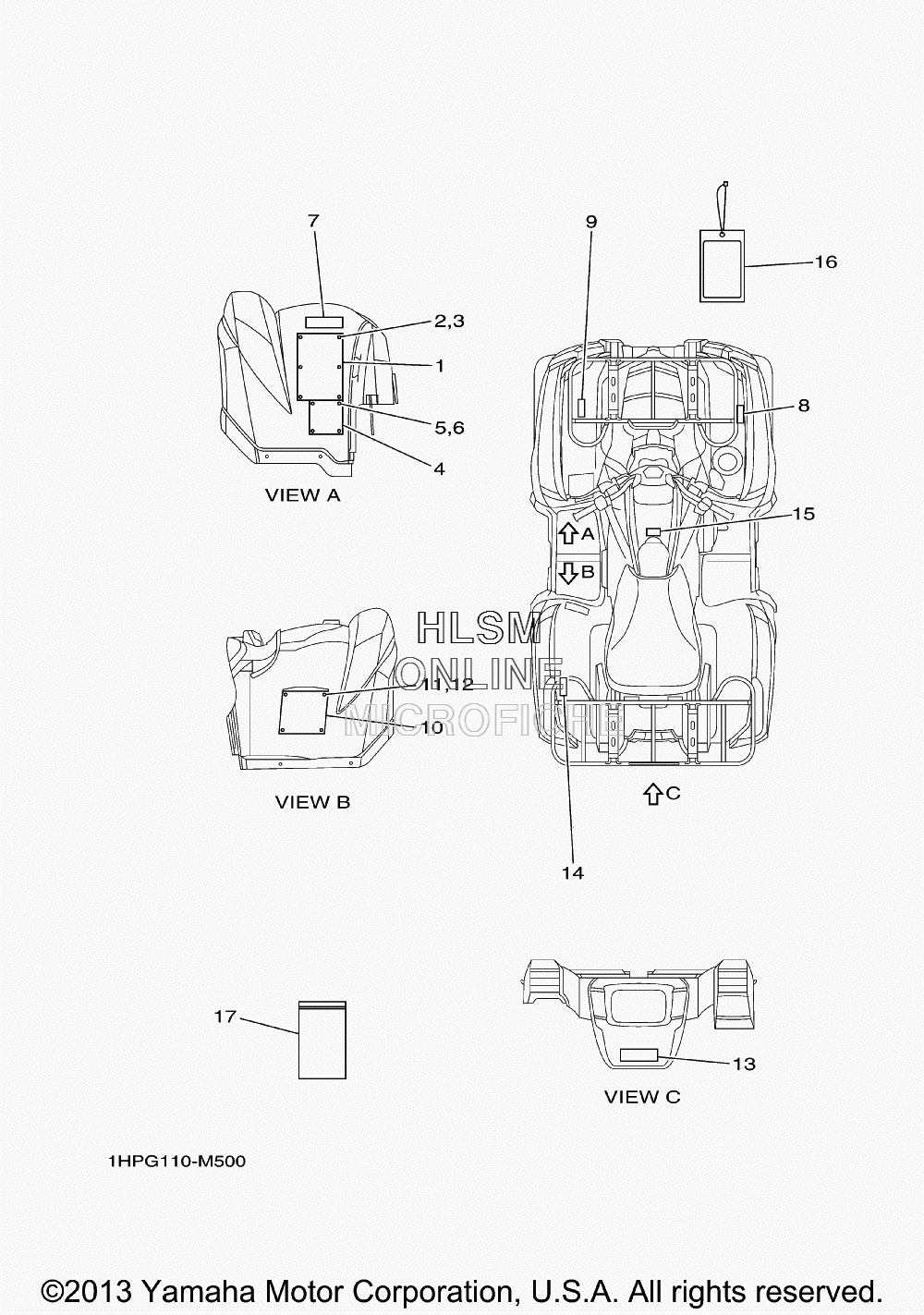

DECALS для Yamaha GRIZZLY 550 FI - 2014 года выпуска
-
№АртикулНазвание
-
14XE-F1568-00-00 LABEL, WARNING (ENGLISH)LABEL, WARNING (ENGLISH)
-
24XE-F1539-10-00 RIVETRIVET
-
34XE-F1549-00-00 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
41P0-F816L-00-00 LABEL, WARNING AGE (ENGLISH)LABEL, WARNING AGE (ENGLISH)
-
54XE-F1539-10-00 RIVETRIVET
-
64XE-F1549-00-00 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
75ND-F151E-00-00 LABEL 2 (ENGLISH)LABEL 2 (ENGLISH)
-
837S-F151F-U0-00 LABEL 3LABEL 3
-
91HP-F4877-U0-00 LABEL, CAUTIONLABEL, CAUTION
-
101HP-F816M-U0-00 LABEL, WARNING TIRE & LOADLABEL, WARNING TIRE & LOAD
-
114XE-F1539-10-00 RIVETRIVET
-
124XE-F1549-00-00 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
1337S-F151K-00-00 LABEL 7 (ENGLISH)LABEL 7 (ENGLISH)
-
141HP-F4897-00-00 EMBLEMEMBLEM
-
155ND-F1558-00-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
164XE-F819R-20-00 TAG, WARNINGTAG, WARNING
-
171P0-F8186-01-00 POUCHPOUCH
