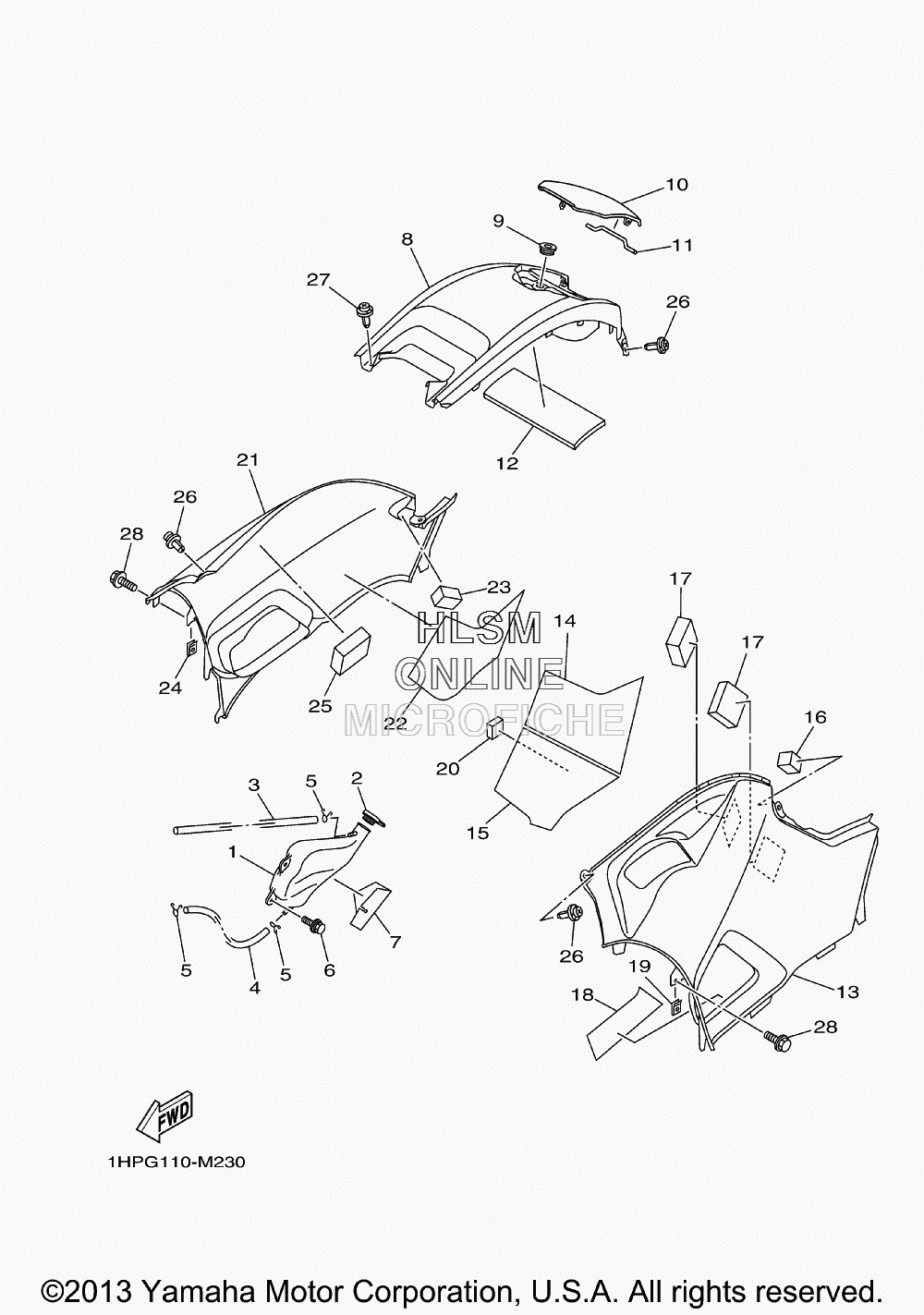

SIDE COVER для Yamaha GRIZZLY 700 FI - 2014 года выпуска
-
№АртикулНазвание
-
11HP-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21S3-21875-00-00 CAPCAP
-
390445-08841-00 HOSE (L540)HOSE (L540)
-
490445-08840-00 HOSE (L420)HOSE (L420)
-
590467-08003-00 CLIPCLIP
-
690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
71HP-F176E-00-00 PLATEPLATE
-
81HP-F171A-00-00 COVER, TOPCOVER, TOP
-
990480-01558-00 GROMMETGROMMET
-
101HP-F177B-00-00 LID, COVERLID, COVER
-
113B4-2177K-00-00 PIN, HINGEPIN, HINGE
-
123B4-21747-01-00 DAMPERDAMPER
-
131HP-F1711-00-00 COVER, SIDE 1 FOR PDGCOVER, SIDE 1 FOR PDG
-
131HP-F1711-10-00 COVER, SIDE 1 FOR DPBSNCOVER, SIDE 1 FOR DPBSN
-
143B4-2174A-00-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
-
153B4-2173N-00-00 SEAL 4SEAL 4
-
163B4-21717-00-00 DAMPERDAMPER
-
173B4-2174Y-00-00 DAMPERDAMPER
-
183B4-2173M-00-00 SEAL 3SEAL 3
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
203B4-2177N-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
211HP-F1721-00-00 COVER, SIDE 2 FOR PDGCOVER, SIDE 2 FOR PDG
-
211HP-F1721-10-00 COVER, SIDE 2 FOR DPBSNCOVER, SIDE 2 FOR DPBSN
-
221HP-F174T-00-00 INSULATOR, SIDE COVER 2INSULATOR, SIDE COVER 2
-
233B4-21717-00-00 DAMPERDAMPER
-
2490183-06053-00 NUT, SPRINGNUT, SPRING
-
253B4-2174Y-00-00 DAMPERDAMPER
-
2690269-07012-00 RIVETRIVET
-
2790269-06081-00 RIVETRIVET
-
2890119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
