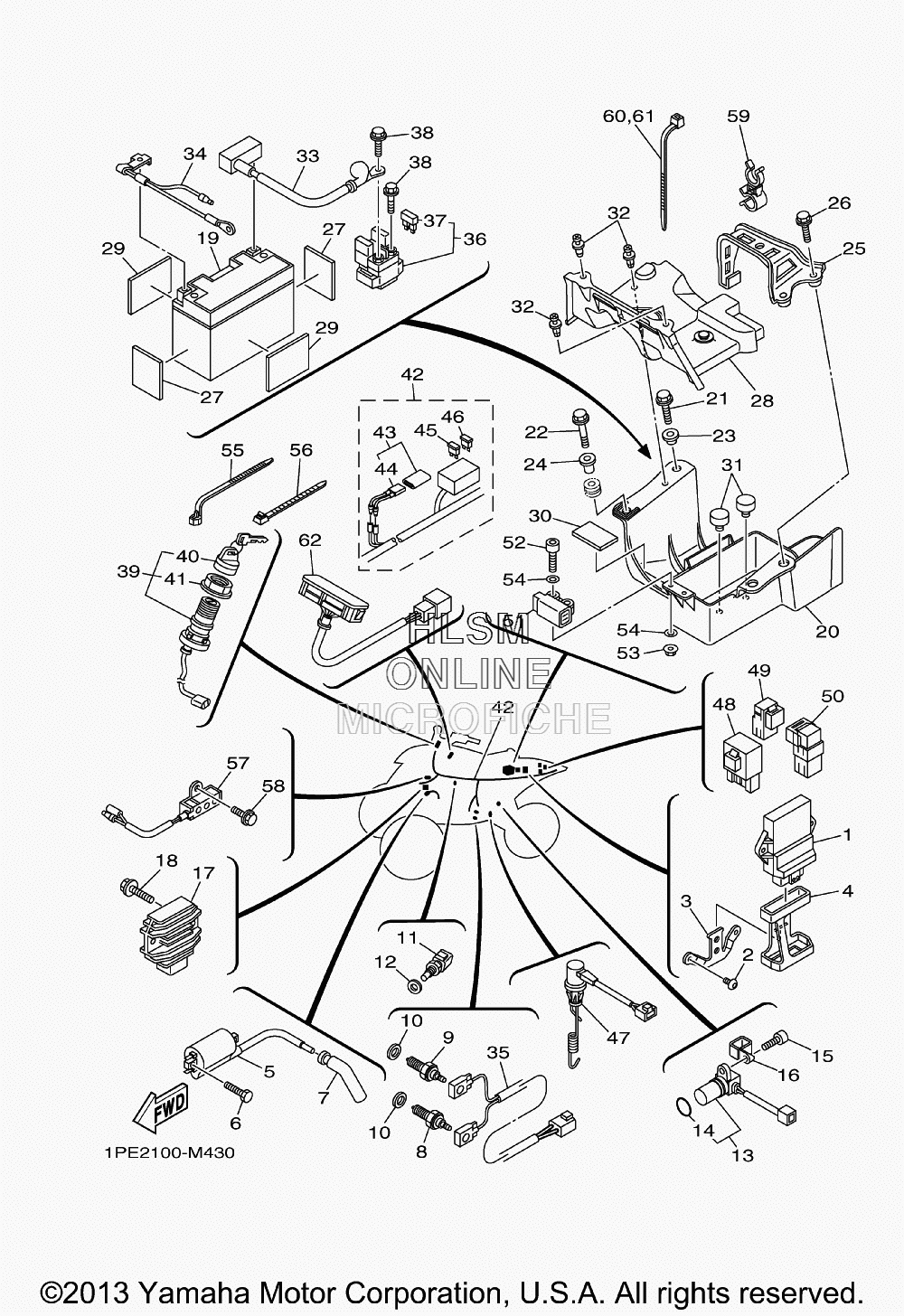

ELECTRICAL для Yamaha RAPTOR 700 - 2014 года выпуска
-
№АртикулНазвание
-
11S3-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
31S3-21274-00-00 BRACKET, C.D.I. UNITBRACKET, C.D.I. UNIT
-
41S3-85546-00-00 BANDBAND
-
53TB-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
697002-05020-00 BOLTBOLT
-
75VK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
85LP-82540-01-00 REVERSE SWITCH ASSYREVERSE SWITCH ASSY
-
93GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1090430-10148-00 GASKETGASKET
-
115PS-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1290430-12202-00 GASKETGASKET
-
131S3-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
144D9-81168-00-00 ...O-RING...O-RING
-
1591312-06016-00 BOLTBOLT
-
1690461-10004-00 CLAMPCLAMP
-
175BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1895812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
191PE-H2100-00-00 BATTERY ASSY (GS GT9B-4)BATTERY ASSY (GS GT9B-4)
-
201PE-H212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
2190105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2295802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-06153-00 COLLARCOLLAR
-
2490387-063E6-00 COLLARCOLLAR
-
251PE-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
2695802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
271S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
281PE-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
294HC-27415-00-00 PLATE, FOOTRESTPLATE, FOOTREST
-
3022F-2139X-00-00 DAMPERDAMPER
-
315TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
3290269-06002-00 RIVETRIVET
-
331PE-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
341PE-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
351S3-82541-00-00 WIRE, LEADWIRE, LEAD
-
365UG-81940-00-00 STARTER RELAY ASSY (2768112-A)STARTER RELAY ASSY (2768112-A)
-
371AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
394SH-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
403HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
413HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
421PE-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
433D5-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
443D5-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
455JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
465JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
471S3-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
485VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
495EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
505DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
515PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
5291312-04025-00 BOLTBOLT
-
5395702-04500-00 NUT, FLANGENUT, FLANGE
-
5490201-04030-00 WASHER, PLATEWASHER, PLATE
-
5590464-15195-00 CLAMPCLAMP
-
5690465-13M11-00 CLAMPCLAMP
-
571S3-85370-00-00 RESISTOR ASSYRESISTOR ASSY
-
5895812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
5990464-16013-00 CLAMPCLAMP
-
6090465-10098-00 CLAMPCLAMP
-
6190465-10098-00 CLAMPCLAMP
-
621S3-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
