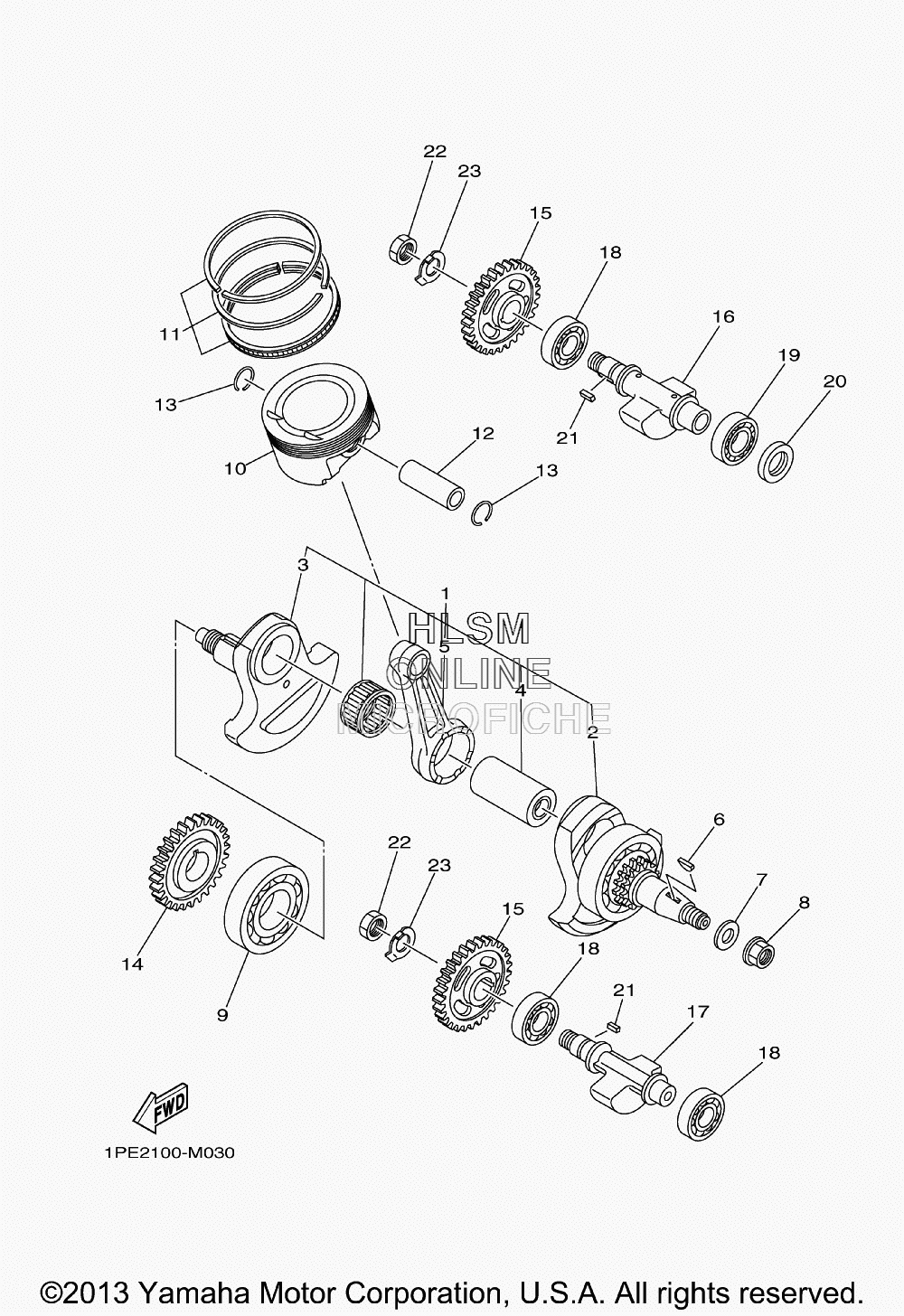

CRANKSHAFT - PISTON для Yamaha RAPTOR 700R SE - 2014 года выпуска
-
№АртикулНазвание
-
11PE-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
21S3-11401-09-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
31S3-11422-00-00 ...CRANK 2...CRANK 2
-
41S3-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
51PE-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
690280-05001-00 KEY, WOODRUFFKEY, WOODRUFF
-
790201-16013-00 WASHER, PLATEWASHER, PLATE
-
890179-16004-00 NUTNUT
-
993306-30810-00 BEARINGBEARING
-
101S3-11631-10-00 PISTON (STD)PISTON (STD)
-
111S3-11603-10-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
125VK-11633-00-00 PIN, PISTONPIN, PISTON
-
1393450-24154-00 CIRCLIPCIRCLIP
-
141S3-11536-10-00 GEAR, DRIVEGEAR, DRIVE
-
151S3-11531-10-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
161S3-11454-00-00 WEIGHT 1WEIGHT 1
-
171S3-11464-00-00 WEIGHT 2WEIGHT 2
-
1893306-20481-00 BEARINGBEARING
-
1993306-00502-00 BEARINGBEARING
-
2093101-25106-00 OIL SEAL S-TYPEOIL SEAL S-TYPE
-
2190282-05005-00 KEY, STRAIGHTKEY, STRAIGHT
-
2290170-16326-00 NUTNUT
-
2390215-16221-00 WASHER, LOCKWASHER, LOCK
