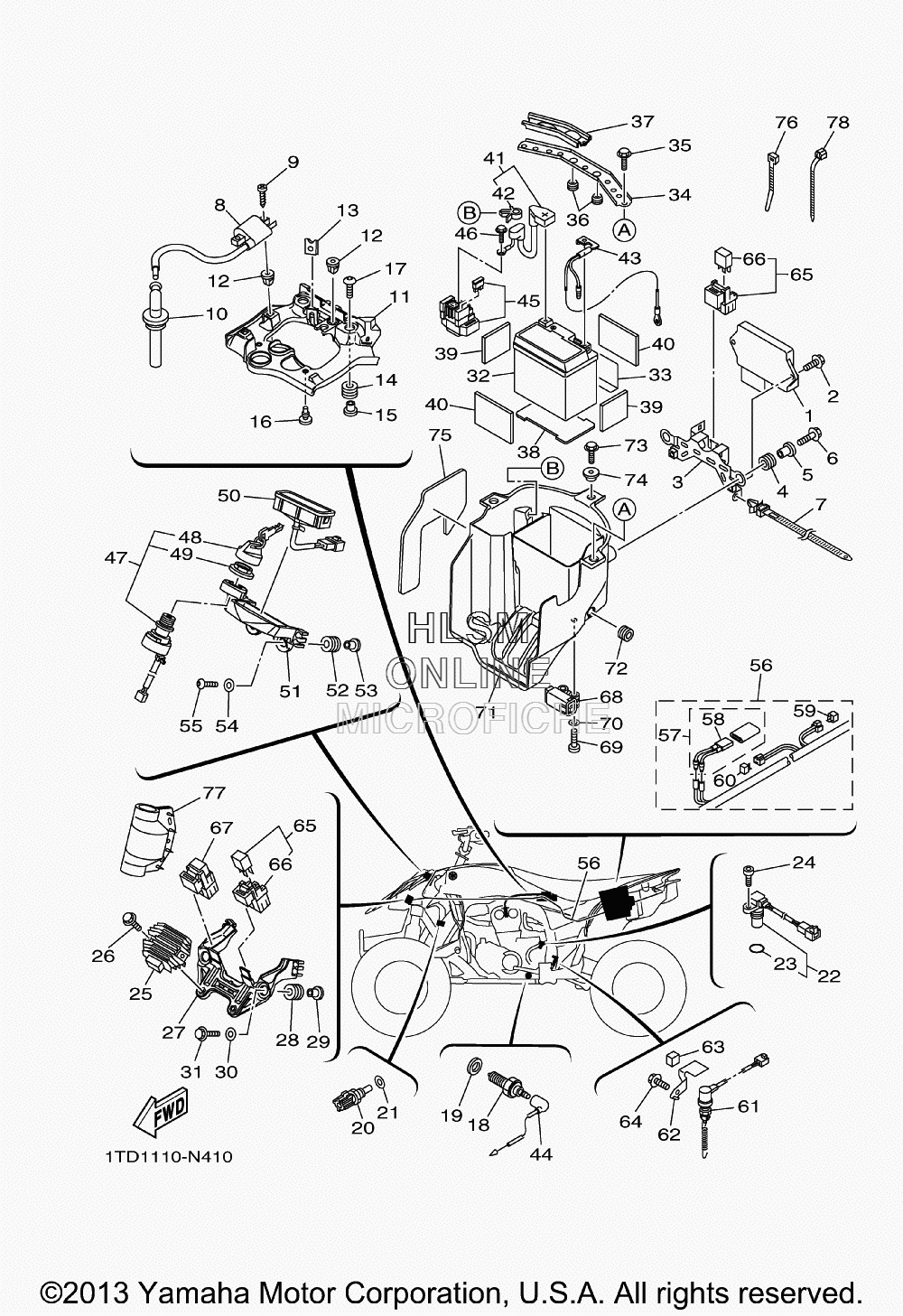

ELECTRICAL для Yamaha YFZ 450R (CARMINE RED) - 2014 года выпуска
-
№АртикулНазвание
-
11TD-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
318P-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
490480-14011-00 GROMMETGROMMET
-
590387-06388-00 COLLARCOLLAR
-
695812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
790464-12036-00 CLAMPCLAMP
-
818P-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
997702-60125-00 SCREW, TAPPINGSCREW, TAPPING
-
1018P-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
1118P-81948-00-00 BRACKETBRACKET
-
1290338-08226-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
1390183-060A6-00 NUT, SPRINGNUT, SPRING
-
1490480-14323-00 GROMMETGROMMET
-
1590387-06161-00 COLLARCOLLAR
-
1690338-05008-00 PLUGPLUG
-
1790111-06084-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
183GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1990430-10148-00 GASKETGASKET
-
205YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2190430-12202-00 GASKETGASKET
-
2218P-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
234D9-81168-00-00 ...O-RING...O-RING
-
2491312-06016-00 BOLTBOLT
-
255BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2695802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2718P-87208-00-00 STAY, REGULATORSTAY, REGULATOR
-
2890480-10289-00 GROMMETGROMMET
-
2990387-06204-00 COLLARCOLLAR
-
3090201-06078-00 WASHER, PLATEWASHER, PLATE
-
3195802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
321TD-H2100-00-00 BATTERY ASSY (YTZ7S)BATTERY ASSY (YTZ7S)
-
3318P-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
3418P-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
3590105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
3690338-12192-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
3718P-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
384D3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
395MP-21747-00-00 DAMPERDAMPER
-
404HC-27415-00-00 PLATE, FOOTRESTPLATE, FOOTREST
-
4118P-W8211-10-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
4290464-12001-00 ...CLAMP...CLAMP
-
4318P-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
4418P-82541-00-00 WIRE, LEADWIRE, LEAD
-
4518P-81940-00-00 STARTER RELAY ASSY (RC19-084A)STARTER RELAY ASSY (RC19-084A)
-
4695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
474SH-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
483HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
493HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
5018P-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
5118P-8361L-00-00 BRACKET, INDICATORBRACKET, INDICATOR
-
5290480-10289-00 GROMMETGROMMET
-
5390387-06204-00 COLLARCOLLAR
-
5490201-06078-00 WASHER, PLATEWASHER, PLATE
-
5592012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
561TD-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
573D5-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
583D5-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
594WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
603WP-81980-00-00 ...RECTIFIER 2...RECTIFIER 2
-
6118P-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
6218P-8246B-10-00 COVER 1COVER 1
-
631TD-2177N-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
6495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
655EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
665EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
675DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
685PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
6991312-04025-00 BOLTBOLT
-
7090201-04030-00 WASHER, PLATEWASHER, PLATE
-
7118P-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
7290480-12007-00 GROMMETGROMMET
-
7390105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
7490387-06153-00 COLLARCOLLAR
-
7518P-8254E-00-00 INSULATORINSULATOR
-
7690465-10098-00 CLAMPCLAMP
-
775RU-8252U-00-00 COVERCOVER
-
7890464-13073-00 CLAMPCLAMP
