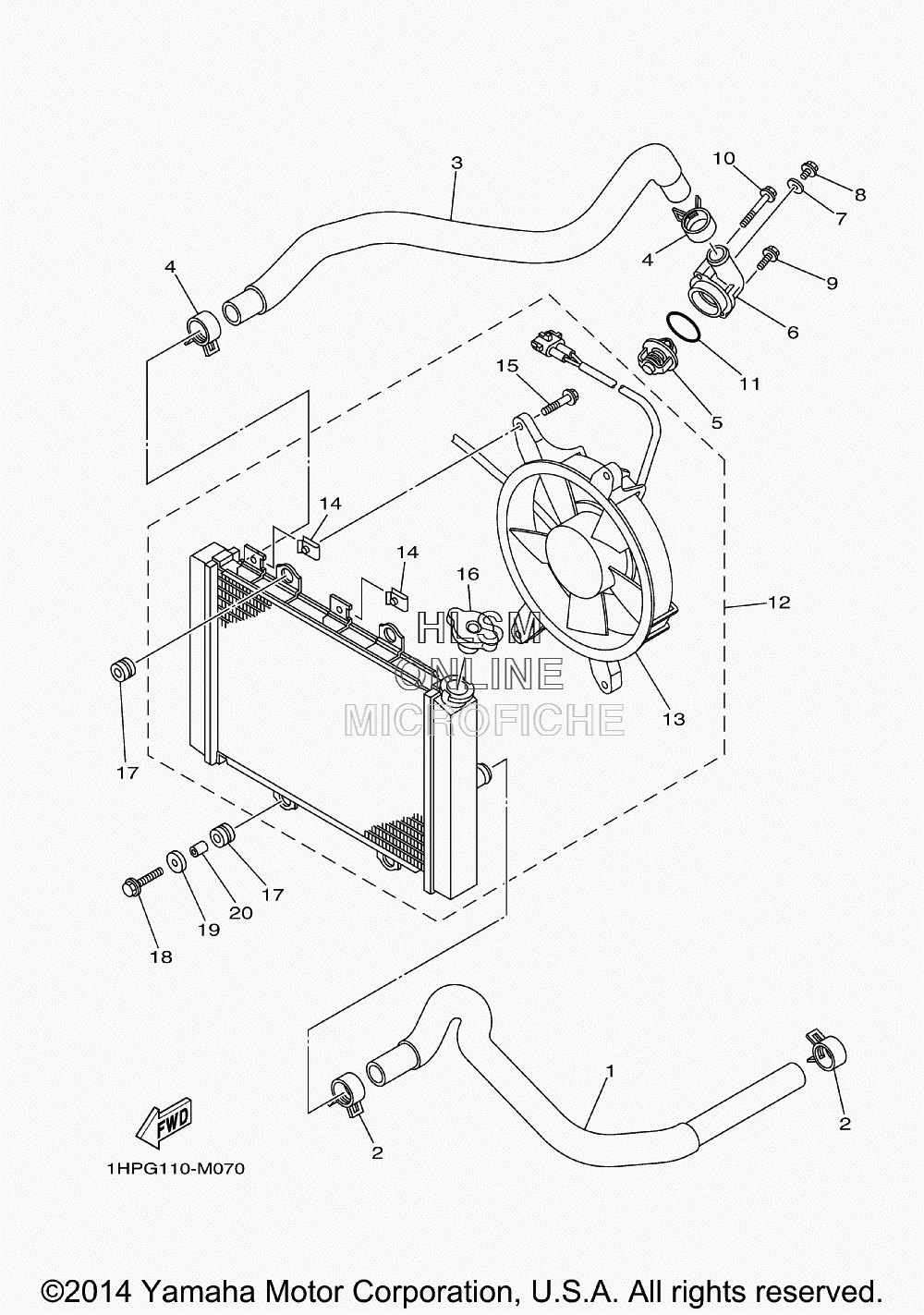

RADIATOR ASSY для Yamaha GRIZZLY 700 4WD - 2015 года выпуска
-
№АртикулНазвание
-
11HP-E2576-00-00 HOSE 1HOSE 1
-
290467-26189-00 CLIPCLIP
-
31HP-E2578-00-00 HOSE 3HOSE 3
-
490467-26189-00 CLIPCLIP
-
55VK-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
61S3-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
790430-06014-00 GASKETGASKET
-
895022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1095022-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1193210-41042-00 O-RINGO-RING
-
12B16-E2460-00-00 RADIATOR ASSYRADIATOR ASSY
-
13B16-E2405-00-00 ...BLOWER ASSY...BLOWER ASSY
-
141HP-E2535-00-00 ...NUT SPRING...NUT SPRING
-
151HP-E2675-00-00 ...BOLT, BLOWER HOLDING...BOLT, BLOWER HOLDING
-
161XD-E2462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
1790480-15235-00 GROMMETGROMMET
-
1895812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1990209-06012-00 WASHERWASHER
-
2090387-06113-00 COLLARCOLLAR
