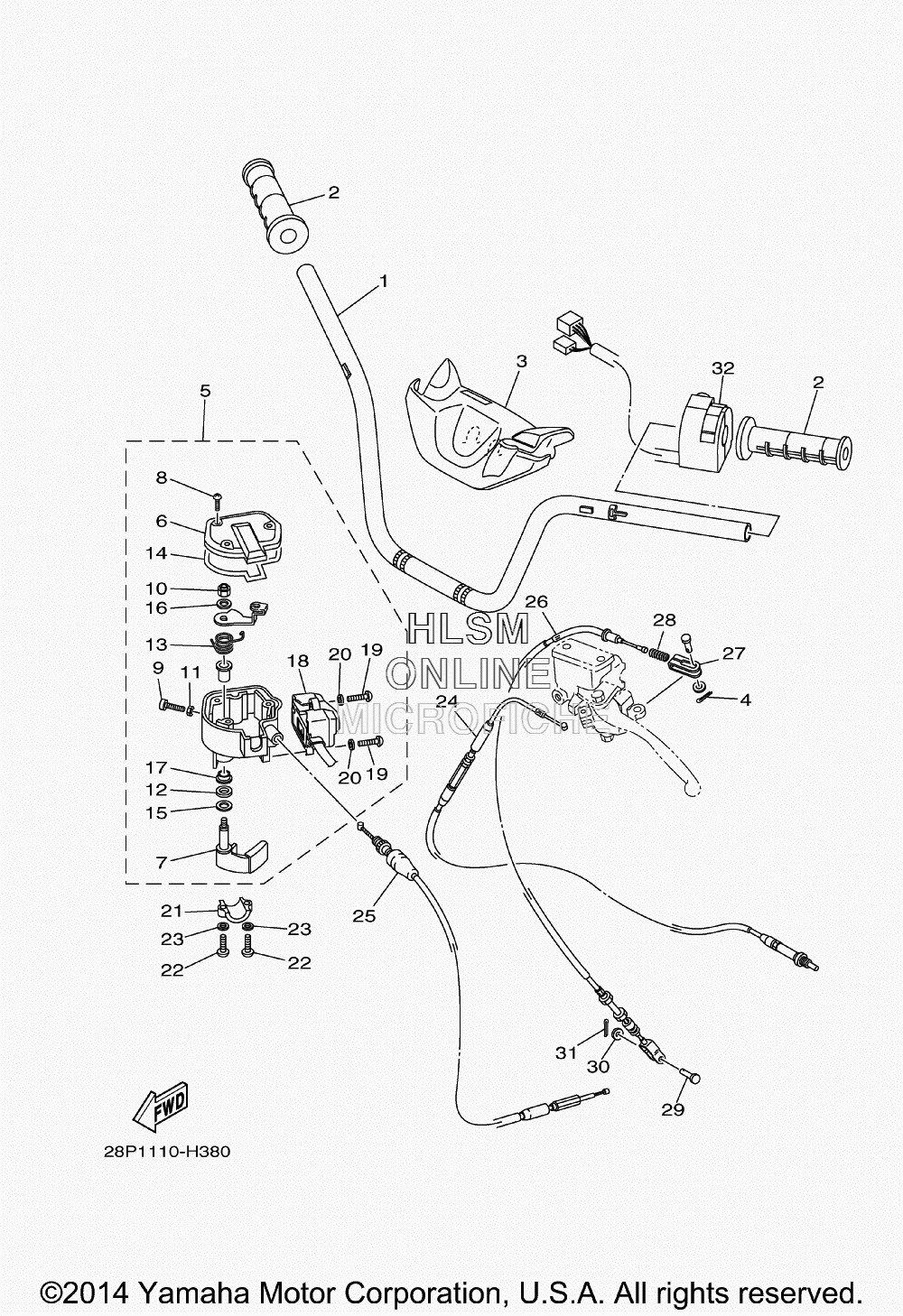

HANDLEBAR W/ CABLES для Yamaha GRIZZLY 700 EPS 4WD - 2015 года выпуска
-
№АртикулНазвание
-
11HP-F6111-00-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
31HP-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
491401-16012-00 PIN, COTTERPIN, COTTER
-
51HP-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
628P-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
728P-2625G-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
890149-04278-00 ...SCREW...SCREW
-
998507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1095602-05100-00 ...NUT, U...NUT, U
-
1195307-05700-00 ...NUT...NUT
-
1293104-09025-00 ...OIL SEAL...OIL SEAL
-
131NV-26304-00-00 ...SPRING...SPRING
-
1428P-2628G-00-00 ...GASKET...GASKET
-
151NV-26129-00-00 ...WASHER...WASHER
-
161NV-26398-00-00 ...WASHER...WASHER
-
171NV-2625K-00-00 ...COLLAR...COLLAR
-
181HP-83976-09-00 ...SWITCH, HANDLE 1...SWITCH, HANDLE 1
-
1998502-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2092902-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
211S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2298502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392902-05600-00 WASHER, PLATEWASHER, PLATE
-
243B4-2637F-10-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
253B4-26311-20-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
263B4-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
273B4-26347-00-00 JOINT, CABLEJOINT, CABLE
-
2890501-08665-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2990240-06076-00 PIN, CLEVISPIN, CLEVIS
-
3092907-06200-00 WASHERWASHER
-
3191401-20012-00 PIN, COTTERPIN, COTTER
-
3228P-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
