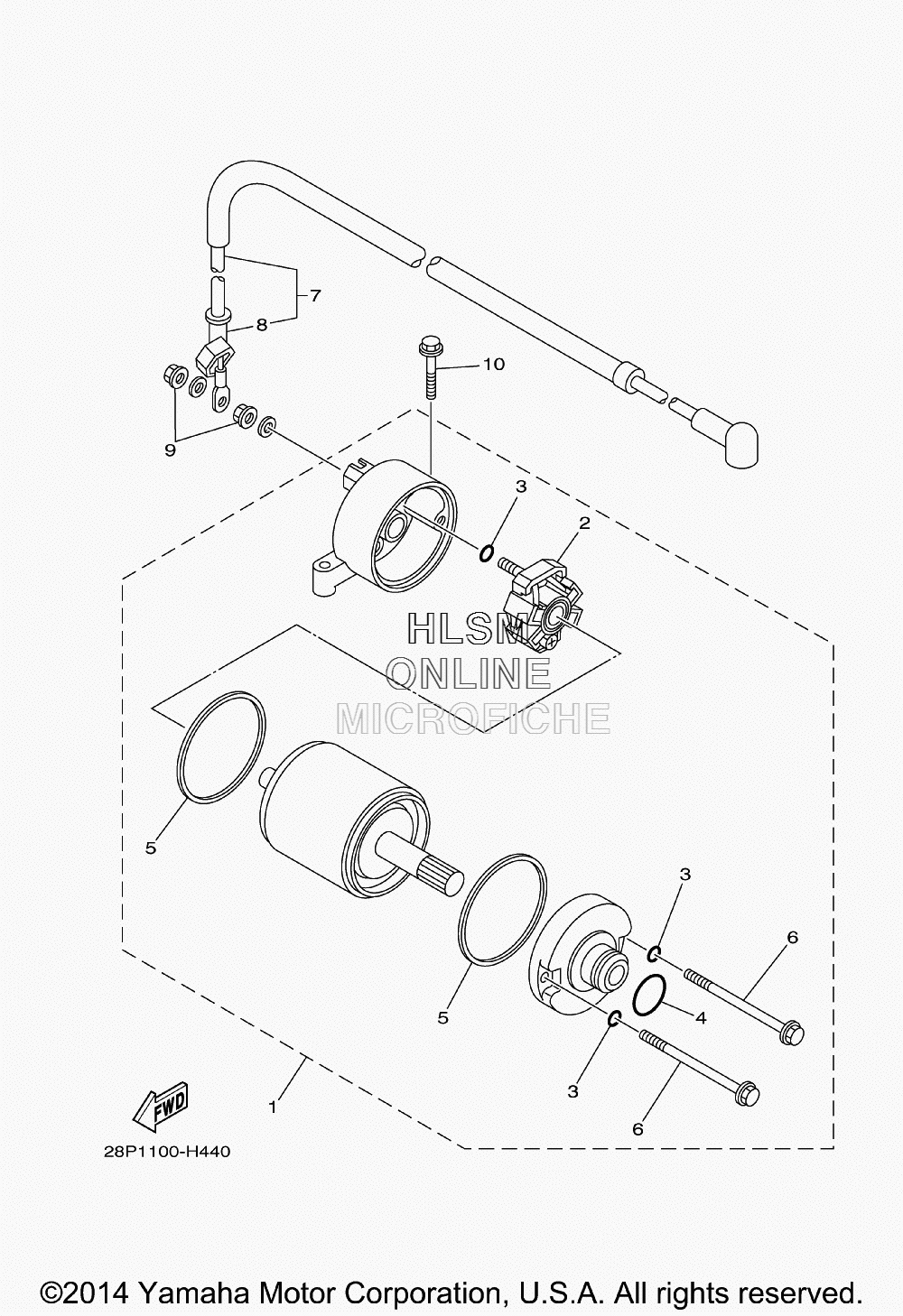

STARTING MOTOR для Yamaha GRIZZLY 700 EPS SE - 2015 года выпуска
-
№АртикулНазвание
-
128P-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24B5-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
33TB-81847-00-00 ...O-RING...O-RING
-
41FK-81847-00-00 ...O-RING...O-RING
-
511H-81844-00-00 ...GASKET...GASKET
-
628P-81826-00-00 ...BOLT...BOLT
-
728P-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
84B5-81871-00-00 ...CAP...CAP
-
94XV-8182A-00-00 NUTNUT
-
1095022-06030-00 BOLT, FLANGEBOLT, FLANGE
