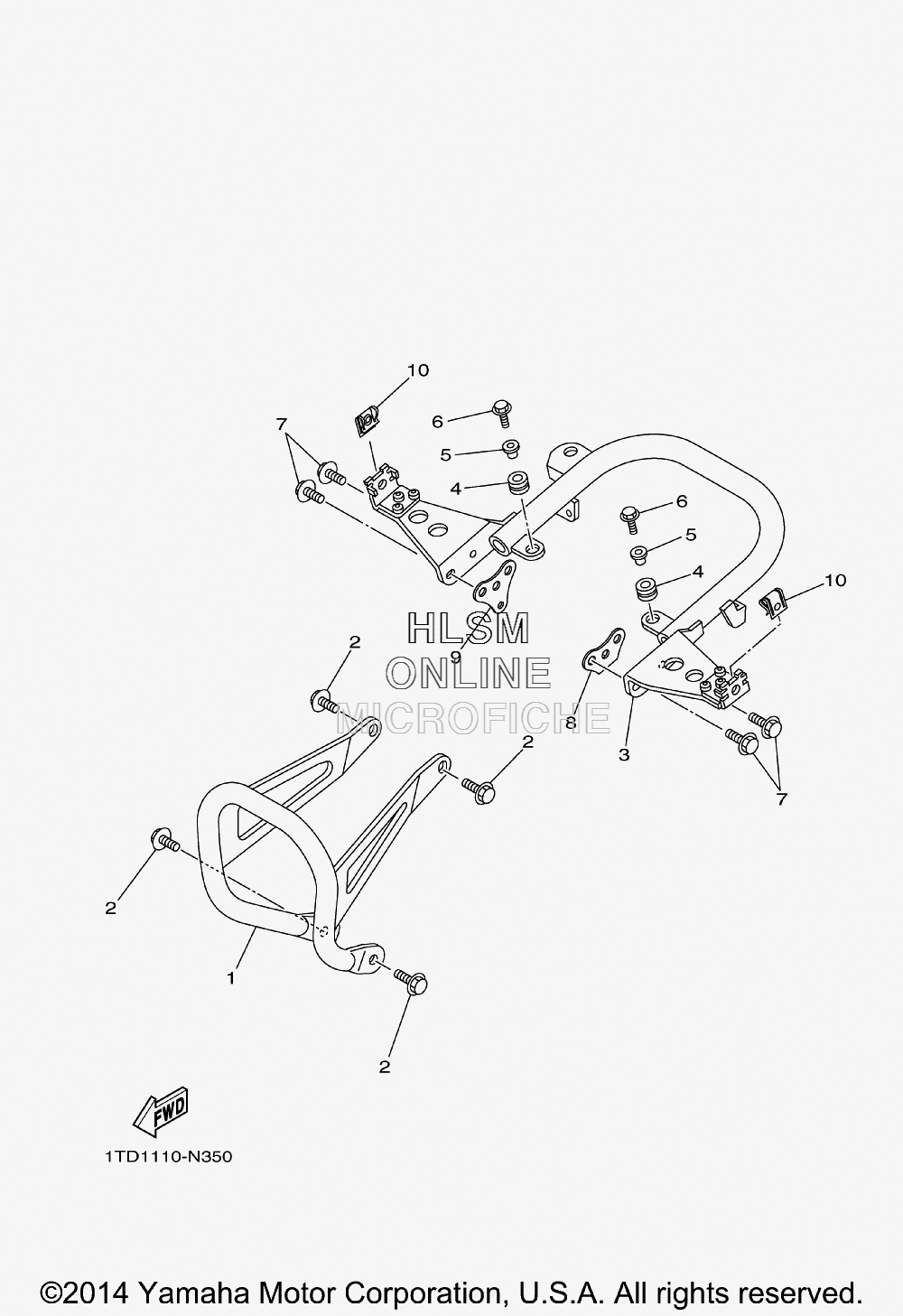

RACK AND BUMPER для Yamaha YFZ 450R (DEEP PURPLISH BLUE) - 2015 года выпуска
-
№АртикулНазвание
-
118P-2845N-20-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
318P-2845R-30-00 BAR, CARRY REARBAR, CARRY REAR
-
490480-10289-00 GROMMETGROMMET
-
590387-06063-00 COLLARCOLLAR
-
695812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
795812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
85TG-28215-00-00 WASHER, SPECIALWASHER, SPECIAL
-
918P-28215-00-00 WASHER, SPECIALWASHER, SPECIAL
-
104XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
