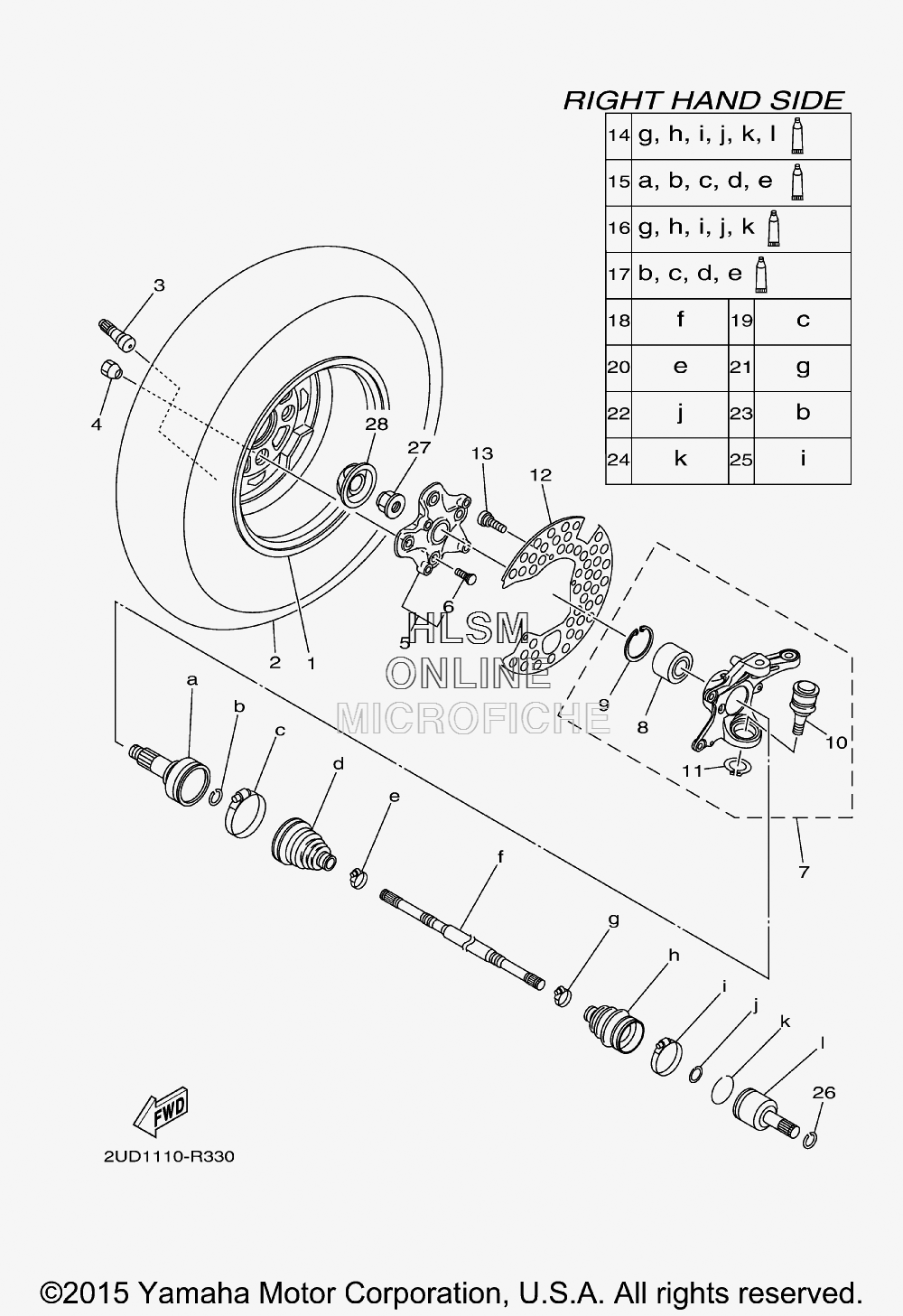

WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY для Yamaha GRIZZLY 4WD HUNTER - 2016 года выпуска
-
№АртикулНазвание
-
1B16-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
294108-12822-00 TIRE (AT26X8-12 MU05Y**TL) (MAXXIS)TIRE (AT26X8-12 MU05Y**TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490179-10020-00 NUTNUT
-
5B16-F510D-00-00 HUB ASSY 2HUB ASSY 2
-
690114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
72BG-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
103B4-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
1199009-30400-00 ...CIRCLIP...CIRCLIP
-
121HP-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
1398902-06010-00 SCREW, BINDSCREW, BIND
-
142UD-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
152UD-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
162UD-2510H-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
172UD-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
182UD-2518E-00-00 SHAFTSHAFT
-
192UD-2511H-00-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
202UD-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
212UD-2512G-10-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
223B4-2512J-00-00 SNAP RINGSNAP RING
-
232UD-2512H-00-00 CIRCLIPCIRCLIP
-
243B4-25182-00-00 CIRCLIPCIRCLIP
-
252UD-2511H-10-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
2693450-22119-00 CIRCLIPCIRCLIP
-
2790179-20016-00 NUTNUT
-
281HP-F512A-00-00 CAP, WHEELCAP, WHEEL
