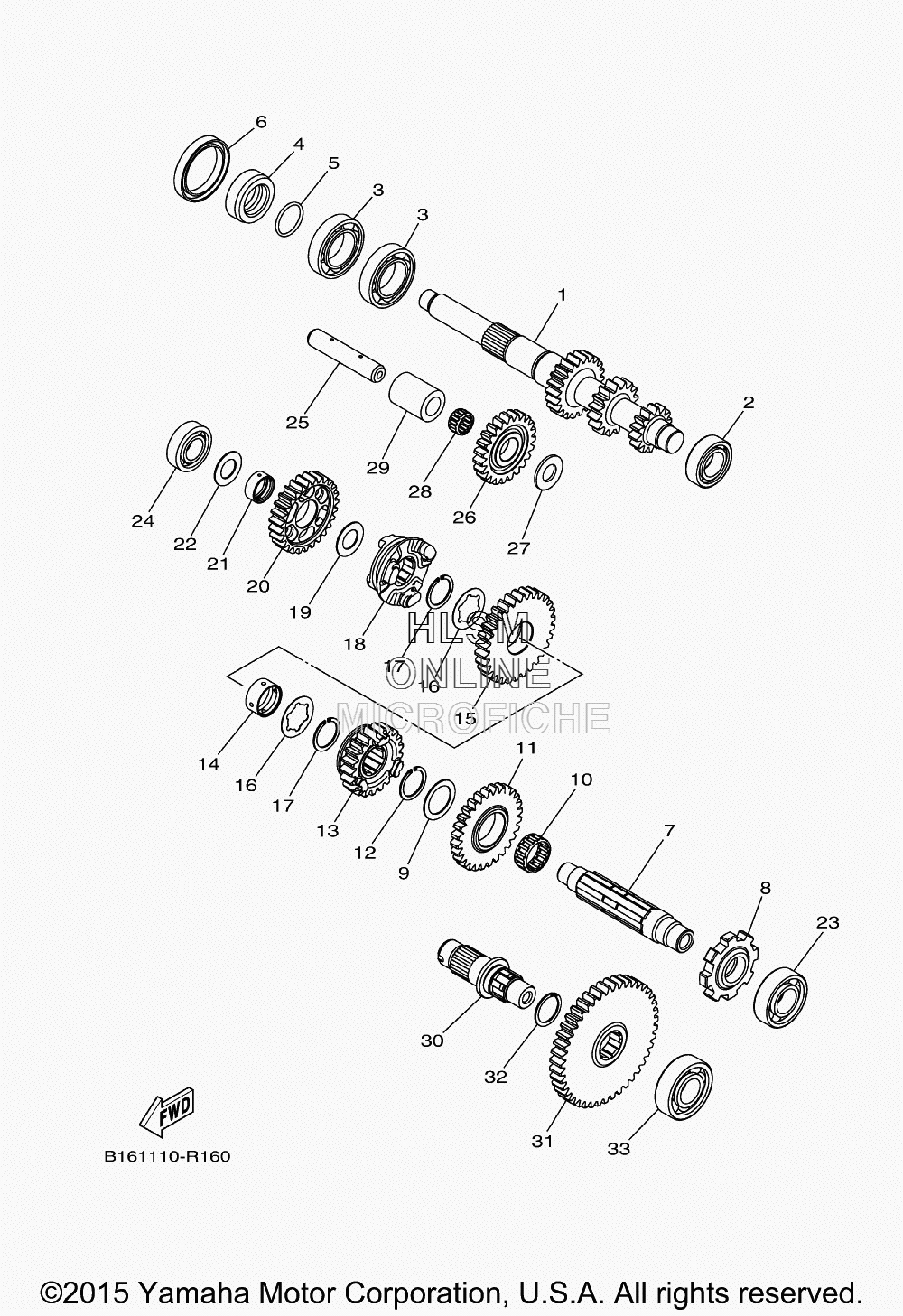

TRANSMISSION для Yamaha GRIZZLY 4WD - 2016 года выпуска
-
№АртикулНазвание
-
1B16-E7681-00-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
22MB-E7156-00-00 BEARING 1BEARING 1
-
32MB-E7166-00-00 BEARING 2BEARING 2
-
42MB-E7158-00-00 COLLAR 1COLLAR 1
-
52MB-E76F5-00-00 O-RINGO-RING
-
62MB-E76F3-00-00 OIL SEALOIL SEAL
-
72MB-E7421-00-00 AXLE, DRIVEAXLE, DRIVE
-
8B16-E7473-00-00 STOPPERSTOPPER
-
92MB-E7116-00-00 WASHER, GEAR HOLD 1WASHER, GEAR HOLD 1
-
102MB-E1428-00-00 BEARING 1BEARING 1
-
112MB-E7253-00-00 GEAR, REVERSE WHEEL 2 (28T)GEAR, REVERSE WHEEL 2 (28T)
-
122MB-E662A-00-00 CIRCLIPCIRCLIP
-
132MB-E7582-00-00 GEAR, MIDDLE DRIVE (21T)GEAR, MIDDLE DRIVE (21T)
-
142MB-E7258-00-00 COLLAR 1COLLAR 1
-
152MB-E7233-00-00 GEAR, LOW WHEEL (31T)GEAR, LOW WHEEL (31T)
-
162MB-E7126-00-00 WASHER, GEAR HOLD 2WASHER, GEAR HOLD 2
-
172MB-E662A-00-00 CIRCLIPCIRCLIP
-
18B16-E7285-00-00 CLUTCH, DOGCLUTCH, DOG
-
192MB-E7136-00-00 WASHER, GEAR HOLD 3WASHER, GEAR HOLD 3
-
20B16-E7223-00-00 GEAR, HIGH WHEEL (27T)GEAR, HIGH WHEEL (27T)
-
212MB-E7268-00-00 COLLAR 2COLLAR 2
-
222MB-E7154-00-00 WASHER, GEAR HOLDWASHER, GEAR HOLD
-
232MB-E1429-00-00 BEARING 2BEARING 2
-
242MB-E142A-00-00 BEARINGBEARING
-
252MB-E7432-00-00 AXLE, IDLEAXLE, IDLE
-
262MB-E7243-00-00 GEAR, REVERSE WHEEL 1 (23T)GEAR, REVERSE WHEEL 1 (23T)
-
272MB-E7059-00-00 WASHER,2WASHER,2
-
282MB-E142B-00-00 BEARING 4BEARING 4
-
292MB-E7278-00-00 COLLARCOLLAR
-
302MB-E7523-00-00 SHAFTSHAFT
-
312MB-E7583-00-00 GEAR, MIDDLE DRIVEN (43T)GEAR, MIDDLE DRIVEN (43T)
-
322MB-E662A-00-00 CIRCLIPCIRCLIP
-
332MB-E4814-00-00 BEARINGBEARING
