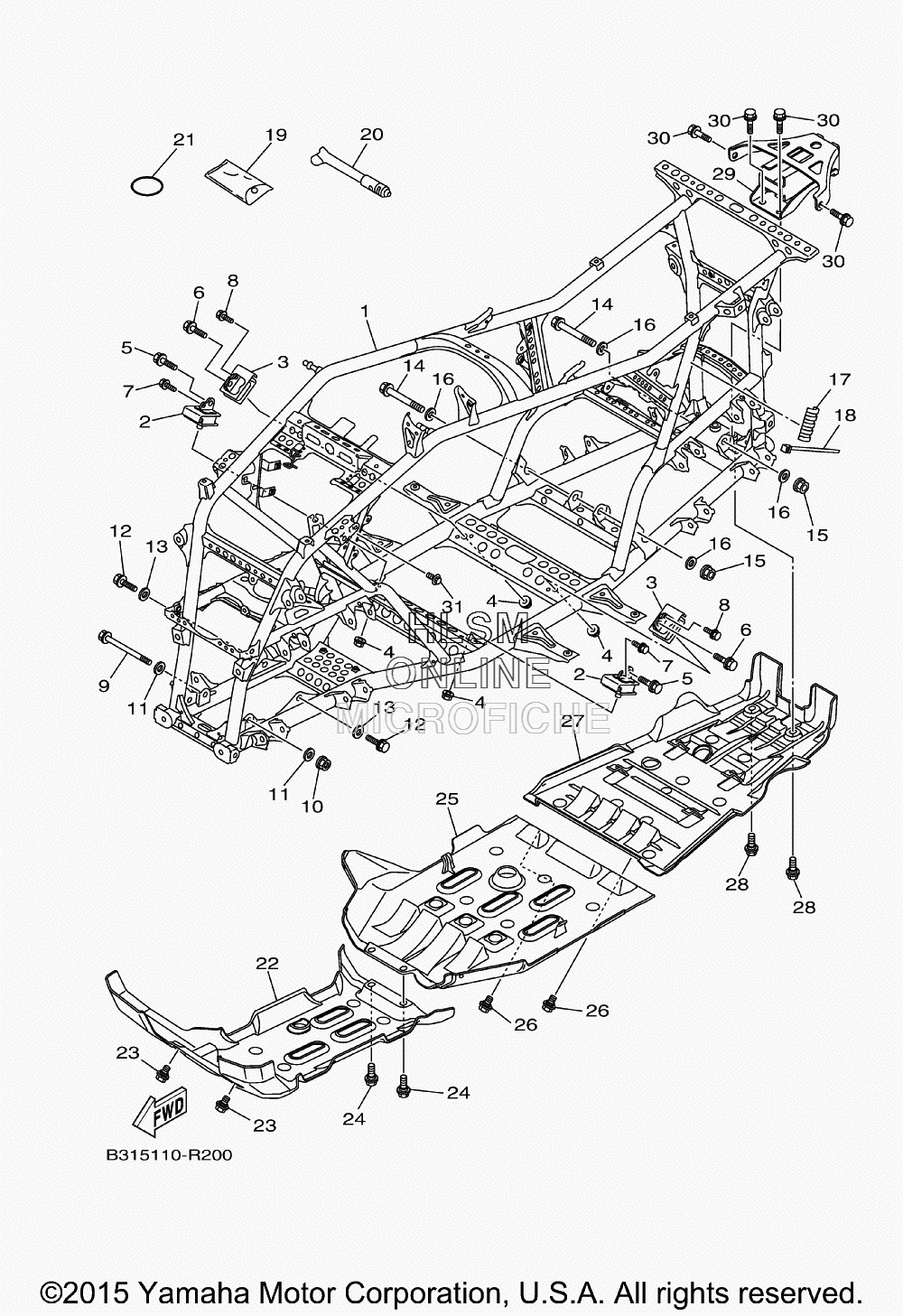

FRAME для Yamaha GRIZZLY 700 EPS 4WD LTD EDITION - 2016 года выпуска
-
№АртикулНазвание
-
12UD-F1110-00-00 FRAME COMP.FRAME COMP.
-
2B16-F1485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
3B16-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
52MB-E3574-00-00 BOLT 2BOLT 2
-
695812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
72MB-E5481-A0-00 BOLT 1BOLT 1
-
890105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
990105-10219-00 BOLT, FLANGEBOLT, FLANGE
-
1090185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190201-10035-00 WASHER, PLATEWASHER, PLATE
-
1290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-10035-00 WASHER, PLATEWASHER, PLATE
-
1490105-10238-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690201-10035-00 WASHER, PLATEWASHER, PLATE
-
173B4-2113B-01-00 DAMPERDAMPER
-
1890464-40825-00 CLAMPCLAMP
-
192BG-F8100-00-00 TOOL KITTOOL KIT
-
201NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
2193210-64297-00 O-RINGO-RING
-
22B16-F147A-00-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
2390109-06202-00 BOLTBOLT
-
2490109-06214-00 BOLTBOLT
-
251HP-F147E-01-00 GUARD, ENGINE 2GUARD, ENGINE 2
-
2690109-06214-00 BOLTBOLT
-
27B16-F147F-00-00 GUARD, ENGINE 3GUARD, ENGINE 3
-
2890109-06202-00 BOLTBOLT
-
292SM-F3802-00-00 REAR HITCH ASSYREAR HITCH ASSY
-
3095812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
3195812-06012-00 BOLT, FLANGEBOLT, FLANGE
