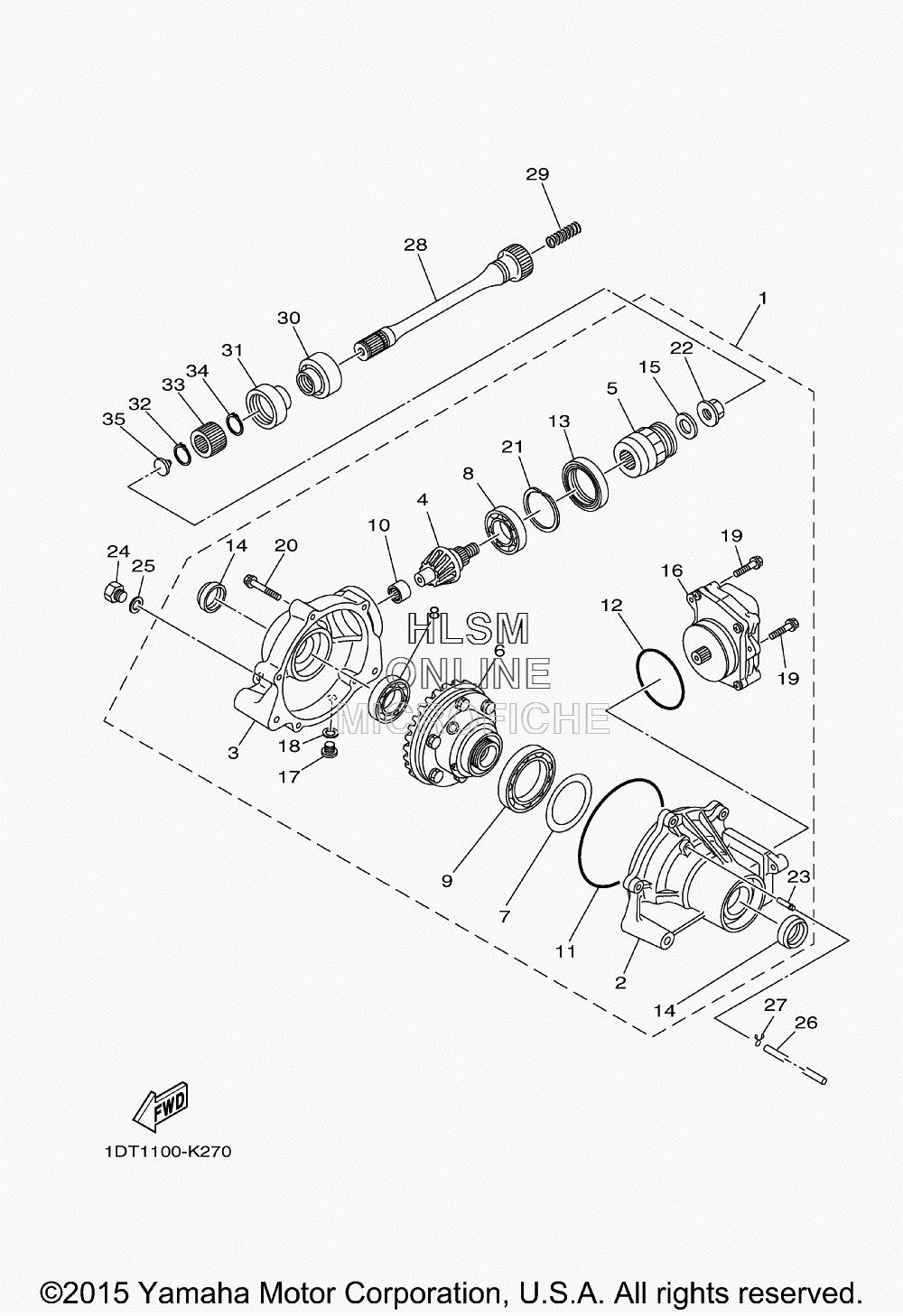

DIFFERENTIAL - FRONT для Yamaha GRIZZLY EPS 4WD HUNTER - 2016 года выпуска
-
№АртикулНазвание
-
11HP-46160-00-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
23B4-46162-01-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
33B4-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
43B4-46141-00-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
53B4-67839-10-00 ...CUPLING...CUPLING
-
63B4-46470-02-00 ...LIMITED SLIP DIFF. ASSY...LIMITED SLIP DIFF. ASSY
-
73B4-46117-00-00 ...SHIM, RING GEAR (0.1T) (OPT)...SHIM, RING GEAR (0.1T) (OPT)
-
73B4-46117-20-00 ...SHIM, RING GEAR (0.3T) (OPT)...SHIM, RING GEAR (0.3T) (OPT)
-
73B4-46117-30-00 ...SHIM, RING GEAR (0.4T) (OPT)...SHIM, RING GEAR (0.4T) (OPT)
-
73B4-46117-10-00 ...SHIM, RING GEAR (0.2T) (OPT)...SHIM, RING GEAR (0.2T) (OPT)
-
893306-00613-00 ...BEARING...BEARING
-
93B4-46164-00-00 ...BEARING 1...BEARING 1
-
103B4-46166-00-00 ...BEARING 3...BEARING 3
-
113B4-46134-00-00 ...O-RING 1...O-RING 1
-
123B4-46135-00-00 ...O-RING 2...O-RING 2
-
1393105-46001-00 ...OIL SEAL...OIL SEAL
-
143B4-46163-00-00 ...SEAL, OIL 1...SEAL, OIL 1
-
153B4-47359-00-00 ...WASHER...WASHER
-
161HP-4616A-00-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
1790340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
1890430-10003-00 ...GASKET...GASKET
-
1995812-06014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2095812-08040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
213B4-46142-00-00 ...RING,HOLE SNAP 1...RING,HOLE SNAP 1
-
224WV-46145-10-00 ...NUT 1...NUT 1
-
235GH-46293-00-00 ...TUBE...TUBE
-
2490340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
25214-11198-01-00 GASKETGASKET
-
2690445-070F1-00 HOSE (L950)HOSE (L950)
-
2790467-07029-00 CLIPCLIP
-
281HP-G6173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
2990501-20361-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
305KM-46137-00-00 SEAL 2SEAL 2
-
315KM-46136-00-00 SEAL 1SEAL 1
-
3299009-19400-00 CIRCLIPCIRCLIP
-
335KM-46126-00-00 COUPLINGCOUPLING
-
3493410-22039-00 CIRCLIPCIRCLIP
-
355KM-46559-00-00 DAMPERDAMPER
