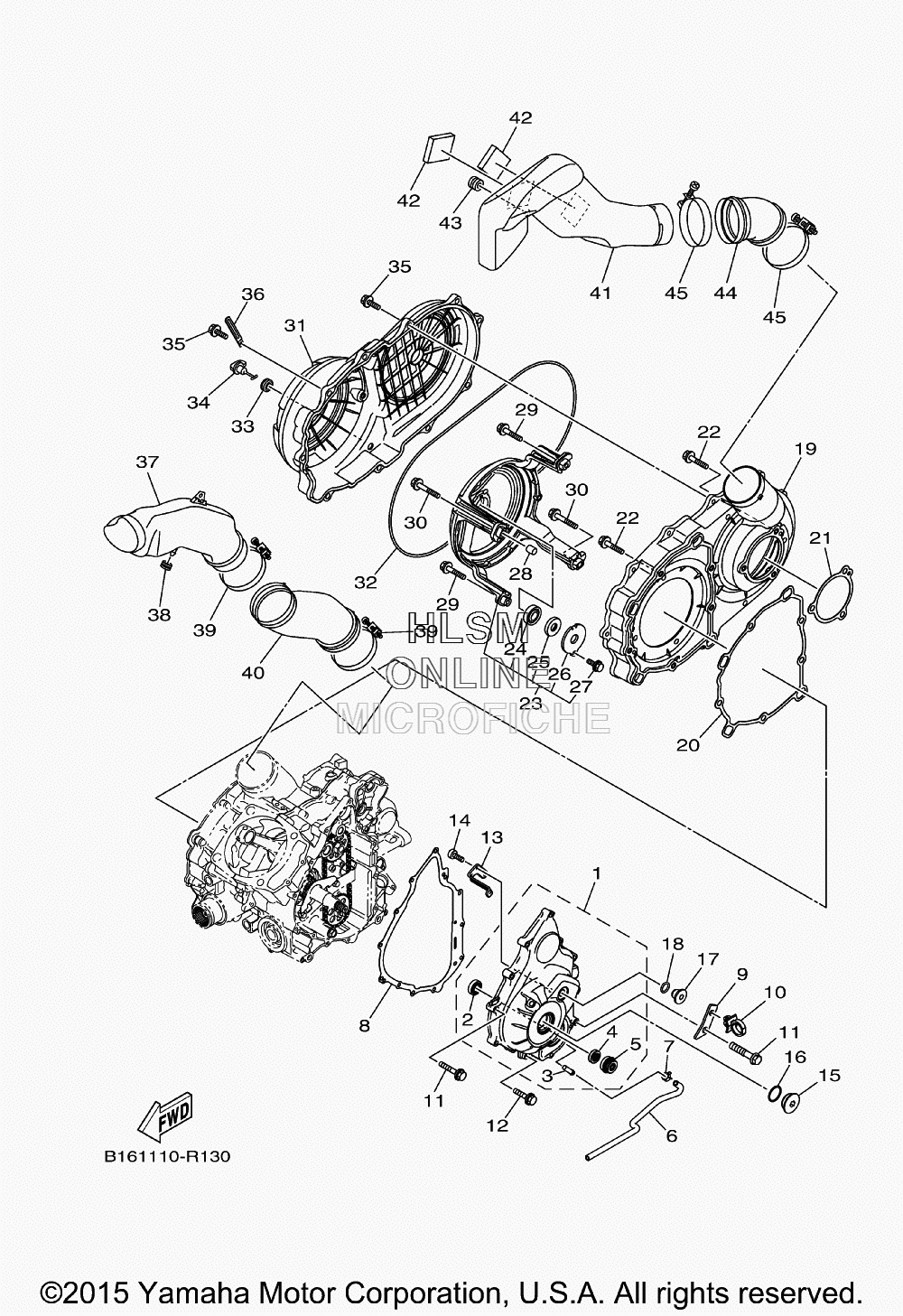

CRANKCASE COVER для Yamaha KODIAK 700 EPS 4WD HUNTER - 2016 года выпуска
-
№АртикулНазвание
-
12MB-E5409-00-00 CRANKCASE COVER ASSYCRANKCASE COVER ASSY
-
22MB-E5596-00-00 ...BEARING...BEARING
-
32MB-E243K-00-00 ...PIPE, DRAIN...PIPE, DRAIN
-
42MB-E511A-00-00 ...OIL SEAL...OIL SEAL
-
52MB-E2438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
62MB-E244H-00-00 HOSE 5HOSE 5
-
72MB-E5179-00-00 CLIPCLIP
-
82MB-E5451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
9B16-E5191-00-00 PLATEPLATE
-
10B16-H1128-00-00 CLAMPCLAMP
-
112MB-E5481-50-00 BOLT 1BOLT 1
-
122MB-E5481-20-00 BOLT 1BOLT 1
-
132MB-E5113-00-00 PLATEPLATE
-
142MB-E5187-00-00 BOLTBOLT
-
152MB-E5168-00-00 PLUG, BLIND 2PLUG, BLIND 2
-
162MB-E511C-00-00 O-RINGO-RING
-
172MB-E5169-00-00 PLUG, BLIND 2PLUG, BLIND 2
-
182MB-E4G97-00-00 O-RINGO-RING
-
19B16-E5421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
202MB-E5453-00-00 GASKETGASKET
-
212MB-E5315-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
222MB-E5482-10-00 BOLT 2BOLT 2
-
232MB-E5480-00-00 HOUSING ASSYHOUSING ASSY
-
242MB-E5693-00-00 ...BEARING...BEARING
-
252MB-E4005-00-00 ...OIL SEAL...OIL SEAL
-
262MB-E5381-00-00 ...PLATE, BEARING COVER...PLATE, BEARING COVER
-
272MB-E5482-00-00 ...BOLT 2...BOLT 2
-
282MB-E5181-00-00 PIN, DOWELPIN, DOWEL
-
292MB-E5482-10-00 BOLT 2BOLT 2
-
302MB-E5482-30-00 BOLT 2BOLT 2
-
31B16-E5431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
322MB-E5379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
332MB-E5365-00-00 GROMMETGROMMET
-
342MB-E5351-00-00 PLUG, DRAINPLUG, DRAIN
-
352MB-E5768-00-00 BOLTBOLT
-
36B16-E5484-00-00 CLAMP 2CLAMP 2
-
371HP-E5471-00-00 DUCT, AIRDUCT, AIR
-
3890480-13567-00 GROMMETGROMMET
-
3990460-85135-00 CLAMP, HOSECLAMP, HOSE
-
40B16-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
411HP-E5473-00-00 DUCT, AIRDUCT, AIR
-
421S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
4390480-13398-00 GROMMETGROMMET
-
441HP-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
4590460-85135-00 CLAMP, HOSECLAMP, HOSE
