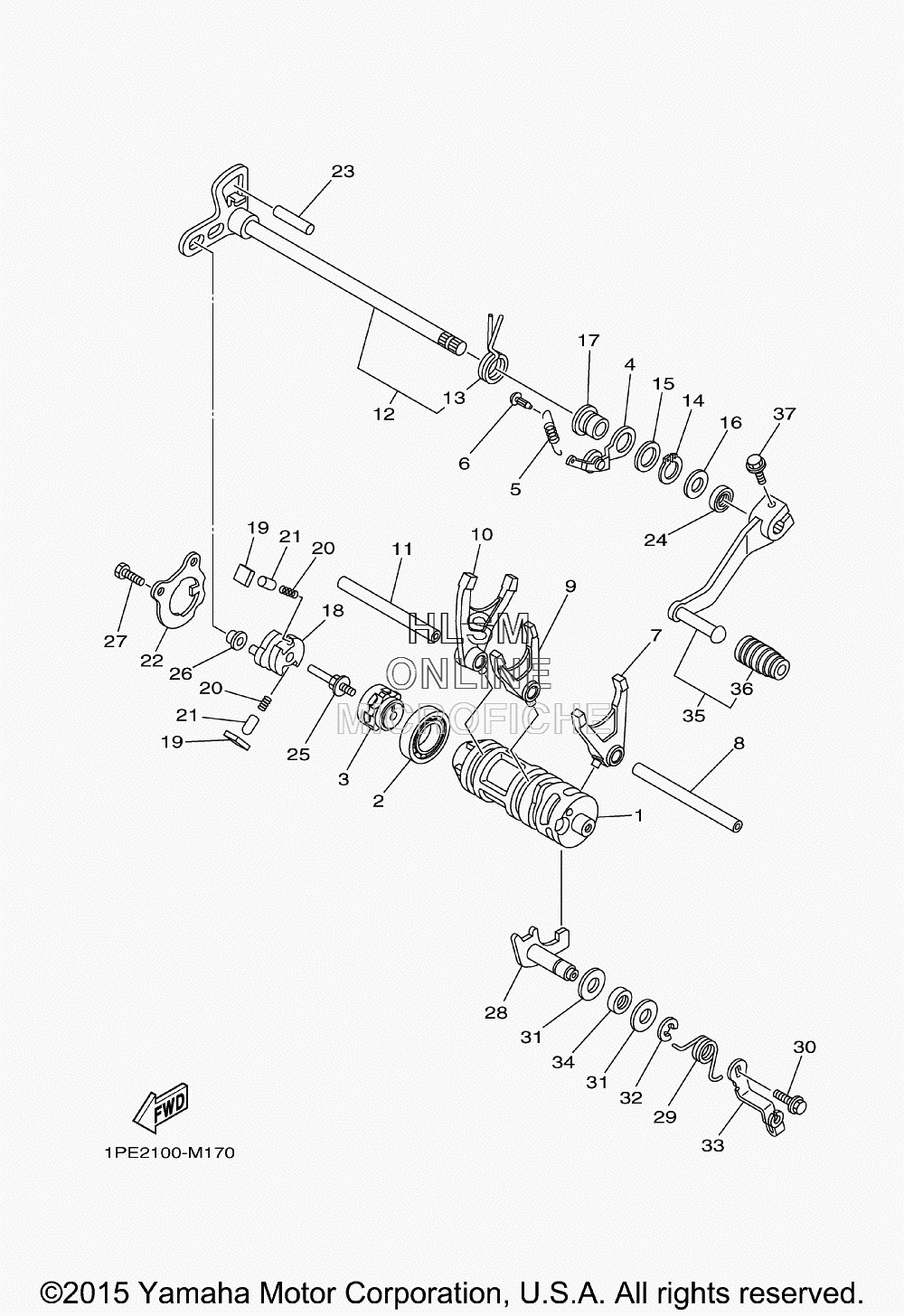

SHIFT CAM W/ FORK для Yamaha RAPTOR 700 - 2016 года выпуска
-
№АртикулНазвание
-
11PE-18541-00-00 CAM, SHIFTCAM, SHIFT
-
293306-90509-00 BEARINGBEARING
-
32S2-18185-00-00 SEGMENTSEGMENT
-
41S3-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
55JW-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
6132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
71PE-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
81PE-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
91PE-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
101PE-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
111PE-18534-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
121S3-18101-10-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1390508-35007-00 ...SPRING, TORSION...SPRING, TORSION
-
1499009-17400-00 CIRCLIPCIRCLIP
-
1590201-177G4-00 WASHER, PLATEWASHER, PLATE
-
1690201-12040-00 WASHER, PLATEWASHER, PLATE
-
175VK-18699-00-00 BOSS 1BOSS 1
-
181S3-18122-01-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
193XJ-18182-00-00 PAWL, SHIFTERPAWL, SHIFTER
-
2090501-052G5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
213XJ-18184-00-00 PIN, PAWLPIN, PAWL
-
221S3-18172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
2393608-30002-00 PIN, DOWELPIN, DOWEL
-
2493102-12224-00 OIL SEALOIL SEAL
-
253XJ-18173-10-00 PIN, SHIFTPIN, SHIFT
-
263XJ-18178-00-00 ROLLER, SHIFT LEVERROLLER, SHIFT LEVER
-
2790101-06664-00 BOLTBOLT
-
281S3-18380-00-00 SHIFTER BRACKET ASSYSHIFTER BRACKET ASSY
-
295LP-18337-01-00 SPRINGSPRING
-
3095812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3190201-12575-00 WASHER, PLATEWASHER, PLATE
-
3299002-10600-00 CIRCLIPCIRCLIP
-
335LP-18431-00-00 BRACKET, SHIFTERBRACKET, SHIFTER
-
3493102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
351PE-E8110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
361PE-E8113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
3790105-06142-00 BOLT, FLANGEBOLT, FLANGE
