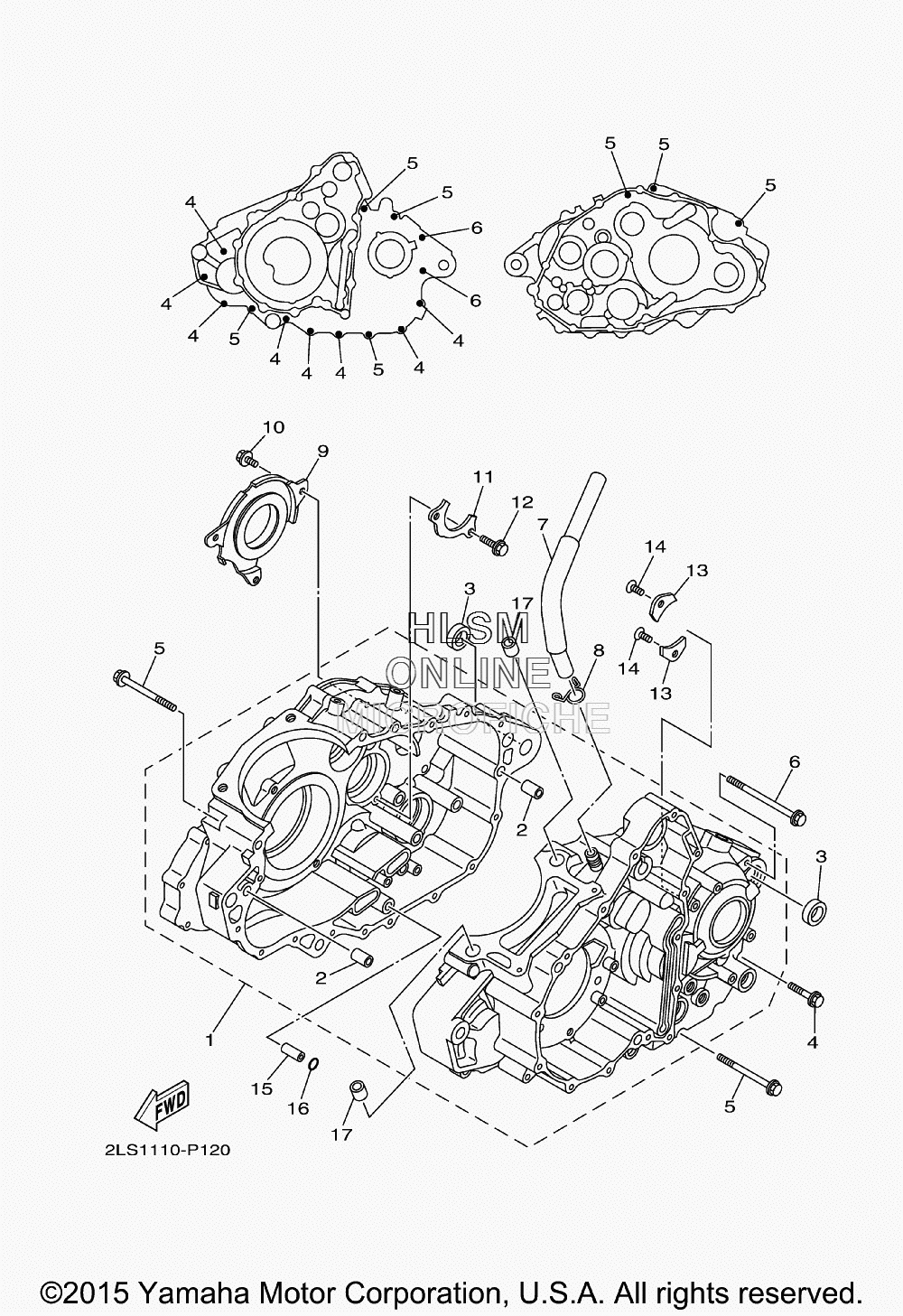

CRANKCASE для Yamaha RAPTOR 700R - 2016 года выпуска
-
№АртикулНазвание
-
11PE-15100-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
390387-17009-00 COLLARCOLLAR
-
495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06070-00 BOLT, FLANGEBOLT, FLANGE
-
695022-06090-00 BOLT, FLANGEBOLT, FLANGE
-
72LS-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
890467-140A4-00 CLIPCLIP
-
91S3-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
1090105-06081-00 BOLT, FLANGEBOLT, FLANGE
-
111S3-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1290105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
134JT-15381-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1490149-06074-00 SCREWSCREW
-
1599530-08016-00 PIN, DOWELPIN, DOWEL
-
1693210-07135-00 O-RINGO-RING
-
1799530-14016-00 PIN, DOWELPIN, DOWEL
