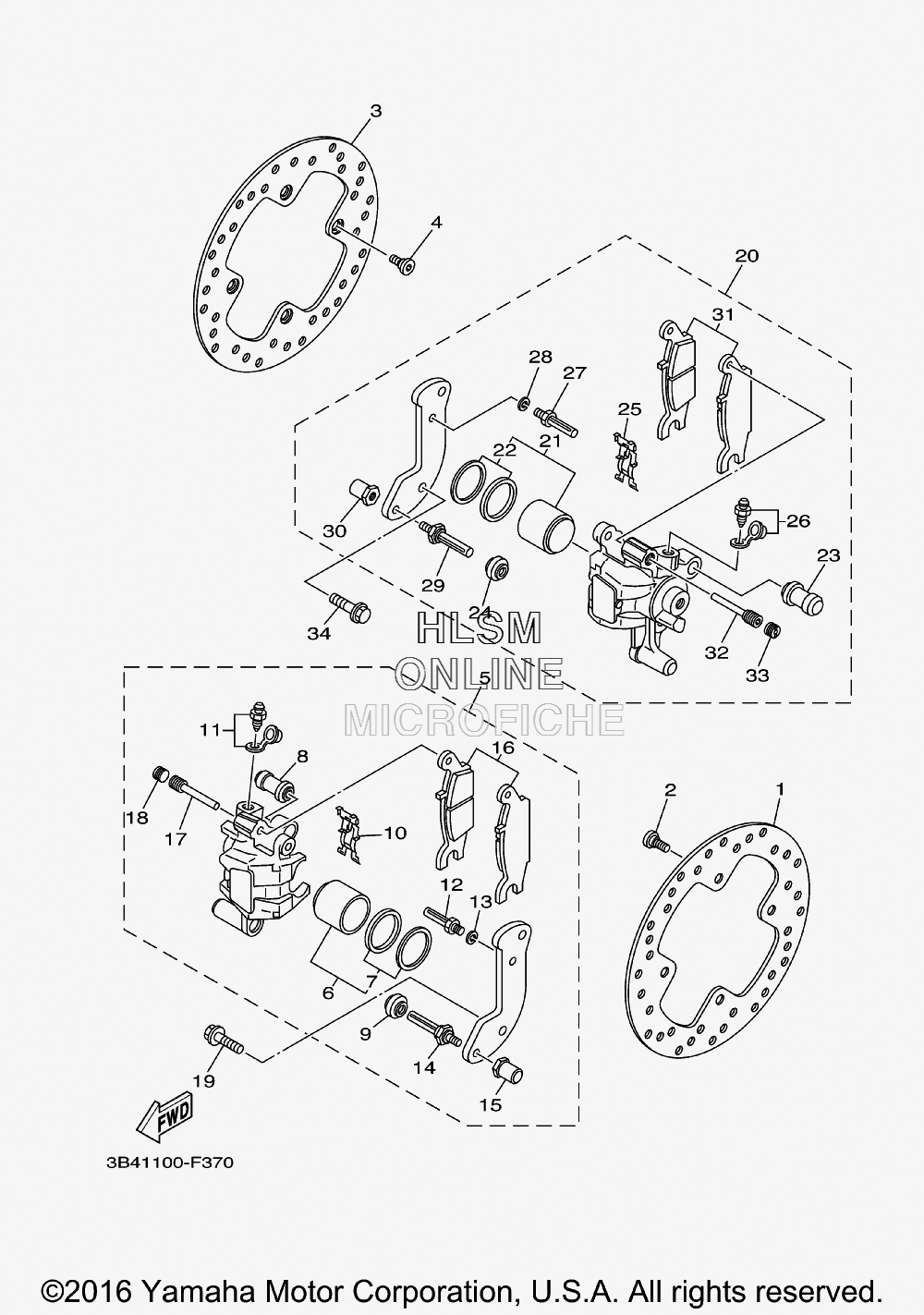

BRAKE - REAR CALIPER для Yamaha GRIZZLY 700 EPS 4WD LTD [YFM70GPLHR] - 2017 года выпуска
-
№АртикулНазвание
-
11HP-F582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
290109-08101-00 BOLTBOLT
-
31HP-F582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
490109-08101-00 BOLTBOLT
-
53B4-2580V-11-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
63B4-W0057-20-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73B4-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
81UY-25937-51-00 ...BOOT 2...BOOT 2
-
93JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
105DH-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
111UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
121UY-25926-51-00 ...BOLT...BOLT
-
131UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
143JD-25926-00-00 ...BOLT...BOLT
-
153JD-25961-00-00 ...NUT...NUT
-
163B4-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
173GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
185DH-25916-00-00 ...PLUG...PLUG
-
1990105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
203B4-2580W-11-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
213B4-W0057-20-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
223B4-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
231UY-25937-51-00 ...BOOT 2...BOOT 2
-
243JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
255DH-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
261UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
271UY-25926-51-00 ...BOLT...BOLT
-
281UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
293JD-25926-00-00 ...BOLT...BOLT
-
303JD-25961-00-00 ...NUT...NUT
-
313B4-W0046-10-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
323GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
335DH-25916-00-00 ...PLUG...PLUG
-
3490105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
11HP-F582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
290109-08101-00 BOLTBOLT
-
31HP-F582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
490109-08101-00 BOLTBOLT
-
53B4-2580V-11-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
63B4-W0057-20-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73B4-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
81UY-25937-51-00 ...BOOT 2...BOOT 2
-
93JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
105DH-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
111UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
121UY-25926-51-00 ...BOLT...BOLT
-
131UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
143JD-25926-00-00 ...BOLT...BOLT
-
153JD-25961-00-00 ...NUT...NUT
-
163B4-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
173GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
185DH-25916-00-00 ...PLUG...PLUG
-
1990105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
203B4-2580W-11-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
213B4-W0057-20-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
223B4-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
231UY-25937-51-00 ...BOOT 2...BOOT 2
-
243JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
255DH-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
261UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
271UY-25926-51-00 ...BOLT...BOLT
-
281UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
293JD-25926-00-00 ...BOLT...BOLT
-
303JD-25961-00-00 ...NUT...NUT
-
313B4-W0046-10-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
323GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
335DH-25916-00-00 ...PLUG...PLUG
-
3490105-08161-00 BOLT, FLANGEBOLT, FLANGE
